Technical Specifications
Product Overview

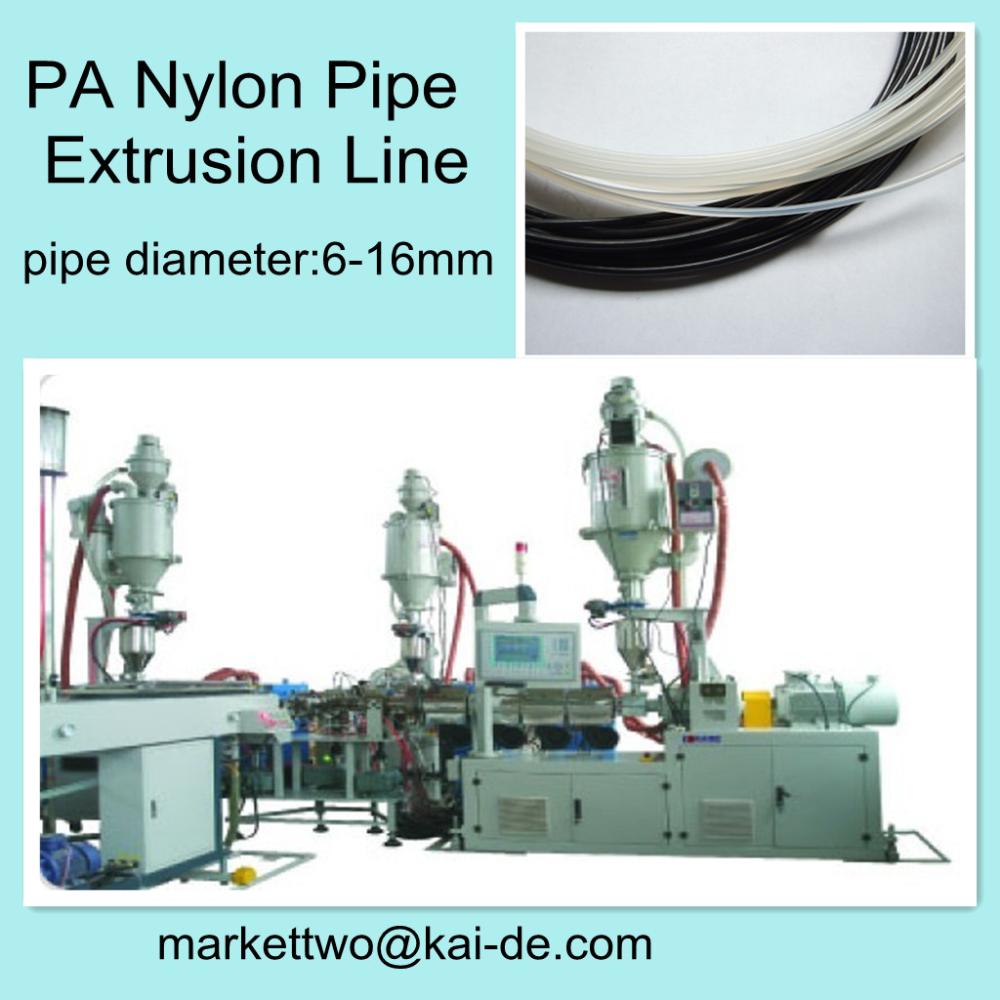

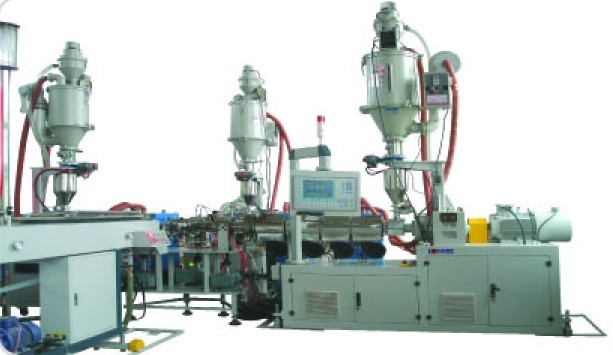

Advanced PA12 Extrusion Line
This high-efficiency production line is engineered for the manufacturing of 3-layer PA nylon alloy composite pipes. It integrates advanced control, measurement, and sensor systems to ensure consistent output, reliable bonding, and a high-quality surface finish. Designed to replace imported equipment, this localized solution supports high-speed, dustless production for demanding industrial applications.
Technical Specifications
- Pipe Diameter Range
- 6 mm
- Max Pipe Diameter
- 16 mm
Production Components
Line Components
- Outer & Inner Layer Extruder
- Hot Glue Extruder
- Auto Loader & Hot Air Dryer
- Measuring Feeding System
- PA Material Dehumidifier
- High-Temperature Melt Measuring Pump
- Three-layer Composite PA Die Head
- Vacuum Calibrating System
- Cooling Flume
- Haul-off Machine
- Cutting Machine
- Double Working Position Coiler
- PLC Computer System
Key Features
Performance Highlights
High-Speed Precision ExtrusionDustless CuttingMulti-Wedge Flat Belt PullingMelt Pressure MonitoringAutomated Control System
Applications
- Typical Applications
- High-Pressure PipingCable Mechanical PartsAviation EquipmentAutomotive WiringTelecommunications
