P6 Outdoor LED Advertising Screen
The P6 outdoor advertising LED screen delivers clear images with its 6mm pixel pitch, even at a distance. Its weatherproof cabinet and high-brightness LEDs ensure reliable operation and excellent visibility in diverse conditions.
Technical Specifications
Overview
High-Performance Outdoor Display

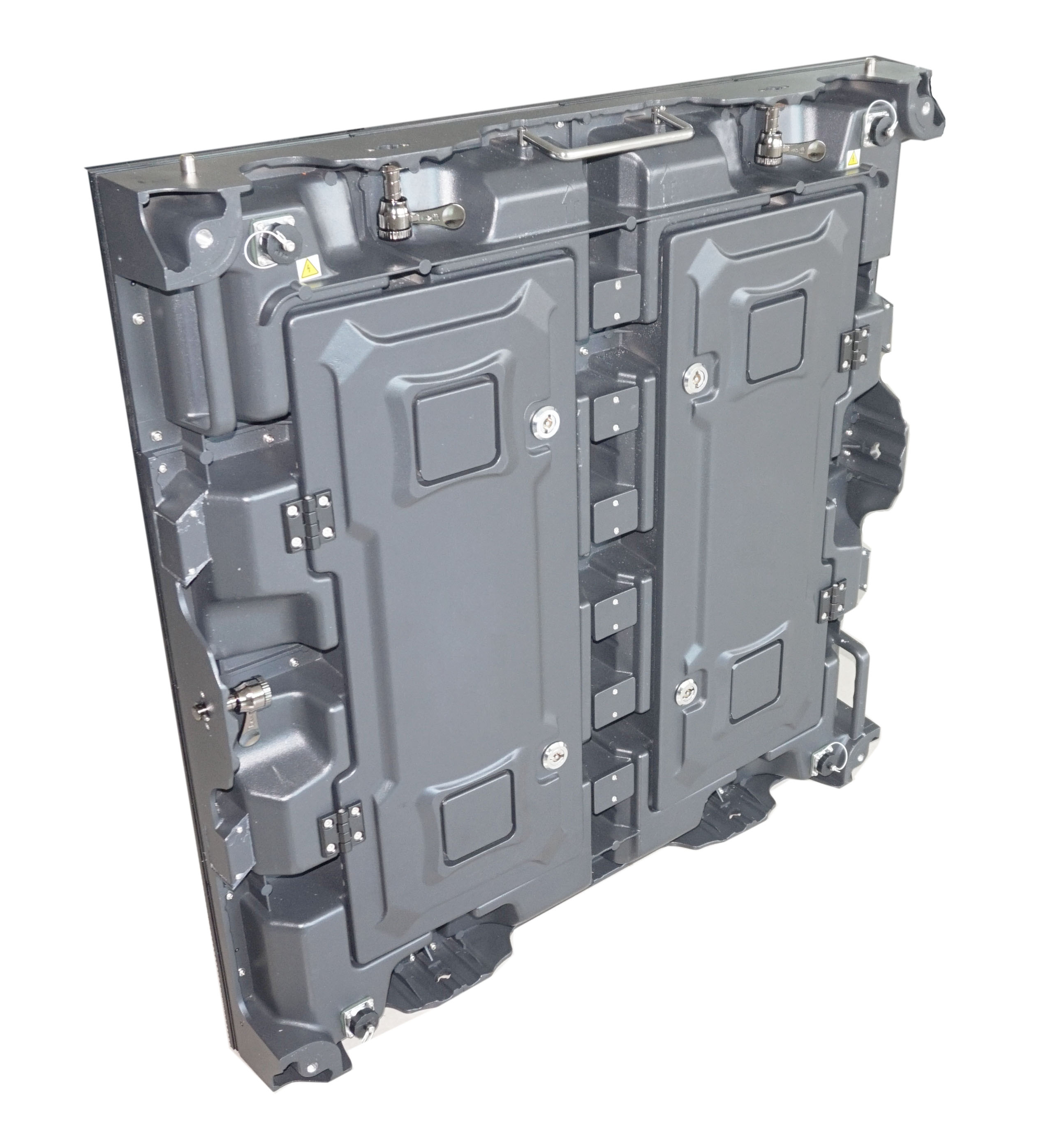

The P6 Outdoor LED Advertising Screen is a robust and high-performance display solution designed for challenging outdoor environments. Featuring a 6mm pixel pitch and high-brightness SMD3535 LEDs, it delivers clear, vibrant visuals even in direct sunlight. Its modular, lightweight die-casting aluminum cabinet design ensures both durability and ease of installation for various advertising and information display applications.
Display Performance
Brightness
5,800 CD/m2
Brightness
- Pixel Pitch
- 6 mm
- Pixel Density
- 27777 dots/m2
- Refresh Rate
- 3840 Hz
Technical Specifications
- LED Type
- SMD3535
- LED Drive
- 1/8 scan
Physical Characteristics
- Cabinet Weight
- 20 Kg
- Cabinet Size
- 768 x 768 mm
- Module Size
- 192 x 192 mm
- Construction Material
- Die-casting Aluminum
Power & Environment
Power Consumption
| Metric | Value |
|---|---|
| Max Power (W/Cabinet) | 510 |
| Average Power (W/Cabinet) | 255 |
Key Features
WaterproofIP65 RatedFast Lock SystemOutdoor Rated
