Technical Specifications
Overview

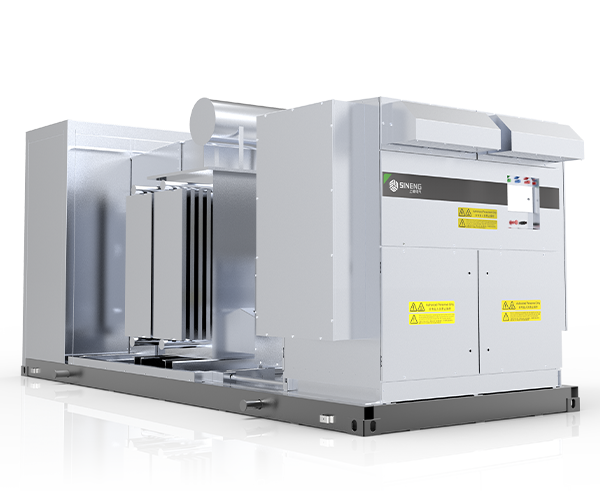

Integrated MV Station Solution
This outdoor integrated MV station combines a high-capacity inverter, transformer, and communication/monitoring system into a single, robust unit. Designed for large-scale solar photovoltaic applications, it supports 1500V grid connections and is engineered to withstand harsh environmental conditions, including high temperatures, humidity, and salt spray. This solution provides a streamlined, cost-effective approach to grid integration.
Input (DC)
- Max. PV input voltage
- 1500 V
- Max. input current
- 3260 A
- MPP voltage range
- 900~1300V
- Number of MPPT trackers
- 1
- Number of DC inputs
- 16~20
Output (AC)
Rated AC output power
2,500 kVA
Rated Power
- Max. AC output power
- 2875 kVA
- AC voltage range
- 10~35kV
- Grid frequency range
- 50Hz (45~55Hz)60Hz (55~65Hz)
- Power factor range
- 0.8 lagging to 0.8 leading
Efficiency
Efficiency Ratings
| Metric | Value |
|---|---|
| Max. efficiency | 99.00% |
| EU efficiency | 98.70% |
Protection
Safety & Protection
DC Type II Surge ProtectionAC Type II Surge ProtectionLeakage Current MonitoringGrid/Ground Fault MonitoringInsulation MonitoringOverheat Protection
Transformer
- Transformer Rated Power
- 2500 kVA
