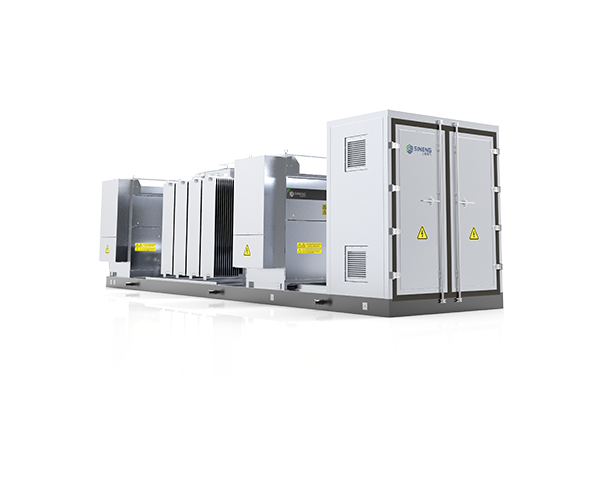

Outdoor Inverter Transformer MV Station
This MV station integrates an outdoor inverter, transformer, and communication/monitoring system. It is designed for 1500V large-capacity centralized grid connections and is suitable for harsh environments.
Technical Specifications
Overview
Integrated MV Station Solution
This integrated outdoor MV station combines a high-capacity inverter, transformer, and advanced communication and monitoring systems into a single, robust unit. Designed for 1500V large-scale grid connections, it significantly reduces initial investment costs while ensuring high performance. The system is engineered to withstand harsh environmental conditions, including high temperatures, humidity, dust, and salt spray, making it a reliable choice for demanding renewable energy projects.
Input (DC)
- Max. PV Input Voltage
- 1500 V
- MPP Voltage Range
- 900~1300V
- Number of MPPT Trackers
- 2
Output (AC)
- Rated AC Output Power
- 2*2500kVA@50℃
- Max. AC Output Power
- 2*2875kVA@25℃
- AC Voltage Range
- 20~35kV
- Power Factor Range
- >0.99 (0.8 lagging to 0.8 leading)
Protection
Optional Functions
Night SVGAnti-PID
- System Protection Features
- DC Input ProtectionAC Output ProtectionOvervoltage Protection (Type II)Leakage Current MonitoringGrid MonitoringGround Fault MonitoringInsulation MonitoringOverheat Protection
Efficiency
Performance Efficiency
99 %
Max. Efficiency
98.7 %
EU Efficiency
Transformer
- Transformer Rated Power
- 5000 kVA
