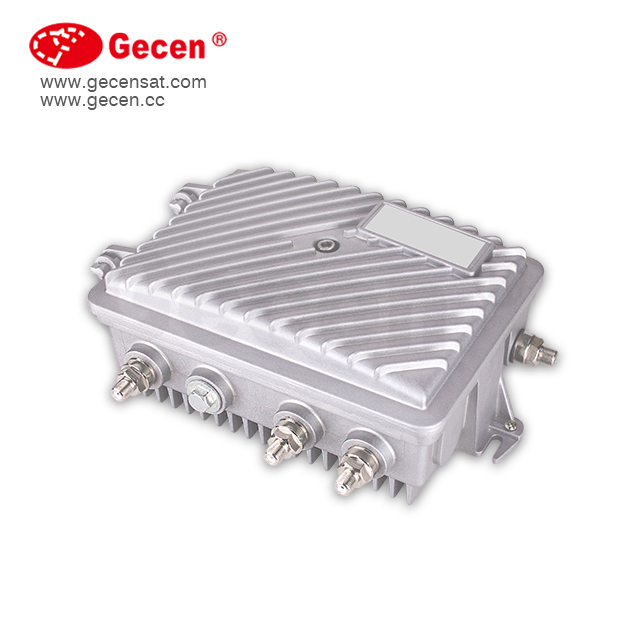

Outdoor CATV Signal Amplifier
This outdoor CATV signal amplifier enhances signal strength within cable television networks. It has a bandwidth of 85~1218MHz when the equalizer has a 10dB slope.
Technical Specifications
Product Overview
High-Performance Outdoor Signal Amplification
This Outdoor CATV Signal Amplifier is engineered for robust performance in professional cable television networks, providing reliable signal enhancement in demanding environments. Featuring a wide bandwidth of up to 1218MHz, it supports modern high-capacity data and video transmission requirements. The unit is housed in a rugged, weatherproof enclosure designed to withstand harsh outdoor conditions while maintaining optimal signal quality and minimal distortion.
Key Features
Core Capabilities
- Rugged weatherproof enclosure for outdoor durability
- Advanced circuitry for minimal signal distortion
- Multiple input/output ports for flexible integration
- Customizable Reverse/Forward frequency ranges
- High-performance amplification for residential and commercial CATV
Frequency & Bandwidth
Frequency Specifications
| Parameter | Forward Path | Reverse Path |
|---|---|---|
| Pass Band (MHz) | 85-1218 | 5-65 |
| Flatness (dB) | ±0.75 | ±0.75 |
| Min Full Gain (dB) | ≥35 | 25 |
Signal Performance
Performance Metrics
35 dB
Forward Gain
1,218 MHz
Max Bandwidth
10 dB
Equalizer Slope
Adjustment & Control
Adjustment Ranges
| Feature | Forward Range | Reverse Range |
|---|---|---|
| Attenuator | 0 - 20 dB (1 dB step) | 0 - 20 dB (1 dB step) |
| Equalizer | 0 - 20 dB (1 dB step) | 0 - 5 dB (1 dB step) |
| RF Test Point | -20±1.5 dB | -20±1.5 dB |
Technical Standards
- Standards & Compliance
- PAL-D CompatibleCE CertifiedOutdoor RatedLow Noise
Customization Options
Available Frequency Ranges
- 5-42 / 54-1218 MHz
- 5-65 / 85-1218 MHz
- 5-85 / 105-1218 MHz
- 5-204 / 258-1218 MHz
Service & Support
Warranty & Support
1 Year WarrantyOEM/ODM Available24h Online Service
