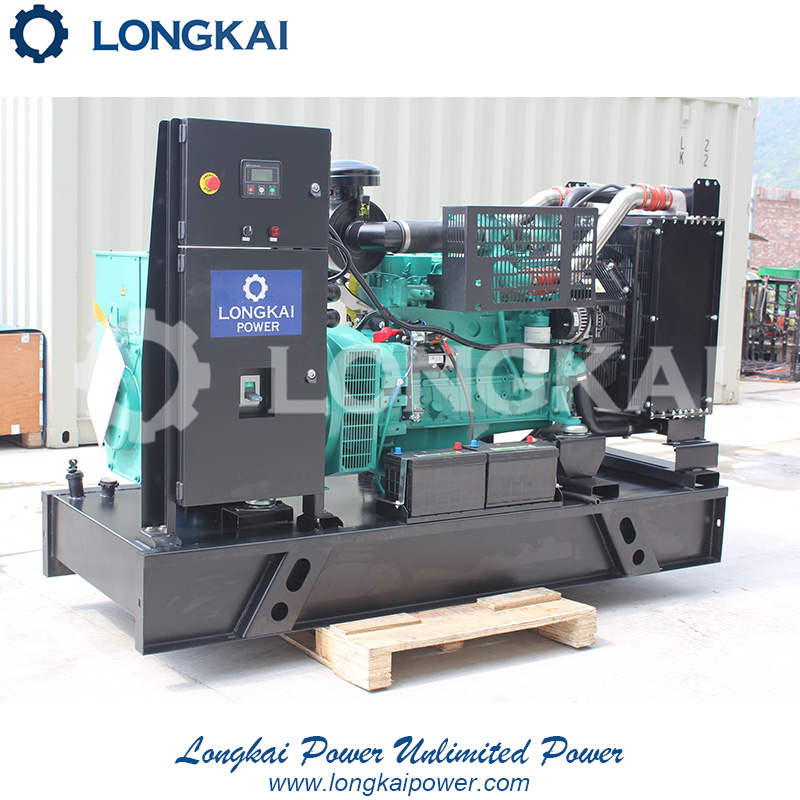

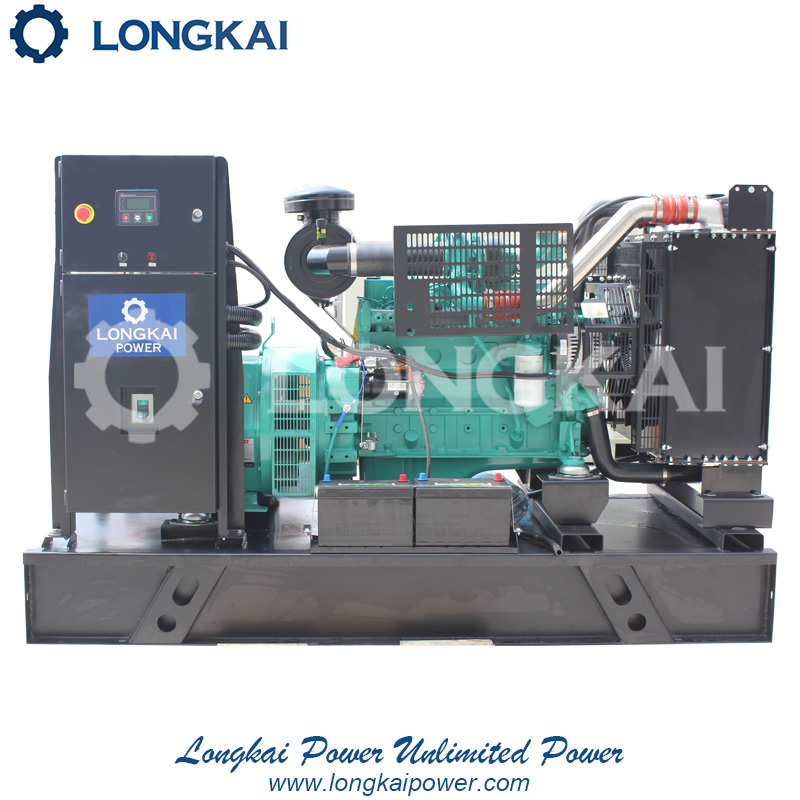

Open Type Diesel Generator Set
This open type diesel generator is designed for reliable power generation. It features a robust diesel engine coupled with a high-efficiency alternator, providing stable and consistent electrical output.
Technical Specifications
Overview
Reliable Open-Type Power Generation
This open-type diesel generator set is engineered for consistent and reliable power supply in industrial, commercial, and backup applications. Featuring a robust engine and high-efficiency alternator, the unit is mounted on a heavy-duty steel base frame with anti-vibration mounts for stability. Its open design ensures easy access to all critical components, simplifying routine maintenance and inspection tasks for operators.
Engine & Alternator
Engine & Cooling
- Cummins Engine
- Radiator with 50°C max capacity
- Belt-driven fans
- 12V/24V charge alternator
Alternator Specifications
- Single bearing alternator
- IP23 Protection Class
- Insulation Class H/H
Control System
- Control Module
- DEEPSEA DSE6120
- Protective Functions
- Low oil pressureHigh water temperatureHigh/low voltageOverspeed protectionEmergency stopStart failure
Standard Equipment
Included Components
- Air, fuel, and oil filters
- Main line circuit breaker (MCCB/ACB)
- Base fuel tank
- 12V/24V batteries with rack and cable
- Exhaust system (ripple flex pipe, siphon, flange, muffler)
Optional Upgrades
Available Options
Battery chargerEngine heaterAlternator heaterPMGWater oil separatorDaily fuel tankRemote control panelAutomatic transfer switch (ATS)Synchronising control modulesPower output cabinet
