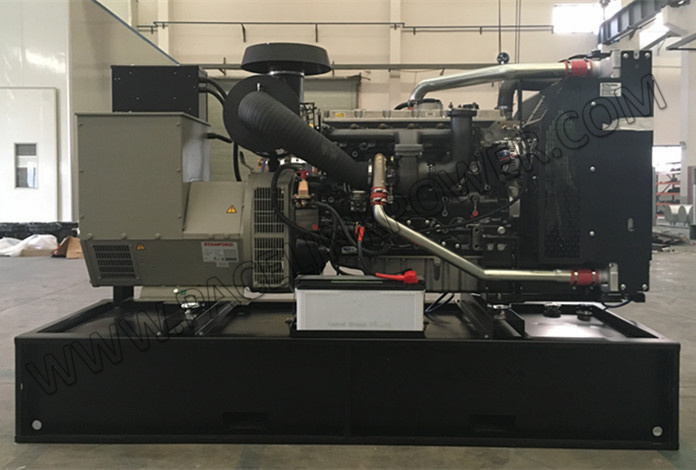

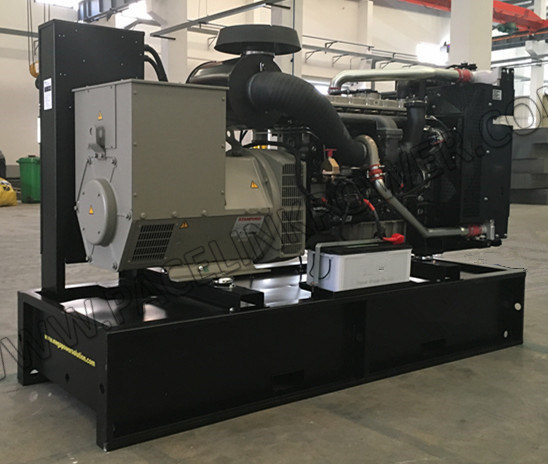

Open Type Diesel Generator
This open type diesel generator delivers reliable power generation for various applications. It features a sturdy base frame and a comprehensive control panel for easy monitoring and operation.
Technical Specifications
Overview
High-Performance Open Type Diesel Generator
This open-type diesel generator is engineered for reliable power generation across industrial, commercial, and emergency backup applications. Built on a heavy-duty steel base frame for stability and vibration isolation, the unit features an efficient engine and high-quality alternator configuration. It is equipped with a comprehensive control and monitoring system, ensuring stable electrical output and ease of operation for prime or standby power requirements.

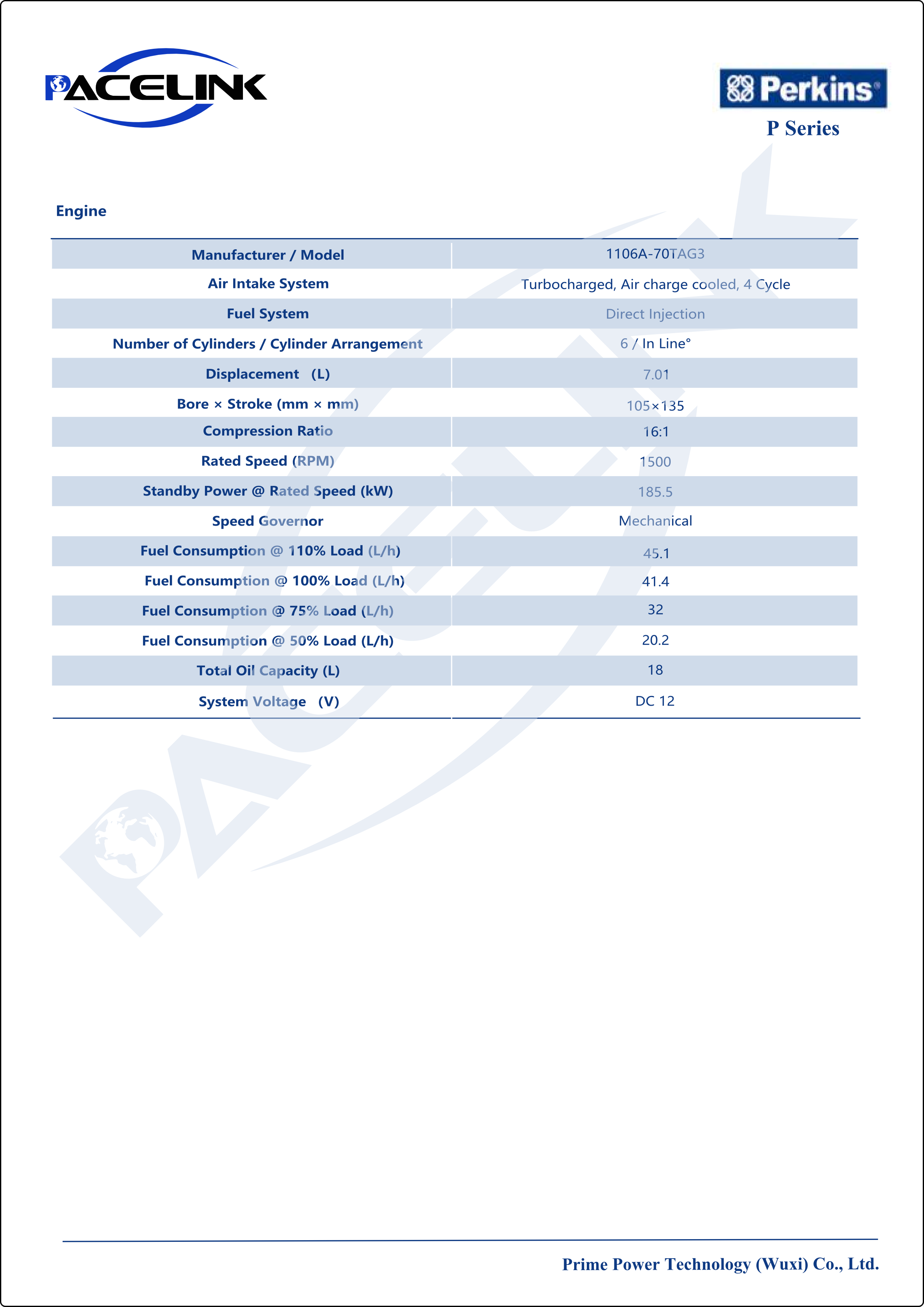

Engine Specifications
Engine Configuration
- 6 Cylinders In-Line
- Turbocharged
- Air charge cooled
- 4-Cycle
- Direct injection fuel system
Engine Performance Metrics
7.01 L
Displacement
1,500 RPM
Rated Speed
185.5 kW
Standby Power
16 :1
Compression Ratio
Fuel Consumption Rates
| Load Level | Consumption |
|---|---|
| 110% Load | 45.1 L/h |
| 100% Load | 41.4 L/h |
| 75% Load | 32.0 L/h |
| 50% Load | 20.2 L/h |

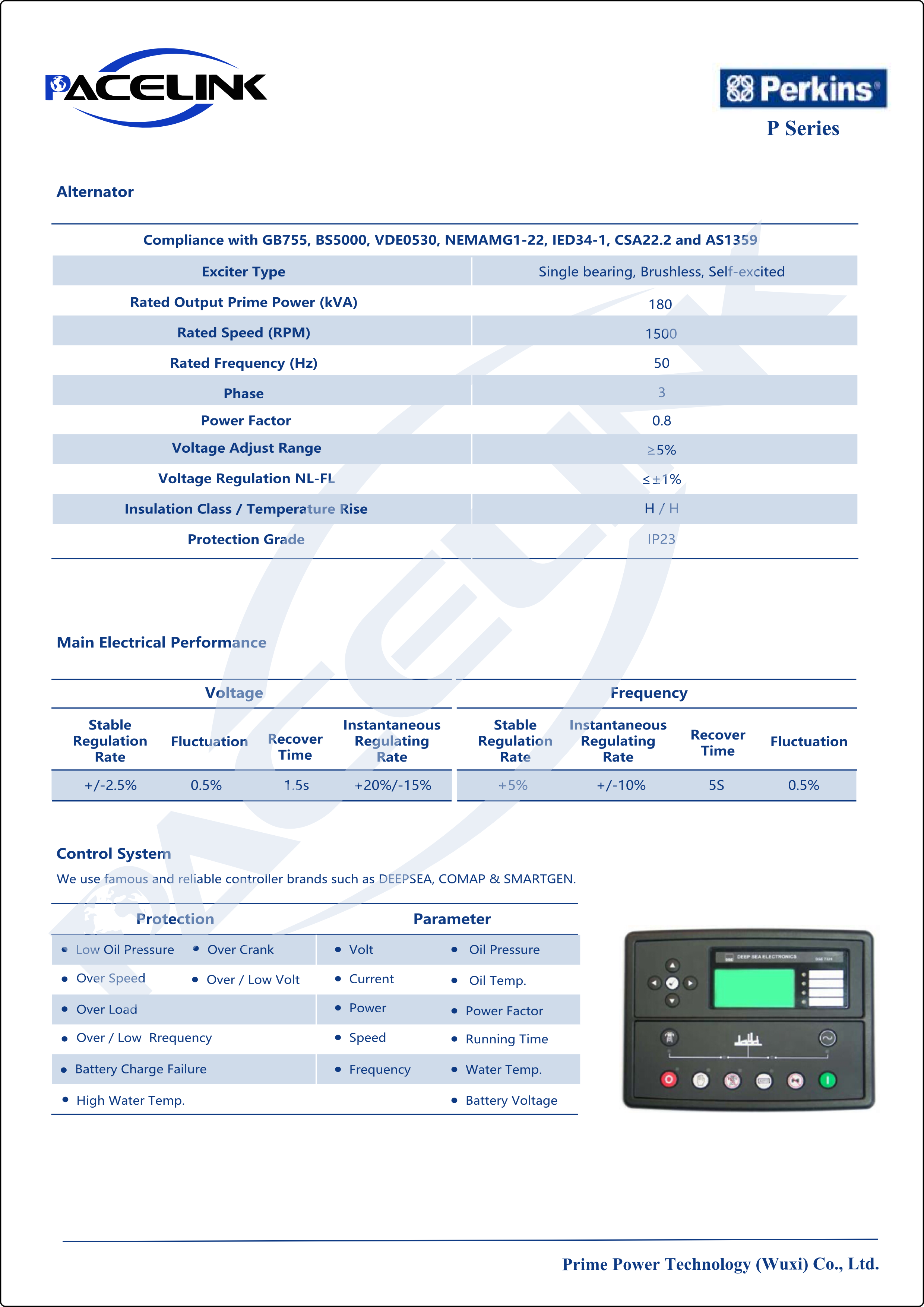

Alternator Specifications
Electrical Output
180 kVA
Prime Power
0.8
Power Factor
50 Hz
Frequency
- Alternator Features
- Single bearingBrushlessSelf-excitedIP23 Protection
- Voltage Regulation
- 1 %
Control & Protection
Monitored Parameters
VoltageCurrentOil PressureOil TempWater TempFrequencyPower FactorRunning Time
Protection Features
- Low Oil Pressure
- Over Speed
- Over/Low Voltage
- Over Load
- High Water Temperature
- Battery Charge Failure
Options & Accessories
- Available Options
- Trailer mountedCircuit breaker50°C RadiatorAnti-condensation heaterWater/Oil heaterResidential silencerATS control cabinet
