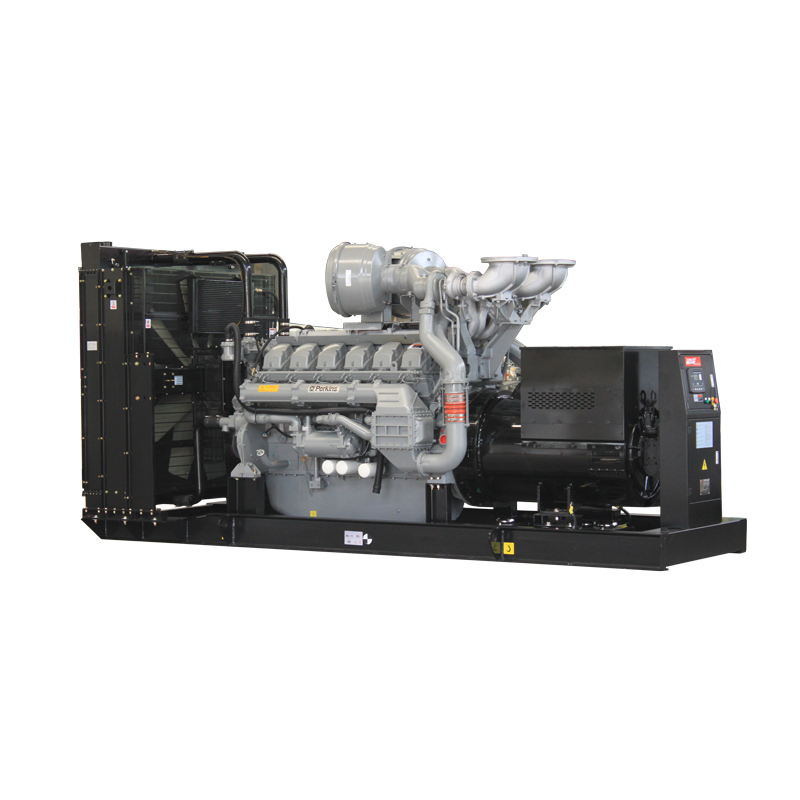

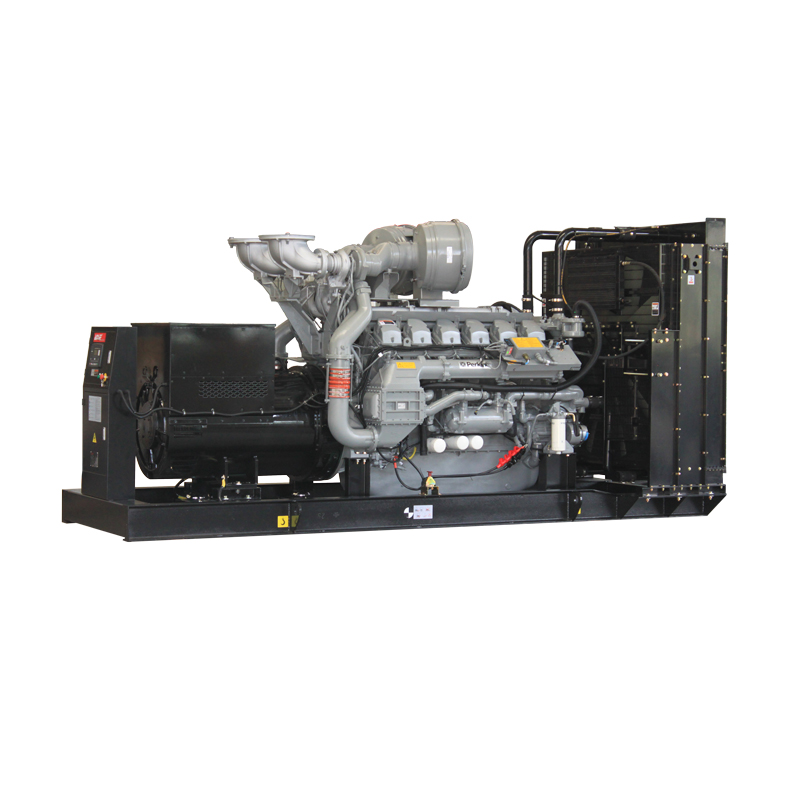

Open Diesel Generator Set
This open generator set is a robust and reliable power solution designed for continuous or standby operation. It features a heavy-duty diesel engine coupled with a high-efficiency alternator, providing stable and consistent power output.
Technical Specifications
Overview
High-Performance Open Diesel Generator Set
This open diesel generator set is engineered for reliability in both continuous and standby power applications. Featuring a robust diesel engine and a high-efficiency brushless synchronization alternator, it delivers stable power output even under non-linear loads. The system includes an advanced automatic control module with comprehensive monitoring and protection functions, all mounted on a durable, high-strength base frame with built-in shock absorption.
Technical Specifications
Alternator Details
- Brushless synchronization type
- Protection Class: IP23 (IP44 optional)
- Insulation Class: H
- Overspeed: 2250rpm
- Compliant with ISO1940 and NFC51-112 standards
- Available Voltage Ranks
- 230V/400V220V/380V127V/220V240V/480V
Control System
Control Module Capabilities
- Self-starting at mains failure
- LCD backlit display
- 7-channel input / 6-channel output
- PC and panel programming
- IP65 protection (when soundproofed)
Safety & Protection
High water tempLow oil pressureHigh/Low voltageOver speedEmergency stopStart failure
Electrical Components
Circuit Breaker Specifications
| Component | Range |
|---|---|
| Molded Case Circuit Breaker (MCCB) | 63A to 1600A |
| Air Circuit Breaker (ACB) | 1600A to 6300A |
| Breaking Capacity (ICU) | 18KA to 120KA |
Starting Battery Specs
12 V
Battery Voltage
200 Ah
Max Capacity
