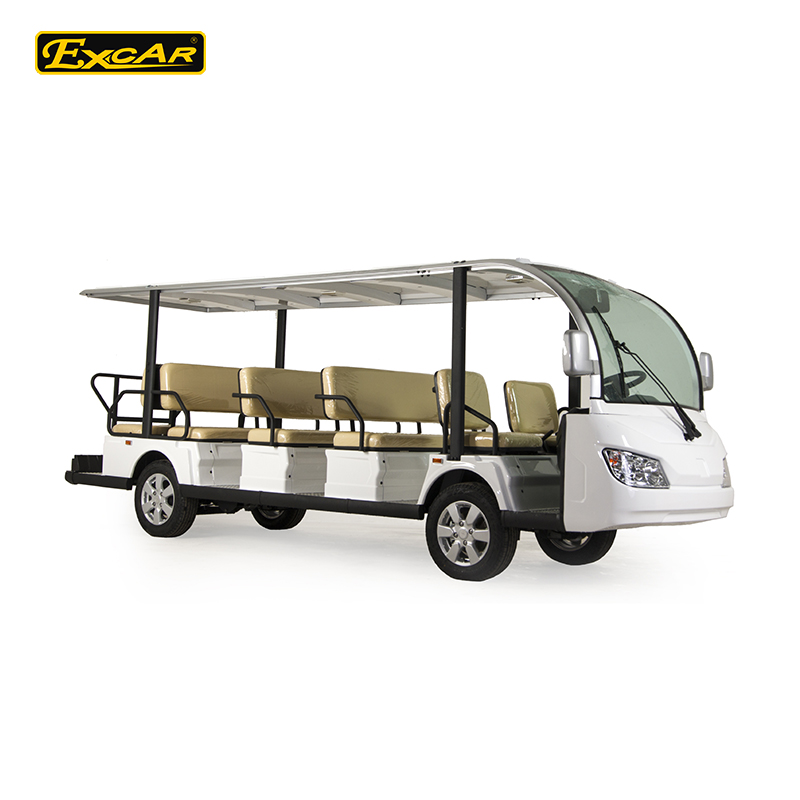

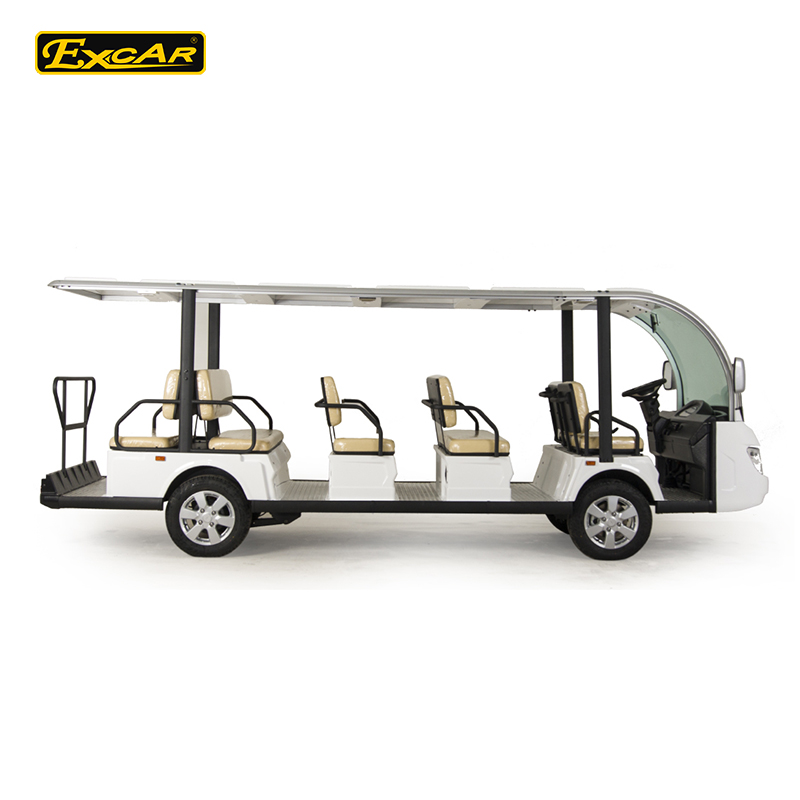

Open-Air Electric Tour Bus
This electric sightseeing bus provides comfortable and eco-friendly transportation in tourist areas and resorts. It features an open-air design with multiple rows of seating and is powered by an electric motor for quiet operation.
Technical Specifications
Overview
Eco-Friendly Passenger Transport
This 14-seat electric shuttle bus is engineered for efficient, emission-free transportation in resorts, parks, and tourist destinations. Featuring a robust high-strength steel alloy chassis and an open-air design, it combines passenger comfort with reliable performance. Its electric powertrain, paired with a heavy-duty transaxle and independent suspension, ensures a smooth and quiet ride for all passengers.
Performance
Key Performance Metrics
40 km/h
Max Speed
80 km
Max Range
25 %
Climbing Capacity
1,120 kg
Payload Capacity
Dimensions
Physical Dimensions
| Specification | Value |
|---|---|
| Size (LxWxH) | 5300 x 1500 x 2000 mm |
| Wheelbase | 2850 mm |
| Ground Clearance | 150 mm |
| Min. Turning Radius | 5.7 m |
Powertrain
Motor & Electrical System
- 7.5KW AC Motor
- 72V System Voltage
- Curtis AC Controller (72V 350A)
- 12x Trojan T-105 Batteries
- 72V 30A Intelligent Onboard Charger
Chassis & Build
Handling & Suspension
- McPherson Independent Spring Suspension
- Electric Power Steering (EPS)
- Vacuum Booster Hydraulic Brake System
- Heavy Duty Axle with Differential Gear
- Build Quality
- High Strength Steel AlloyE-CoatingPowder CoatingABS Plastic Body
