Technical Specifications
Product Overview

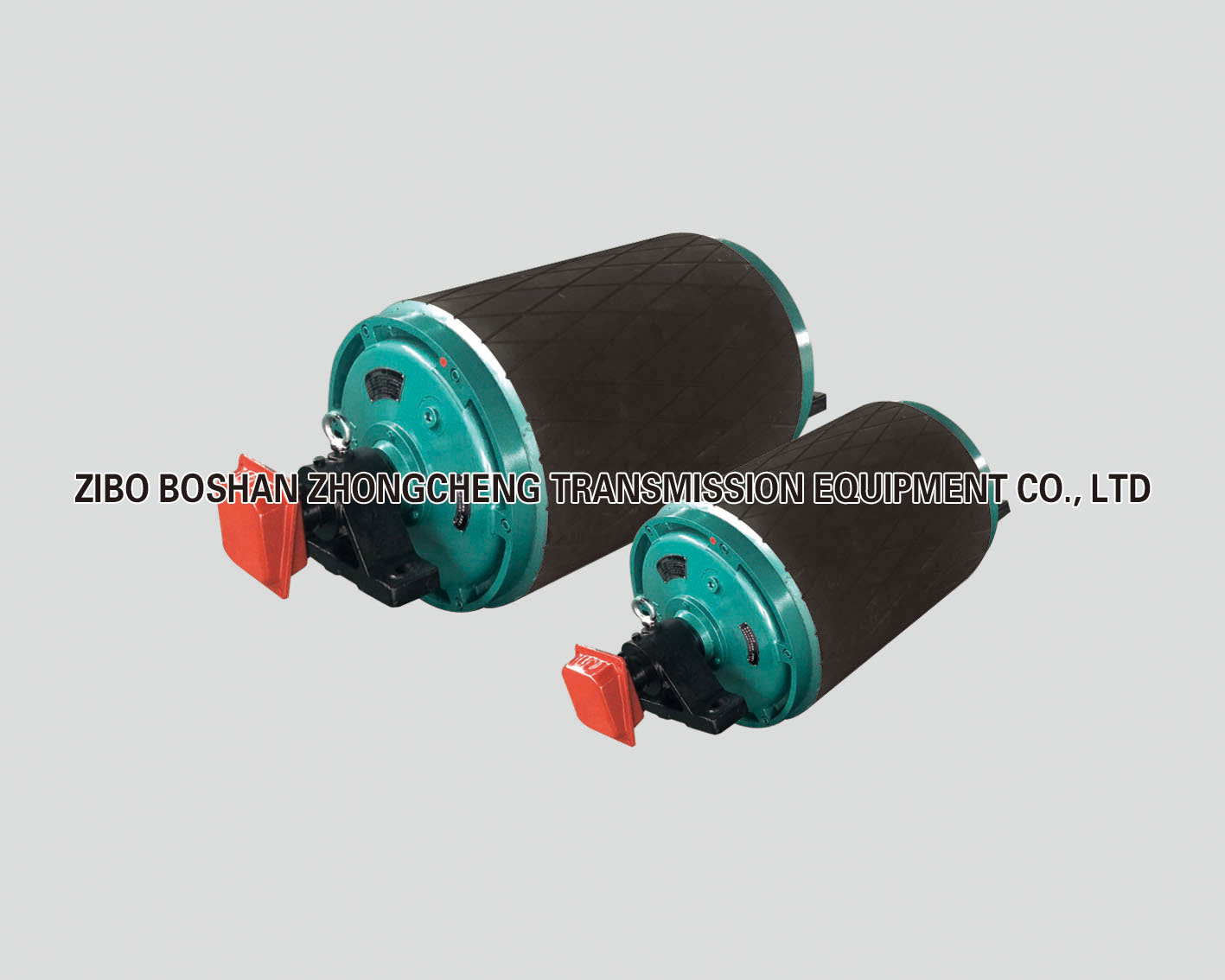

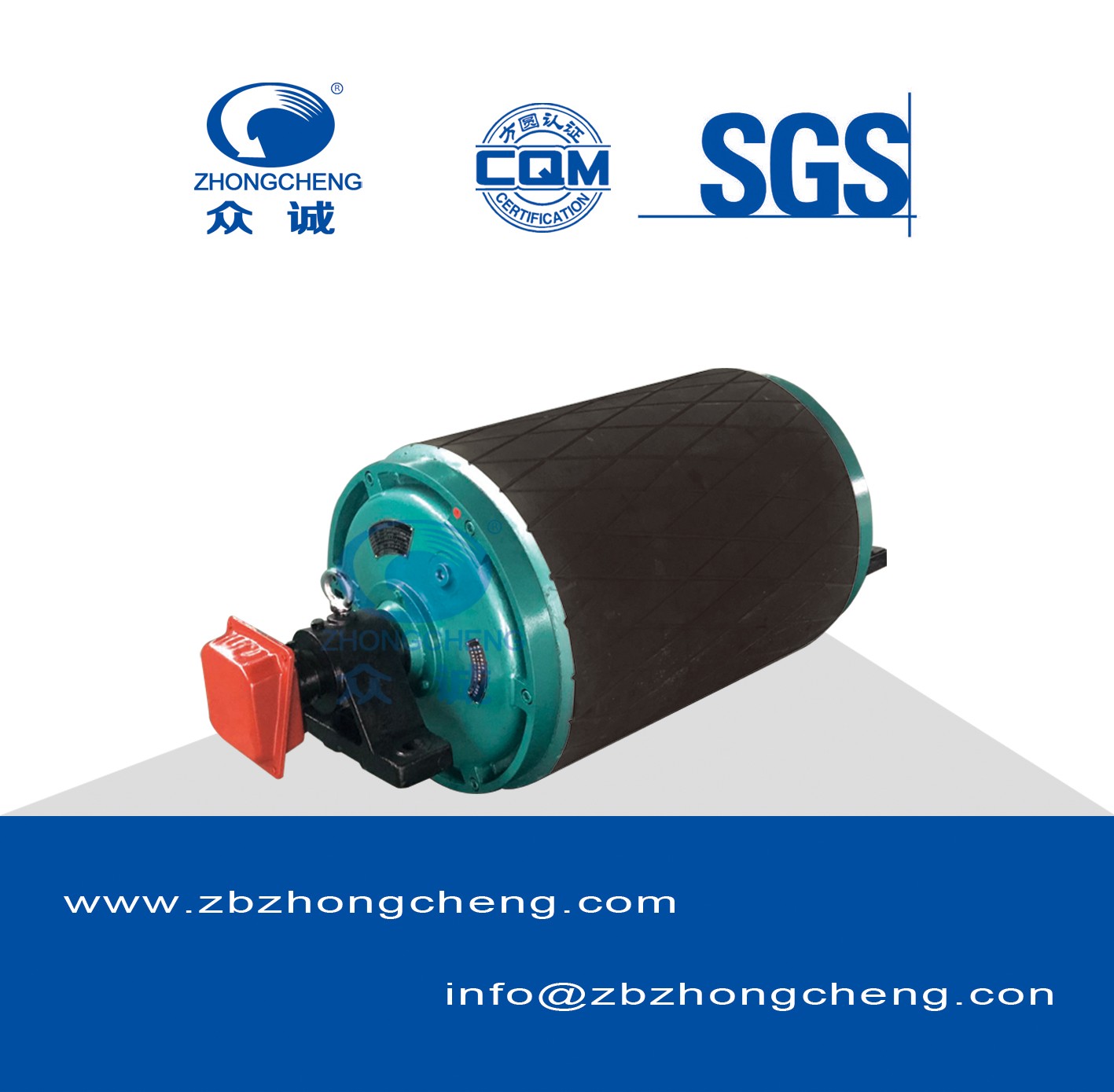

High-Efficiency Cycloidal Electric Pulley
This oil-immersed electric pulley integrates a motor, gearbox, and drum into a single compact unit for fixed belt conveyors and bucket wheel stacker reclaimers. It utilizes an advanced cycloidal pin wheel reduction mechanism constructed from high-strength alloy steel to deliver exceptional torque, overload capacity, and smooth transmission. Its oil-cooled design ensures reliable performance and low maintenance, while the compact build significantly reduces space requirements in industrial setups.
Technical Specifications
Performance Parameters
| Type | Diameter (mm) | Power (KW) | Strip Width (mm) | Tape Speed (m/s) | Weight (kg) Max |
|---|---|---|---|---|---|
| YBT, YBN, JBT, JBN | 280~800 | 1.5~37 | 500~1400 | 1.5~37 | 252~580 |
- Supported Voltages
- 380V660V1140V
Environmental Requirements
Operational Limits
- Ambient temperature: -15°C to 40°C
- Altitude: ≤ 1000 meters
- Conveyed material temperature: ≤ 60°C
- Frequency: 50Hz
Key Features
Advanced Functionalities
Oil-Immersed CoolingFlameproof EnclosureCompact DesignBackstop CompatibleBraking CompatibleRubber Coating Options
