Off-Grid Solar Power System with Hybrid Inverter

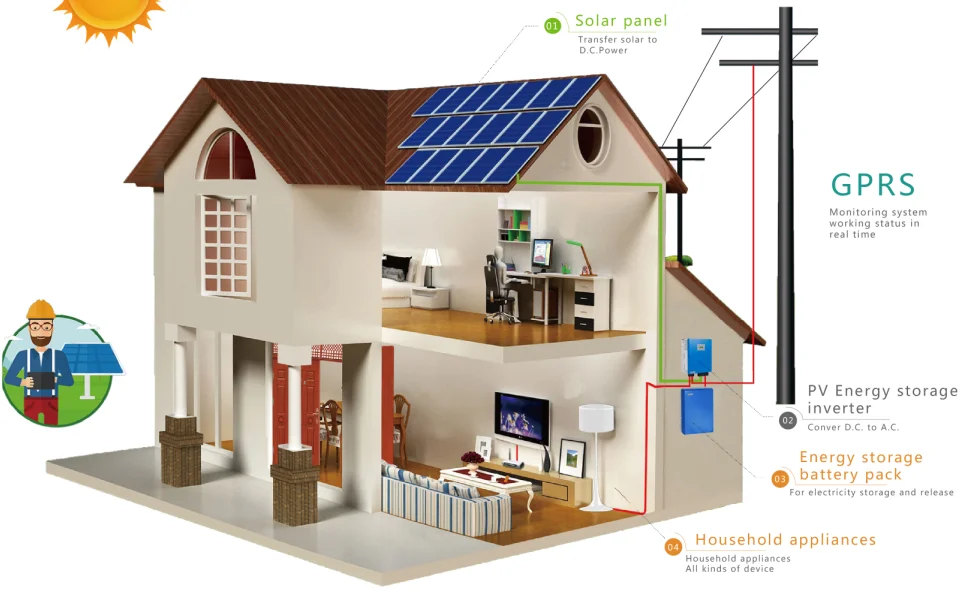

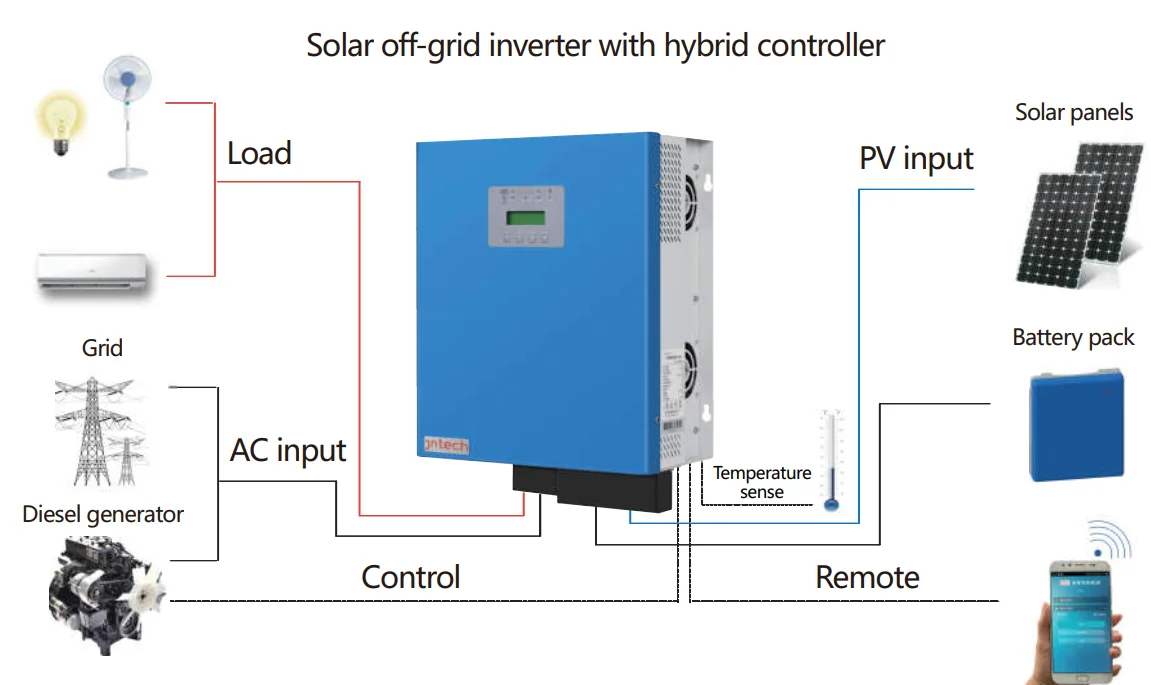

The system comprises solar panels, a solar off-grid inverter, an MPPT charge controller, and a battery pack. The solar off-grid inverter converts DC power from solar panels to AC power, providing electricity for appliances.
Technical Specifications
System Overview
Comprehensive Off-Grid Power Solution
This off-grid solar power system is a complete energy solution designed for reliability and independence. It integrates solar panels, a high-performance hybrid inverter, an MPPT charge controller, and a battery pack to convert solar energy into usable AC power. The system features advanced battery management and intelligent energy control, making it suitable for both residential and commercial applications where grid access is limited or backup power is required.
System Capabilities
System Features
- Multiple operation modes for diverse application requirements
- On-grid and off-grid automatic switchover
- Advanced battery management system (BMS)
- Integrated Energy Management System (EMS)
- Wireless monitoring system with LCD display
- Battery Support
- Lead-acid BatteryLithium Battery
Technical Specifications
Performance Metrics
24 hours
Power Supply Duration
Inverter Specifications
| Feature | Specification |
|---|---|
| Output Waveform | Pure Sine Wave |
| MPPT Input | Dual Input |
| Transformer Type | Pure Copper |
| AC By-pass | SCR Adopted |
Safety & Protection
Safety Protections
Leakage ProtectionShort Circuit ProtectionOverload Protection
Automated Functions
- Auto restart upon AC recovery
- Configurable AC/DC input priority
- Selectable charging current
