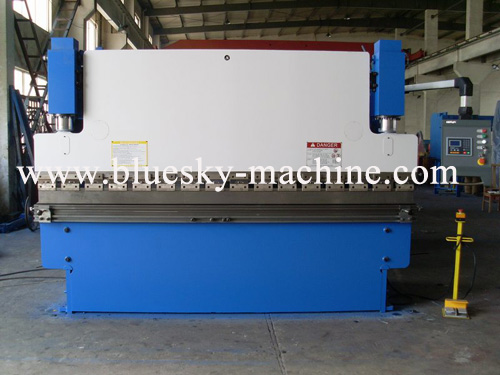

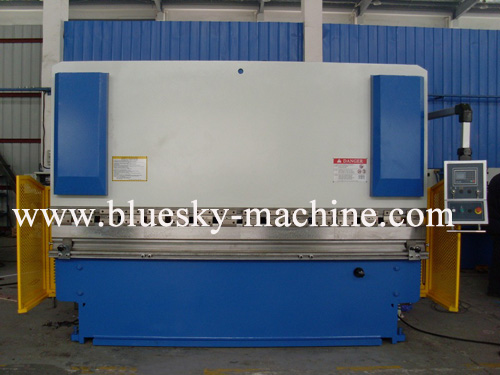

NC Hydraulic Press Brake for Metal Forming
The NC hydraulic press brake is a precision machine for bending sheet metal. It uses a hydraulic system and numerical control for accurate and repeatable forming.
Technical Specifications
Overview
Precision Metal Forming Solutions
This NC hydraulic press brake is a professional-grade machine tool engineered for high-accuracy sheet metal bending. Featuring a robust frame and advanced hydraulic systems, it ensures stability and consistent force application for demanding manufacturing environments. With integrated numerical control capabilities, operators can achieve precise bending angles and depths, significantly reducing setup times and enhancing production efficiency.
Technical Specifications
- Control System
- Delem NC System
- Resetting Accuracy
- 0.1 mm
- Controlled Axes
- Y-axis (Slider Stroke)X-axis (Rear Stop)
- Backgauge Mechanism
- Ball screw and rolling guide
Performance Metrics
Performance Highlights

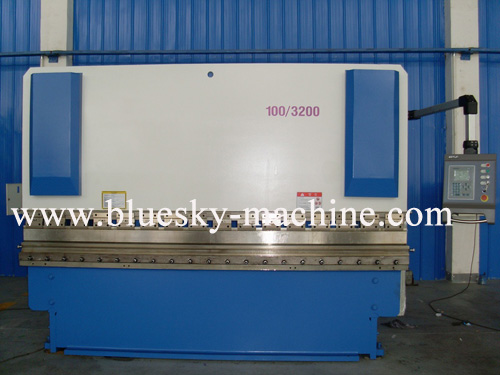

100 Tons
Bending Force
3,200 mm
Bending Length
Features
Key Features
- Mechanical stop unit for synchronous torque
- Automatic computer-controlled slider stroke
- High-precision rear stop positioning
- Robust hydraulic system for consistent force
Applications
Suitable Industries
AutomotiveAerospaceGeneral Manufacturing
