Technical Specifications
Overview
Industrial Precision Shearing

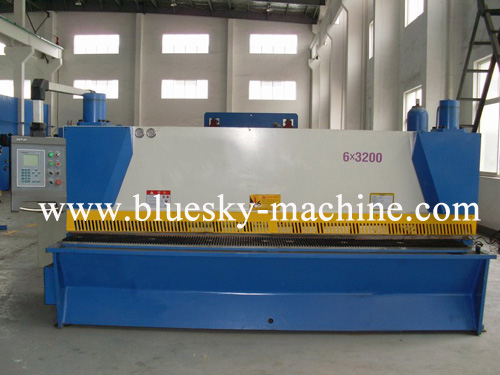

This NC hydraulic guillotine shearing machine is engineered for precision metal cutting in industrial environments. Featuring a robust, stress-relieved welded structure, it ensures high rigidity and consistent performance. The machine offers advanced features like adjustable cutting angles, convenient manual blade gap adjustment, and a numerically controlled rear stop system for efficient, high-volume production.
Technical Specifications
Adjustment Mechanisms
- Manual hand-wheel blade gap adjustment
- Stepless upper knife rest stroke height adjustment
- Structural Design
- Overall welded structure, quenched for stress relief
- Guide System
- Three-point support rolling guide
- Blade Configuration
- Rectangular blade4-edge reversibleAdjustable cutting angle
- Control System
- NC controlled rear stop
Performance Metrics
Available Cutting Capacities
6 mm
Max Thickness (Option A)
3,200 mm
Cutting Length (Option A)
13 mm
Max Thickness (Option B)
6,000 mm
Cutting Length (Option B)
