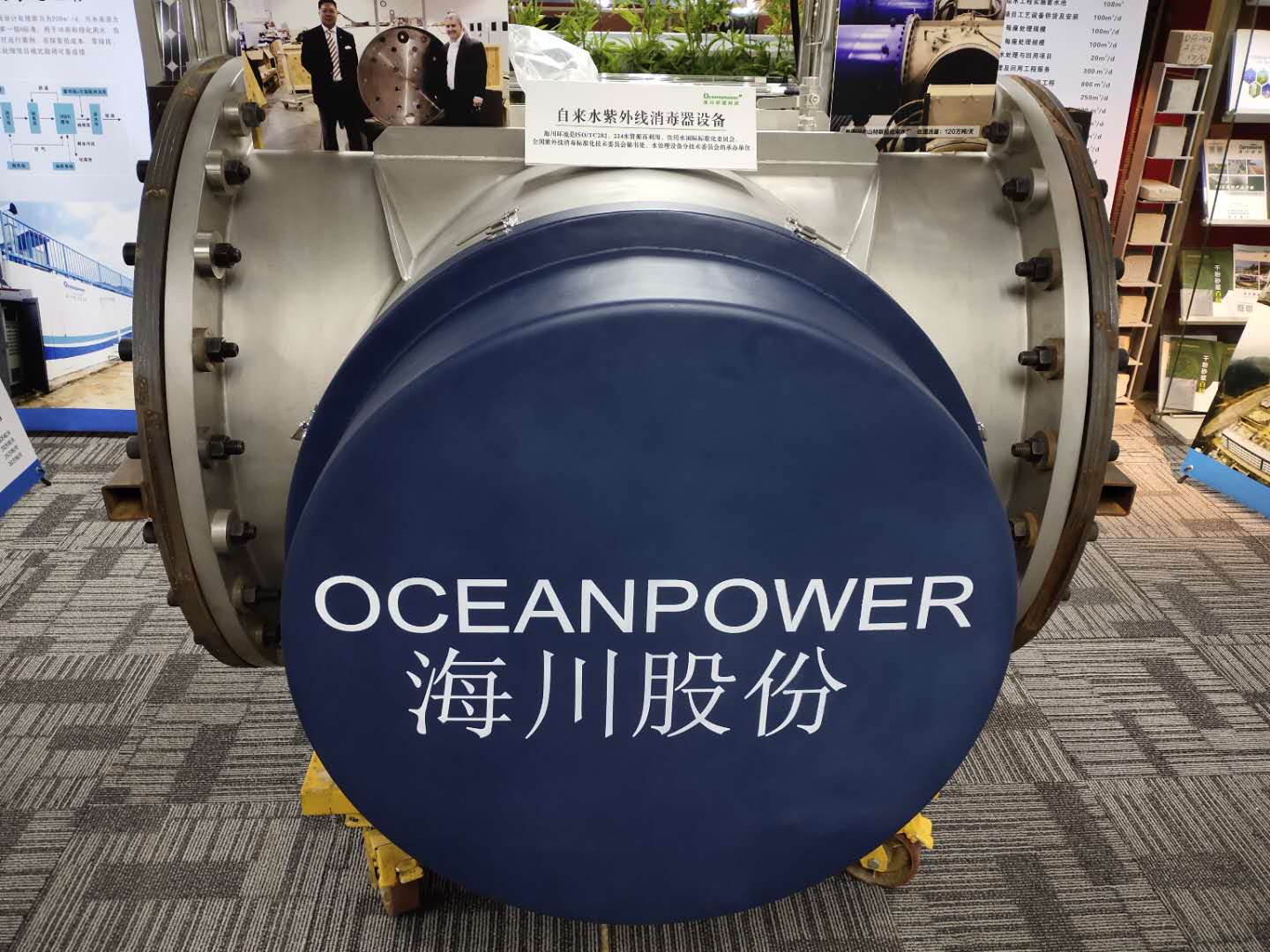

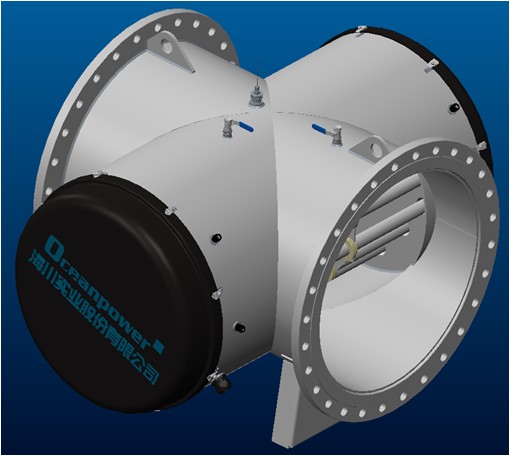

Municipal Drinking Water UV Sterilization System
This high-capacity ultraviolet (UV) disinfection system is designed for municipal drinking water treatment. The system utilizes advanced UV technology to effectively inactivate harmful microorganisms, ensuring safe and clean drinking water.
Technical Specifications
Product Overview
High-Efficiency Municipal UV Disinfection
This medium-pressure ultraviolet sterilization system is engineered for large-scale municipal drinking water treatment. It effectively inactivates over 99.99% of microorganisms without the use of chemical additives, ensuring no harmful byproducts remain in the water supply. The system features smart, real-time power adjustment based on flow rate and UV transmittance to optimize energy consumption while maintaining a dosage of at least 40 mJ/cm².
Performance Metrics
Inactivation Rate
99.99 %
Microorganism Inactivation
- Equivalent UV Dosage
- 40 mJ/cm²
Technical Specifications
- Single Lamp Power Rate
- 16 kW
- Material Compliance
- Food Grade Materials
- Component Origin
- Germany (Lamps, Ballasts, Detectors)
Operational Features
Control System
- Real-time UV power adjustment
- Flow rate correlation
- UVT (UV light transmittance) monitoring
- Automated dosage control
Key Advantages
Chemical-freeLow MaintenanceEnergy EfficientHigh Capacity
