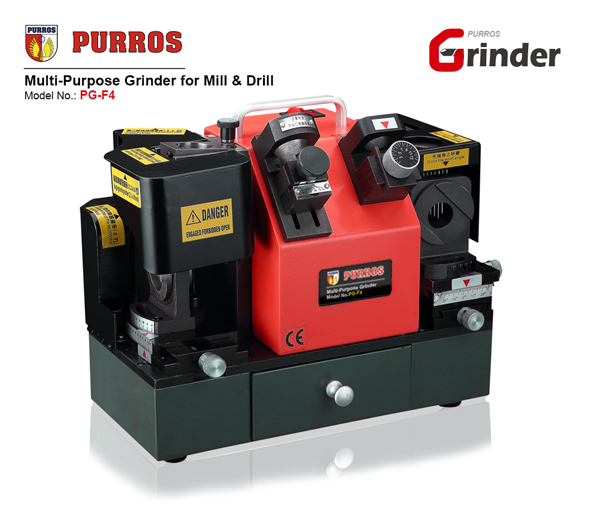

Multi-Purpose Mill and Drill Grinder
This multi-purpose grinder is designed for sharpening both mills and drills. It offers double functionality in one machine, providing easy operation and reduced costs.
Technical Specifications
Overview
Professional Multi-Purpose Grinding Solution
This multi-purpose grinder is engineered for the precise sharpening of both end mills and drill bits, offering a dual-function solution for tool maintenance. Designed with efficiency in mind, the unit supports a wide range of flute counts and geometry adjustments, helping to extend the service life of cutting tools. Its compact footprint makes it an ideal addition to machine shops and tool rooms requiring consistent, high-quality results.
Technical Specifications
Grinding Range
| Tool Type | Diameter Range |
|---|---|
| End Mill | Φ4-Φ14mm |
| Drill Bit | Φ3-Φ14mm |
Point Angle Range
| Tool Type | Angle Range |
|---|---|
| End Mill | 0°~5° |
| Drill Bit | 100°~135° |
Performance
Key Performance Metrics
4,800 RPM
Motor Speed
180 W
Power Rating
220 V
Voltage
Physical Attributes
Size and Weight
20 kg
Net Weight
37 cm
Length
23 cm
Width
30 cm
Height
Features
Certifications
CE Certified
- Compatible Flute Counts
- 2-flutes3-flutes4-flutes6-flutes
