Multi-Port Bypass Valve for Fluid Control
This multi-port bypass valve is designed for fluid control systems. It allows for diverting flow around a specific component or system, enabling maintenance or isolation without shutting down the entire process.
Technical Specifications
Overview
Versatile Fluid Control Solution
This multi-port bypass valve serves as a high-efficiency back-pressure regulator designed to adjust port pressure by controlling bypass flow in water treatment systems. It is an essential component for softening systems, allowing for maintenance without system shutdown and enabling the production of mixed water to achieve specific hardness levels suitable for drinking. Engineered for durability, these valves are easily paired with a variety of softening control units to meet diverse residential and industrial requirements.
Key Features
Operational Advantages

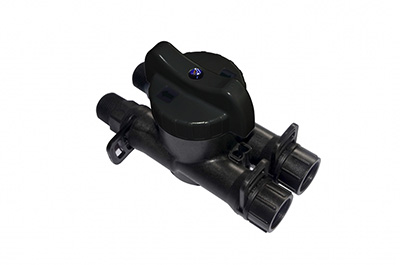

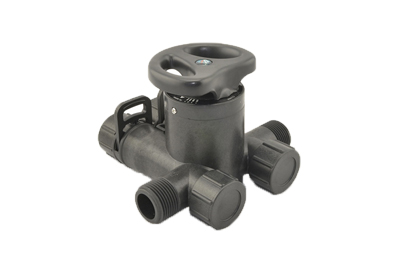

- Easy to operate via manual handwheel or lever
- Multiple operation modes: Service, Close, Bypass, and Softening
- Built-in flow meter capability for precise volume-based control
- Corrosion-resistant black plastic construction
- Adjustable center distances on specific models (65/70mm)
- Integrated mounting features for stable installation
Control Interface

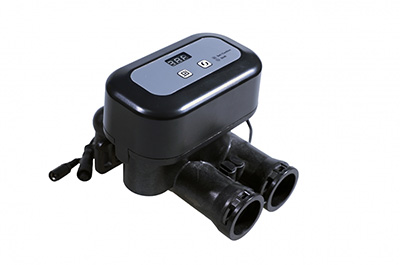

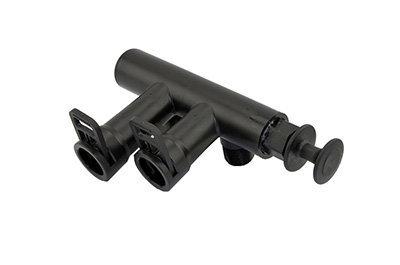

Manual HandwheelLever OperatedDigital Display (Select Models)Push-button Programming
Technical Specifications
Model Specifications
| Model | Inlet/Outlet | Matching Pipe Dia. | Center Distance |
|---|---|---|---|
| F70A | 1" M | 1" F | 50mm |
| F70B | 3/4" M | 3/4" M | 65/70mm (Adjustable) |
| F70C | 1" M | 1" F | 50mm |
| F70D | 3/4" M | 3/4" M | 50mm |
| F70F | 1" M | NPT 1" or 1" M | 50mm |
| F70G | NPT 3/4"M or 1"M | 3/4" M or NPT 1" M | 50mm |
- Material
- Durable Corrosion-Resistant Plastic
Applications
- System Compatibility
- Water TreatmentResidential SofteningIndustrial Fluid ControlHVAC SystemsChemical ProcessingMaintenance Bypass
