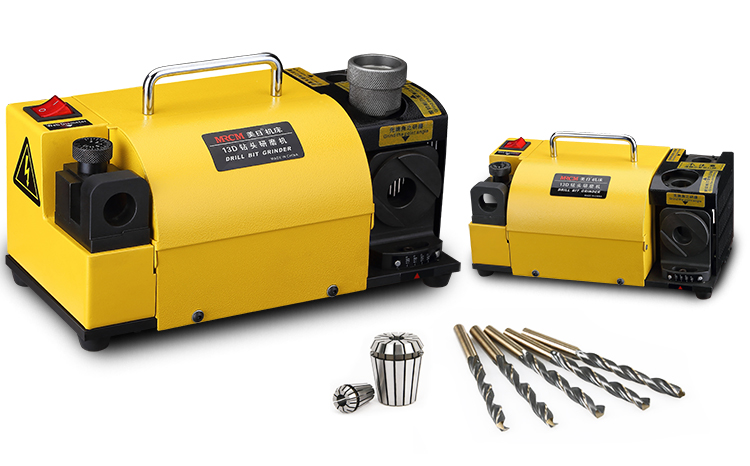

Multi-Functional Drill Bit Sharpener
This multi-functional drill bit sharpener is designed for sharpening stainless steel drills. Its CNC functionality ensures precision and consistency in sharpening, making it ideal for professional workshops and manufacturing environments.
Technical Specifications
Overview
Precision Drill Bit Maintenance
The MR-13D is a high-performance, multi-functional drill bit sharpener engineered for rapid and accurate grinding. Designed for professional workshops and manufacturing environments, it features an electrically controlled DC motor for stable, powerful operation. Its versatile design allows for the adjustment of point angles and central points, ensuring consistent quality and extended service life for your drill bits.
Technical Specifications
- Model
- MR-13D
- Grinding Range
- Φ2-Φ13(Φ15)
- Point Angle
- 95°~135°
- Motor Power
- 120 W
- Speed
- 4400 rpm
- Power Supply
- AC220V
Physical Attributes
- Dimensions
- 32 x 18 x 19 cm
- Weight
- 10 kg
Equipment
Standard Equipment
- Grinding wheel: CBN (for HSS)
- Eleven collets: Φ3, Φ4, Φ5, Φ6, Φ7, Φ8, Φ9, Φ10, Φ11, Φ12, Φ13
- Collet chuck: (Φ2-Φ14) x 1
Optional Equipment
- Grinding wheel: SD (for Carbide)
- Collets: Φ2, Φ2.5, Φ3.5, Φ4.5, Φ5.5, Φ14, Φ15
- Collet chuck: Φ15
Key Features
Performance Highlights

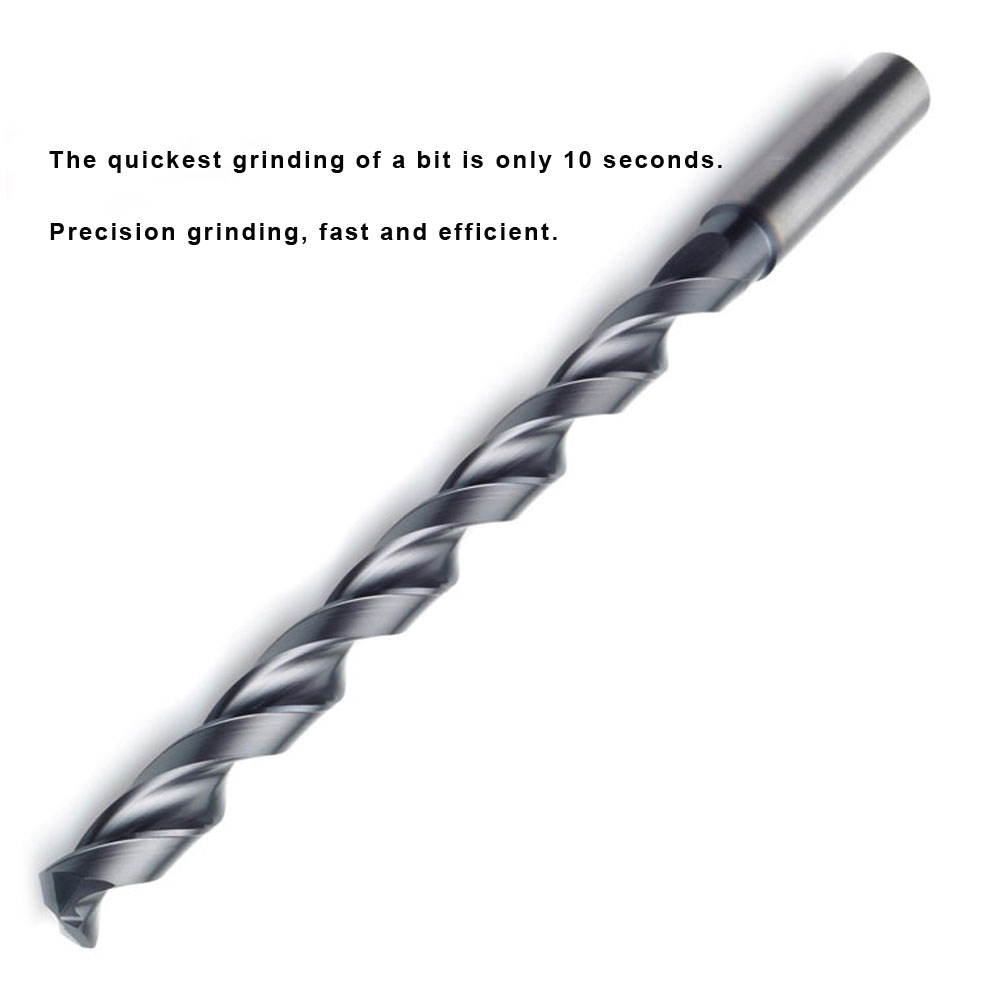

10 seconds
Typical Grinding Time
Certifications
CE Certified
