Product Overview
Advanced Geophysical Surveying

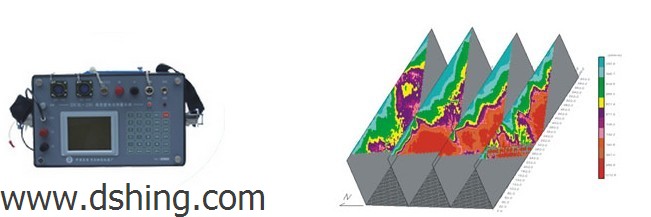

This Multi-Electrode Resistivity Survey System is a comprehensive geophysical instrument engineered for high-resolution subsurface investigation. By integrating data acquisition and multiplexing into a single, compact unit, it minimizes signal errors and enhances field efficiency. It is designed to support critical geological, engineering, and environmental exploration tasks with high precision.
Technical Specifications
- A/D & D/A Resolution
- 16 bit
- Key Measurement Capabilities
- Grounding resistance auto-detectionSP voltage compensationHigh/Low current transformHigh/Low impedance transformation
Applications
Primary Use Cases
- Geological disaster survey (landslides, etc.)
- Engineering exploration (foundations, highways, bridges, railways)
- Mineral and geothermal exploration
- Environmental monitoring and hydrology
- Coal mining and cave detection
Operational Features
Design Advantages
- Integrated data acquisition and multiplexer in one case
- Reduced device volume and weight
- Improved weak signal acquisition capability
- Enhanced data repeatability
- Automated grounding resistance directions
