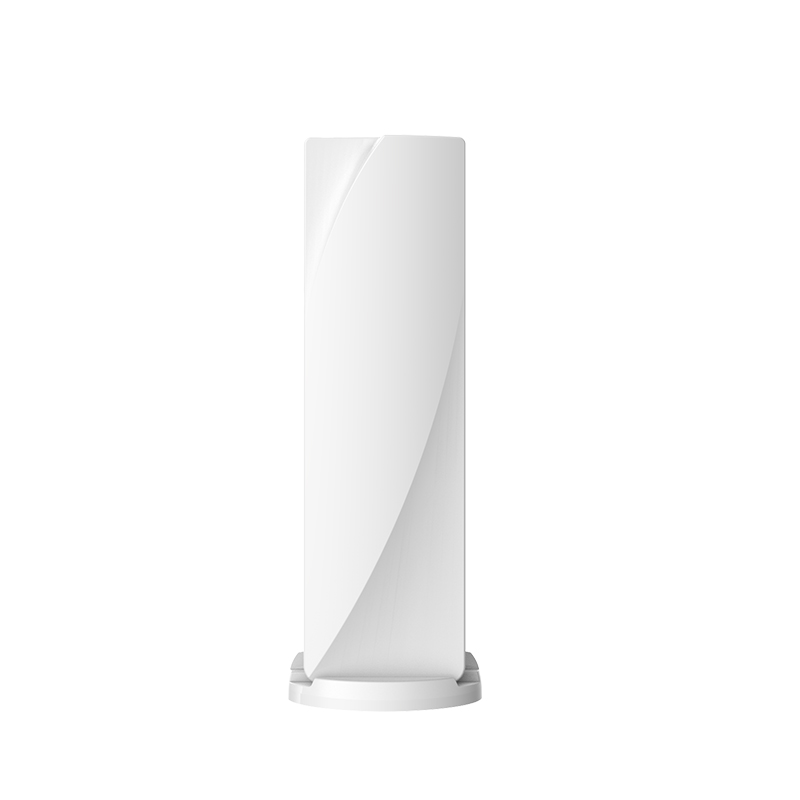

Multi-Directional Outdoor TV Antenna
This multi-directional TV antenna is designed for optimal signal capture from various directions. It is ideal for use in areas with challenging signal conditions, ensuring consistent and high-quality reception.
Technical Specifications
Product Overview
High-Performance Multi-Directional Reception
This outdoor HDTV antenna is engineered for optimal signal capture from multiple directions, ensuring consistent and high-quality reception even in challenging signal environments. Featuring a compact, aerodynamic design with a durable, UV-coated ABS housing, it provides a weather-resistant solution that blends seamlessly with modern building exteriors. The unit supports both passive and amplified modes, allowing for flexible installation on roofs, balconies, or exterior walls without the bulk of traditional yagi antennas.
Technical Specifications
Model Performance Metrics
| Model | Gain | Power Supply |
|---|---|---|
| AV-165CA | 12.5dB | Passive |
| AV-165C | 36dB | DC 12V Amplified |
| AV-165CBP | 12.5dB or 36dB | Switchable (Passive/Amplified) |
- Frequency Range
- UHF 470-862MHz
- Impedance
- 75 Ω
- Noise Figure
- ≤3.5dB
Key Features
Installation Advantages
- Tool-free installation process
- Includes mounting accessories
- Suitable for roofs, balconies, and walls
- Compact design reduces wind load
- Reception Capabilities
- Multi-directionalEnhanced VHFDigital Signal Ready
Durability
Build Quality
Weather-resistantUV-coatedABS HousingDurable
