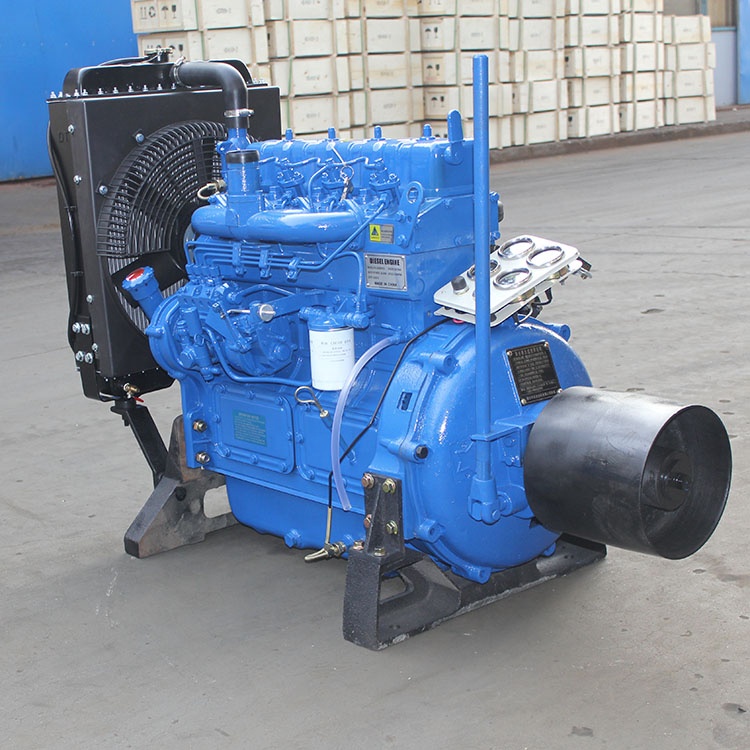

Multi-Cylinder Diesel Engine with Pulley and Clutch
This multi-cylinder diesel engine is designed for reliable power in agricultural irrigation and cement applications. Equipped with a pulley and clutch system, it offers versatile power transmission options.
Technical Specifications
Overview
High-Performance Diesel Engine Series
This series of multi-cylinder diesel engines is engineered as a four-stroke, water-cooled, direct-injection high-speed power source. Designed for reliability and efficiency, these engines feature easy starting capabilities without preheating in temperatures above -10°C and offer an impressive first overhaul interval of 8,000 hours. They are versatile power solutions ideal for agricultural irrigation, construction machinery, stationary power, and marine applications.
Power Output Range
26.5 kW
Min Power
135 kW
Max Power
1,500 rpm
Min Speed
2,800 rpm
Max Speed
Technical Specifications
Performance & Dimensions
| Model | Bore (mm) | Stroke (mm) | Cylinders | KW @ 1500rpm | Dimensions (mm) |
|---|---|---|---|---|---|
| ZH495G | 95 | 115 | L4 | 26.5 | 1360*640*920 |
| ZH495ZG | 95 | 115 | L4 | 36 | 1360*640*920 |
| ZH4100G | 100 | 115 | L4 | 30.1 | 1360*640*1000 |
| ZH4100ZG | 100 | 115 | L4 | 41.2 | 1470*700*1000 |
| R4105P | 105 | 125 | L4 | 42 | 1400*800*1200 |
- Engine Configuration
- Four-strokeWater-cooledIn-lineDirect injectingHigh-speed
Key Features
Core Characteristics
Low fuel consumptionHigh operational reliabilityHigh torque performanceEasy ignitionLow emissionSmall footprintHigh power outputLow maintenance
Applications
Suitable Industries
- Power generation
- Marine engine for generator
- Marine engine for power
- Agricultural machinery
- Construction machinery
- Stationary power
- Agriculture irrigation
- Cement production
