Technical Specifications
Product Overview
Premium Mud Pump Components
These mud pump spare parts are engineered for high-performance drilling environments, offering superior reliability for power and hydraulic systems. Designed with advanced metallurgical properties, including forged 42CrMo steel and high-strength welded structures, these components ensure long-term durability under extreme pressure. The system includes integrated cooling and lubrication management to optimize the service life of critical wear parts such as liners and pistons.
Power End Specifications
- Crankshaft Material
- Alloy Steel
- Lubrication Method
- Forced LubricationSplash Lubrication

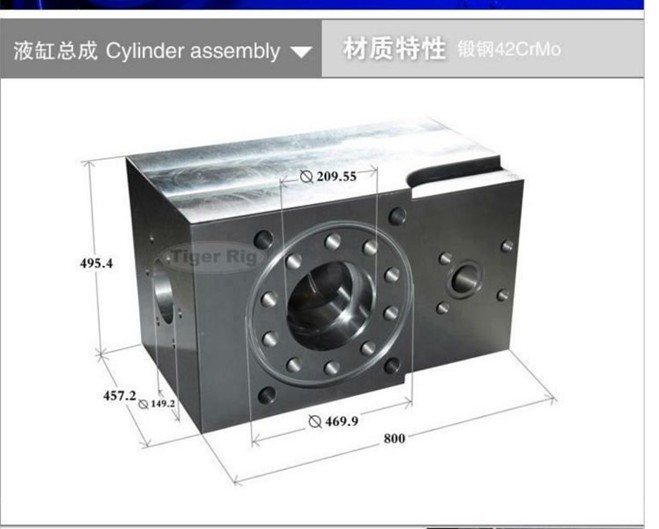

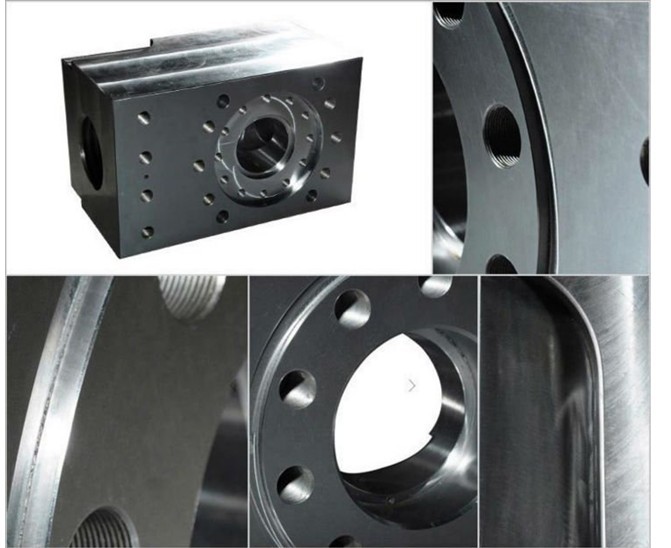

Hydraulic Cylinder Details
Technical Dimensions
| Metric | Value |
|---|---|
| Height (mm) | 495.4 |
| Width (mm) | 800 |
| Diameter (mm) | 209.55 |
- Cylinder Construction
- Forged Alloy Steel

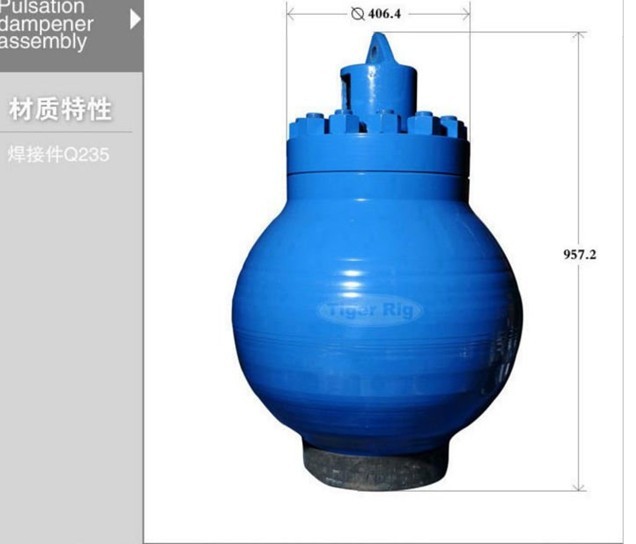

Pulsation Dampener
Dampener Properties
957.2 mm
Overall Height
406.4 mm
Top Diameter
- Dampener Material
- Welded Q235 Steel
Compatibility & Features
Compatible Series
F1600F1300F1000F800F500
