Technical Specifications
Product Overview

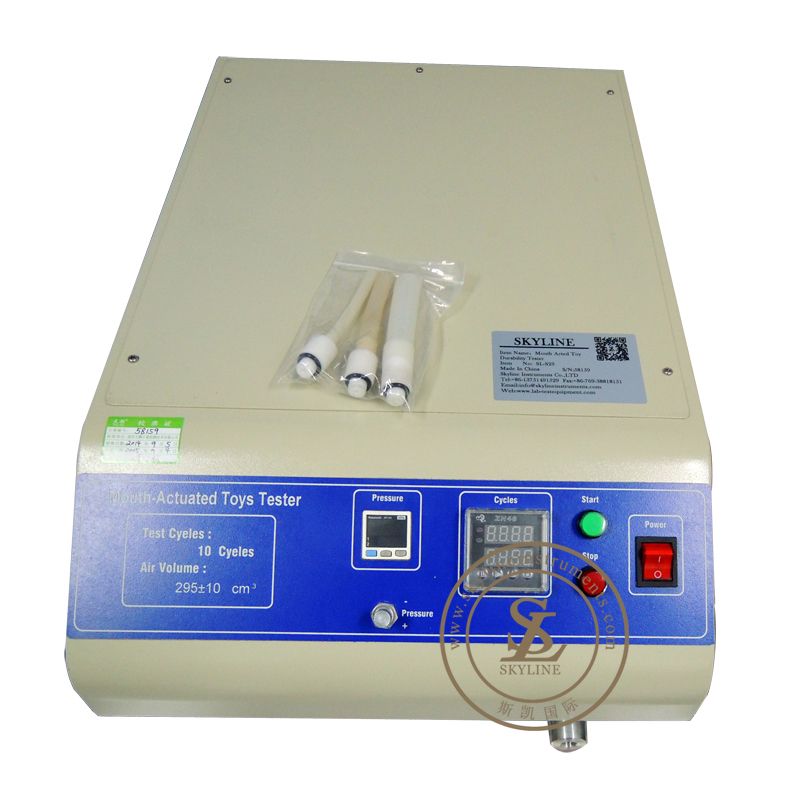

Precision Safety Testing for Mouth-Actuated Toys
This specialized testing equipment is designed to evaluate the safety and durability of mouth-actuated toys. It ensures compliance with international safety standards by simulating the repetitive blowing and suction actions a child might perform. The tester features high-precision pressure monitoring and adjustable flow controls to accurately assess structural integrity and prevent the creation of small parts during use.
Technical Specifications
- Gas Pressure Range
- 10 kgf/cm2
- Blow-Suction Flow Rate
- 295 ± 10 cm3/s
- Cycle Counter Capacity
- 9999
- Power Supply
- AC 220V, 100W
- Dimensions
- 650 x 400 x 260 mm
Compliance & Standards
- Testing Standards
- EN 71GB/T 6675ASTM F963
Operational Features
Key Capabilities
- High-precision pressure gauge
- Adjustable gas flow control valve
- Alternating blow and suction testing
- LCD display interface
- Simulates 10-cycle durability tests
