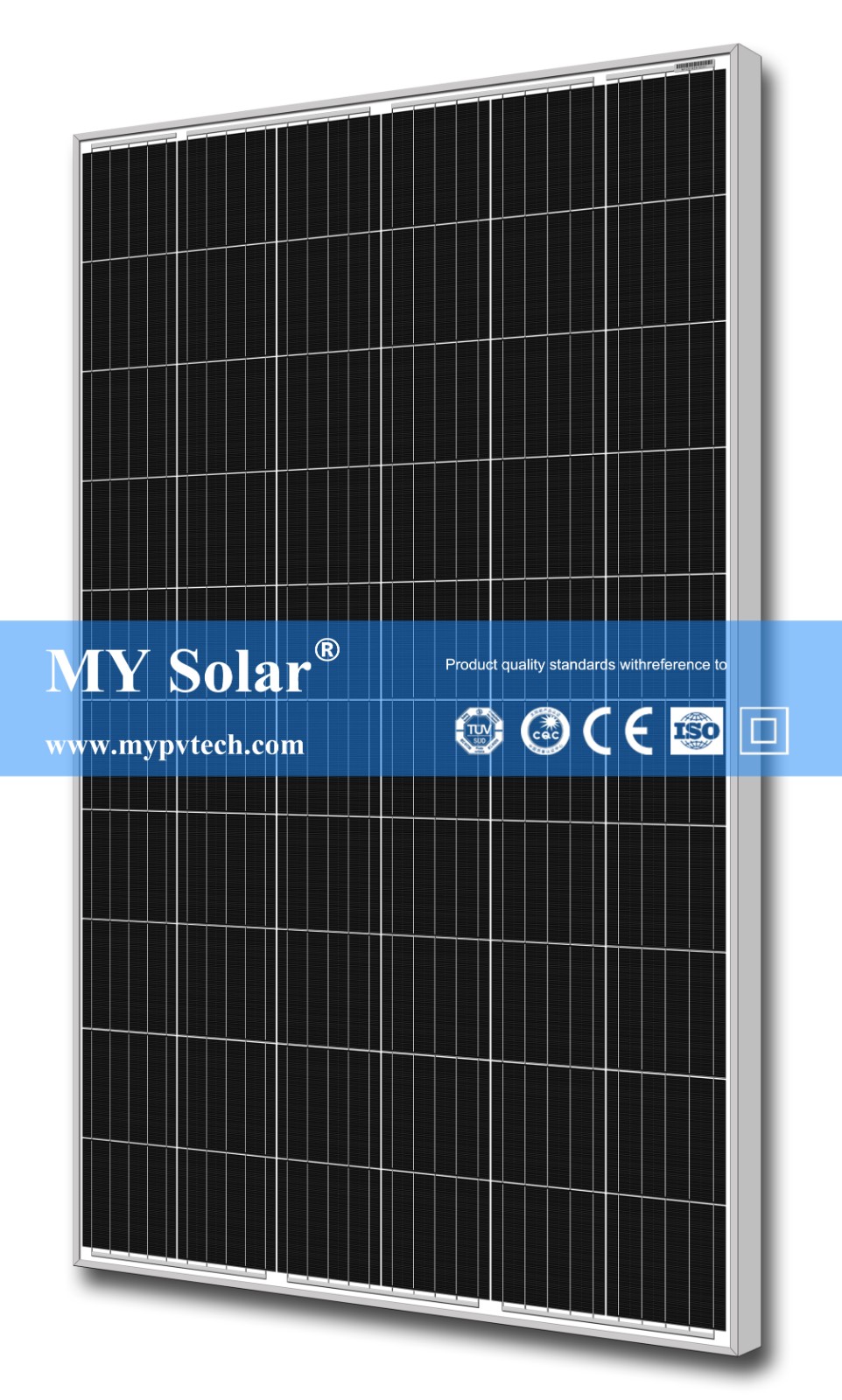

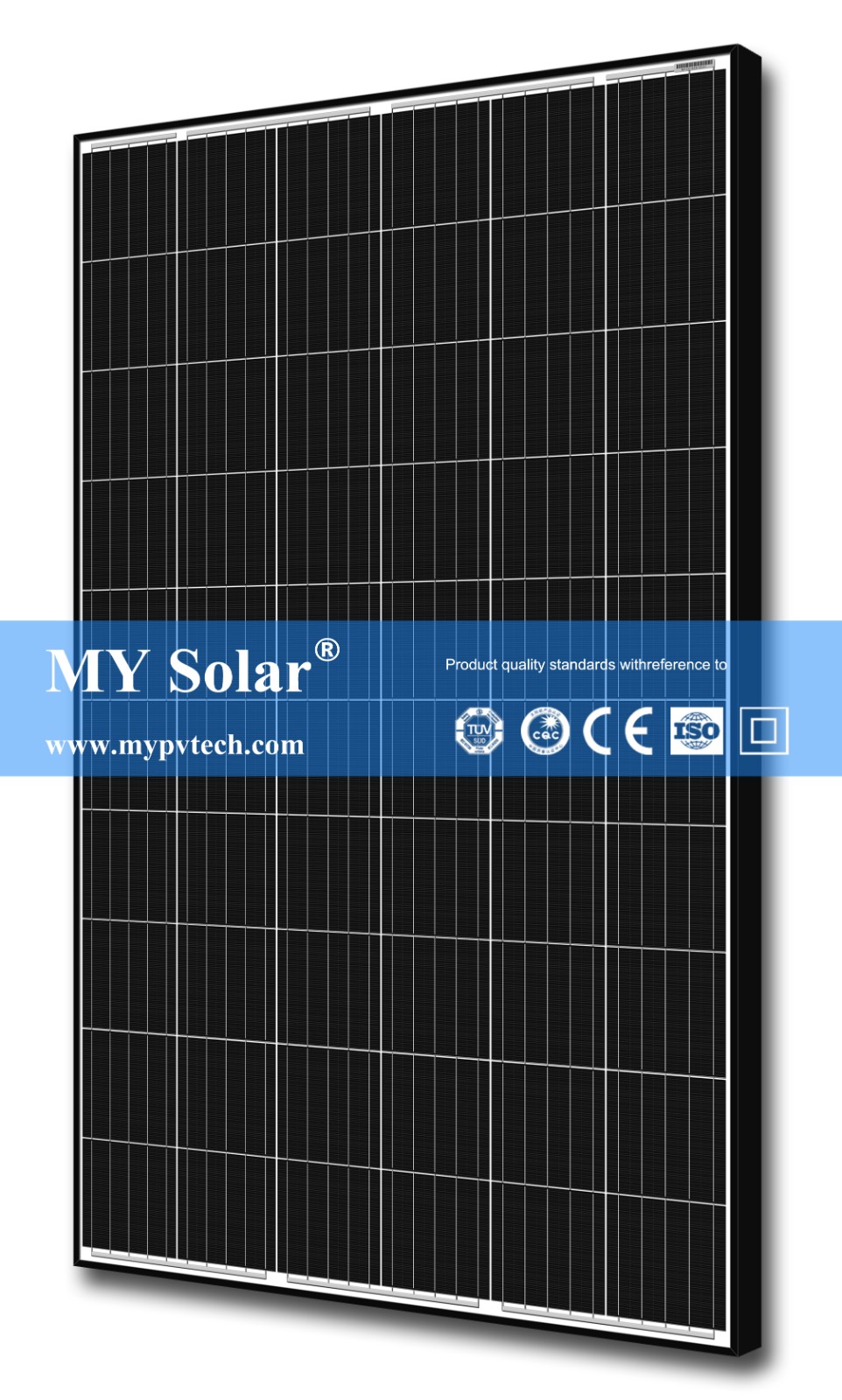

Monocrystalline Solar Panel 315W-335W
This monocrystalline solar panel utilizes 5/6/9 busbar solar cell technology to improve module efficiency. The passivated emitter rear contact (PERC) technology enhances module conversion efficiency up to 20.08%.
Technical Specifications
Overview
High-Efficiency Monocrystalline Solar Module
This high-efficiency monocrystalline solar panel, available in power outputs from 315W to 335W, is designed for optimal energy conversion in both residential and commercial applications. Utilizing advanced Passivated Emitter Rear Contact (PERC) technology and a 5/6/9 busbar design, it offers superior module efficiency of up to 20.08%. Built for durability, the panel features an anodized aluminum alloy frame and tempered glass, ensuring resilience against extreme weather conditions, including high wind and snow loads.

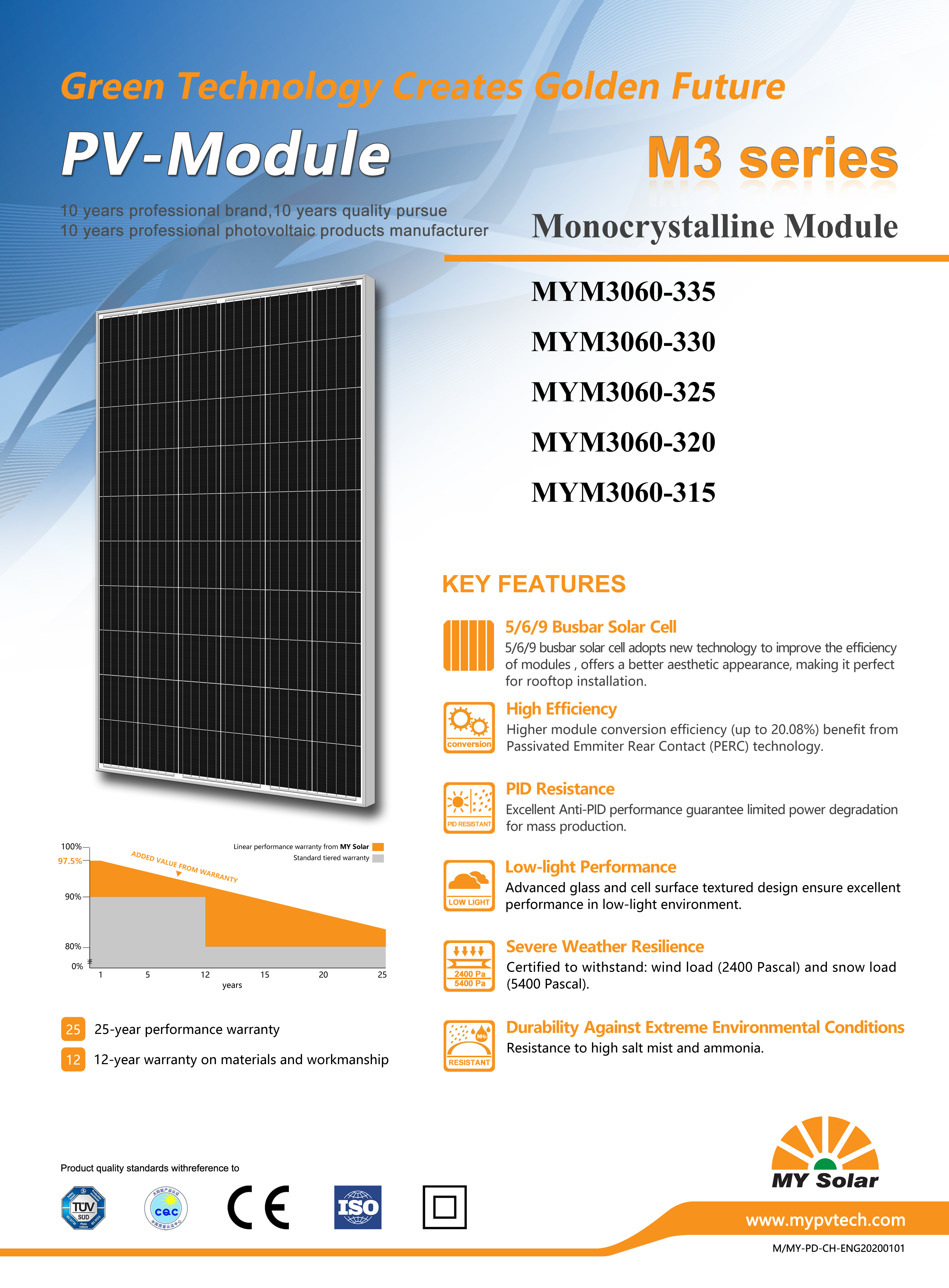

Key Features
PERC TechnologyAnti-PID PerformanceLow-light OptimizedHigh EfficiencySalt Mist & Ammonia Resistant
Electrical Specifications
Electrical Performance (STC)
| Model | Pmax (W) | Vmp (V) | Imp (A) | Voc (V) | Isc (A) |
|---|---|---|---|---|---|
| MYM3060-315 | 315 | 33.2 | 9.49 | 40.7 | 10.04 |
| MYM3060-320 | 320 | 33.4 | 9.59 | 40.9 | 10.15 |
| MYM3060-325 | 325 | 33.6 | 9.68 | 41.1 | 10.2 |
| MYM3060-330 | 330 | 33.8 | 9.77 | 41.3 | 10.31 |
| MYM3060-335 | 335 | 34 | 9.87 | 41.5 | 10.36 |
System Limits
1,500 VDC
Max System Voltage
20 A
Max Series Fuse
-40 °C
Min Operating Temp
85 °C
Max Operating Temp

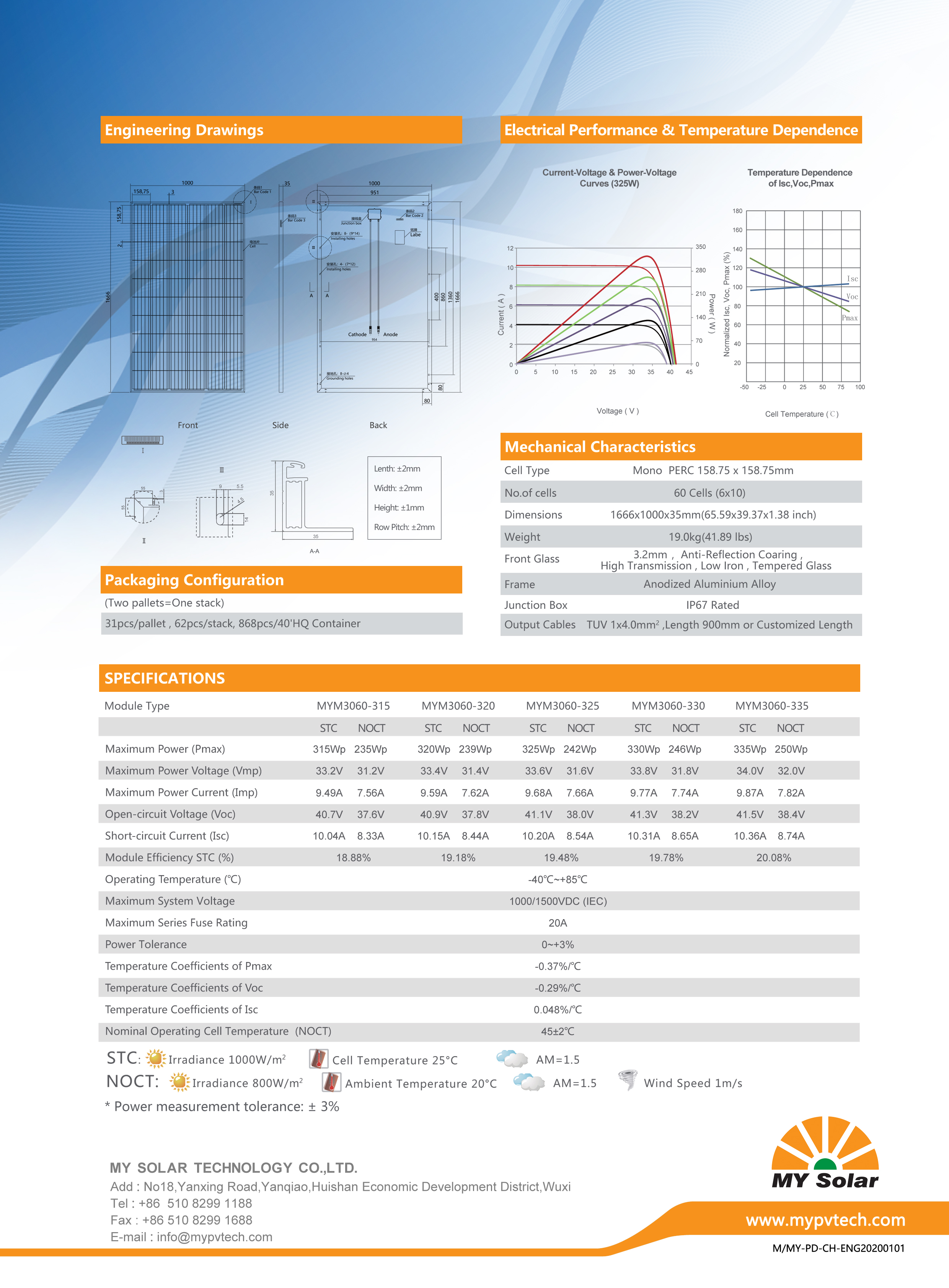

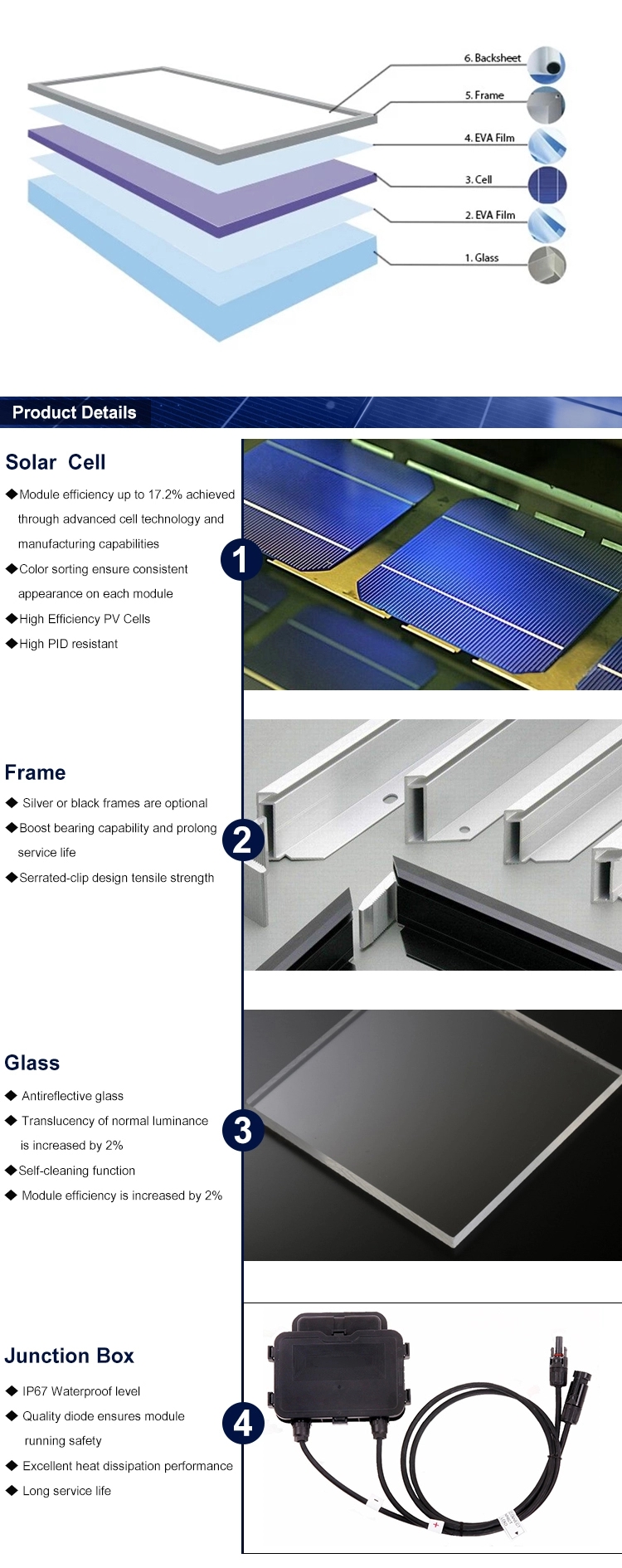

Mechanical Characteristics
Physical Specifications
- Dimensions: 1666 x 1000 x 35 mm
- Weight: 19.0 kg
- Cell Type: Mono PERC 158.75 x 158.75 mm
- Cell Configuration: 60 Cells (6x10)
- Glass: 3.2mm Anti-Reflection Coated Tempered Glass
- Frame: Anodized Aluminium Alloy
- Junction Box: IP67 Rated
Load Capacity
2,400 Pa
Wind Load
5,400 Pa
Snow Load
Certifications & Warranty
Warranty
- 12-year warranty on materials and workmanship
- 25-year performance warranty
- Certifications
- TUVCEISOCQC
