Technical Specifications
Product Overview
High-Efficiency 450W Monocrystalline Solar Module
This high-performance 72-cell monocrystalline solar panel is engineered for professional energy generation, delivering reliable power outputs ranging from 430W to 450W. Featuring advanced half-cut cell technology and a robust PERC design, the module minimizes internal current loss and maintains exceptional performance even in challenging hot-spot conditions. Designed for durability and longevity, it offers a high conversion efficiency and is certified for harsh environmental resistance, including salt-spray corrosion and system voltage endurance.
Electrical Characteristics
Performance Metrics (STC)
450 W
Max Power (Pmp)
50.4 V
Open Circuit Voltage (Voc)
11.47 A
Short Circuit Current (Isc)
41.3 V
Max Power Voltage (Vmp)
Performance Metrics (NOCT)
342 W
Max Power (Pmp)
47.76 V
Open Circuit Voltage (Voc)
9.22 A
Short Circuit Current (Isc)
38.94 V
Max Power Voltage (Vmp)
Technical Specifications

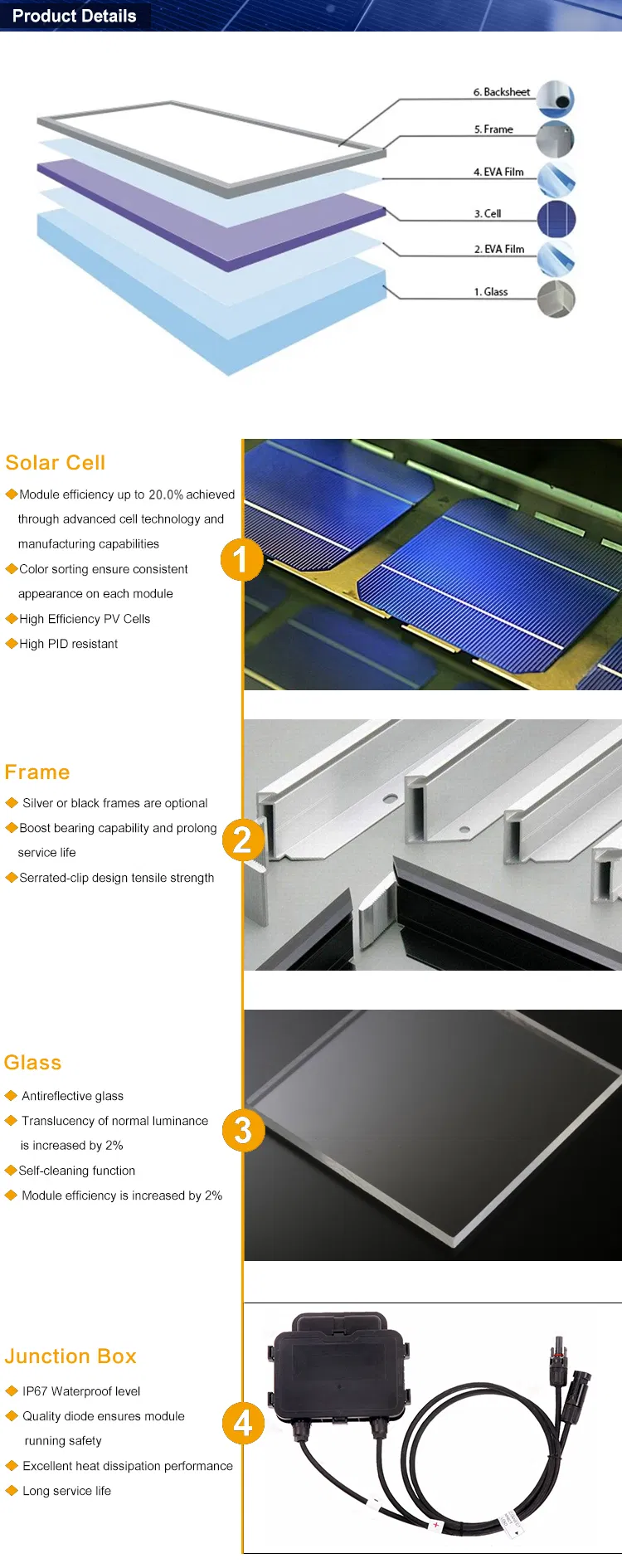

Structural Details
| Attribute | Specification |
|---|---|
| Cell Count | 144 cells (6x24) |
| Dimensions | 2108 x 1046 x 35 mm |
| Weight | 24 kg |
| Glass | 3.2mm Tempered AR Coated |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP67 Rated |
- Compliance & Standards
- CEISO 9001ISO 14001OHSAS 18001IEC61701 Salt-Spray Resistant
Temperature Ratings
Temperature Coefficients
- Pmax: -0.37%/°C
- Voc: -0.29%/°C
- Isc: +0.05%/°C
- Nominal Operating Cell Temperature: 45±2°C
