Monoblock Directional Control Valve
This monoblock directional control valve is available in 2- and 3-section configurations. It features inlet and outlet ports to simplify piping, along with safety, overload, and check valves.
Technical Specifications
Product Overview
High-Performance Monoblock Directional Control Valve
This monoblock directional control valve is engineered for demanding hydraulic systems, offering precise fluid flow control and reliable operation. Available in 2 or 3-section configurations, it features an integrated safety, overload, and check valve system for enhanced protection and easy maintenance. Designed with excellent flow characteristics and energy-saving capabilities, this valve is an ideal solution for heavy-duty machinery including loaders, bulldozers, and forestry equipment.

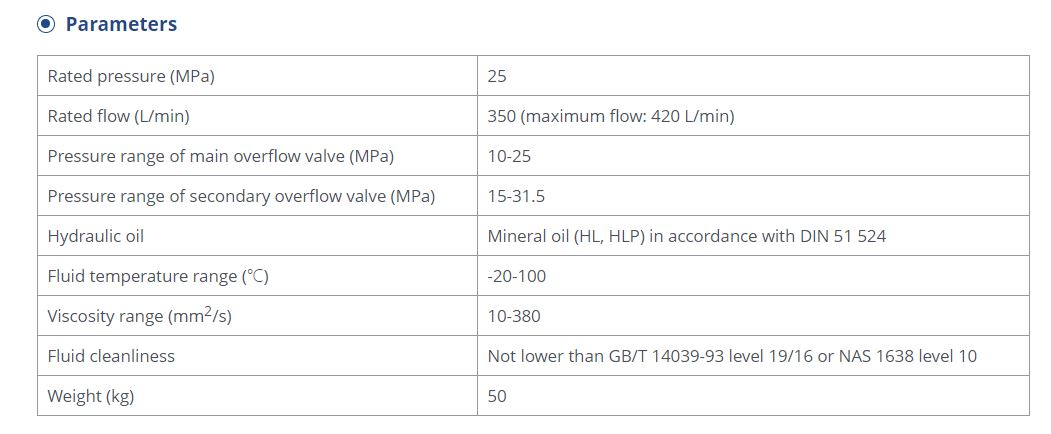

Technical Specifications
- Rated Pressure
- 25 MPa
- Rated Flow
- 350 L/min
- Maximum Flow
- 420 L/min
- Main Overflow Valve Pressure Range
- 10-25 MPa
- Secondary Overflow Valve Pressure Range
- 15-31.5 MPa
- Weight
- 50 kg
Fluid Requirements
- Hydraulic Oil Type
- Mineral oil (HL, HLP) in accordance with DIN 51 524
- Fluid Temperature Range
- -20 to 100 °C
- Viscosity Range
- 10-380 mm²/s
- Required Fluid Cleanliness
- GB/T 14039-93 level 19/16 or NAS 1638 level 10
Configuration & Features
Integrated Valve Types
Safety ValveOverload ValveCheck ValvePreload ValveRegenerative Valve
- Available Sections
- 2 Sections3 Sections
Applications
Suitable Applications
- Loader
- Bulldozer
- Agricultural machinery
- Material handling machinery
- Compactor
- Forestry machinery
- Container crane
