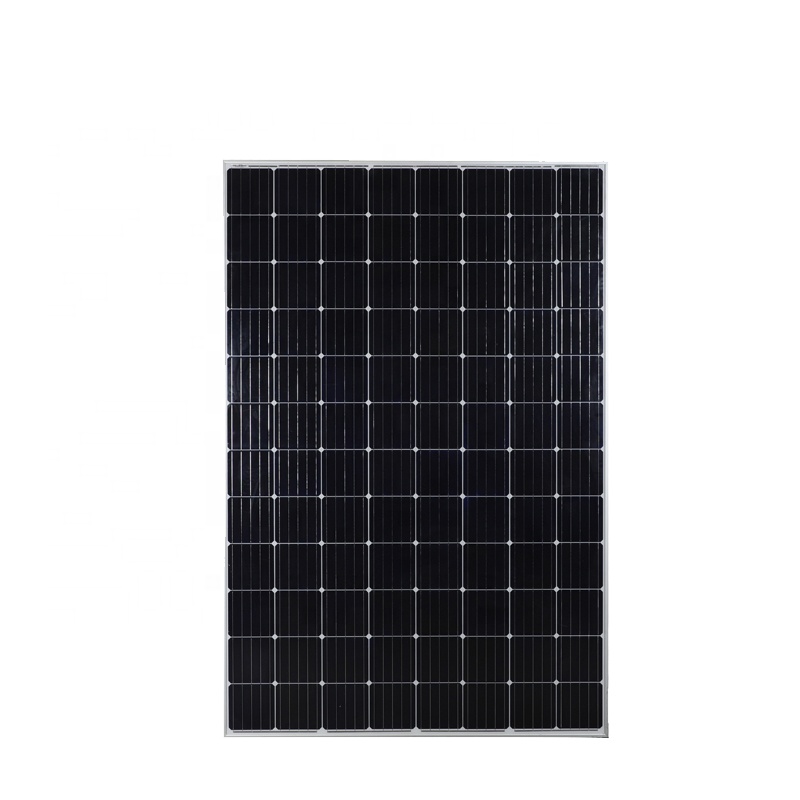

Mono-Crystalline 510W Solar Panel
This mono-crystalline solar panel is designed for efficient solar energy harvesting. It features robust construction for long-term reliability and performance in diverse conditions.
Technical Specifications
Overview
High-Efficiency Mono-Crystalline Solar Panel
This 510W mono-crystalline solar panel is engineered for optimal energy conversion and long-term reliability in diverse environmental conditions. It features robust construction with high-quality raw materials, making it suitable for residential, commercial, and utility-scale applications. With a 12-year product warranty and a 25-year peak efficiency warranty, this module offers a dependable and sustainable energy solution.
Certifications & Warranty
- Certifications
- TUVCECECISO
- Product Warranty
- 12 years
- Peak Efficiency Warranty
- 25 years
Electrical Characteristics
Performance Metrics (510W Model)
510 W
Max Power (Pmax)
49.3 V
Max Power Voltage (Vmp)
10.34 A
Max Power Current (Imp)
59.16 V
Open Circuit Voltage (Voc)
10.86 A
Short Circuit Current (Isc)
- Module Efficiency
- 20.1 %
- Power Production Tolerance
- 0 to +3%
Mechanical Specifications
Construction Materials
- 3.2 mm tempered glass front cover
- TPT (Tedlar-PET-Tedlar) back cover
- EVA encapsulant
- Aluminium alloy frame
- Dimensions
- 1956 x 1310 x 40 mm
- Weight
- 27.5 kg
Operational Limits
- Operating Temperature
- -40 to +85°C
- Max System Voltage
- 1500 V
- Max Wind/Snow Load
- 2400 Pa
