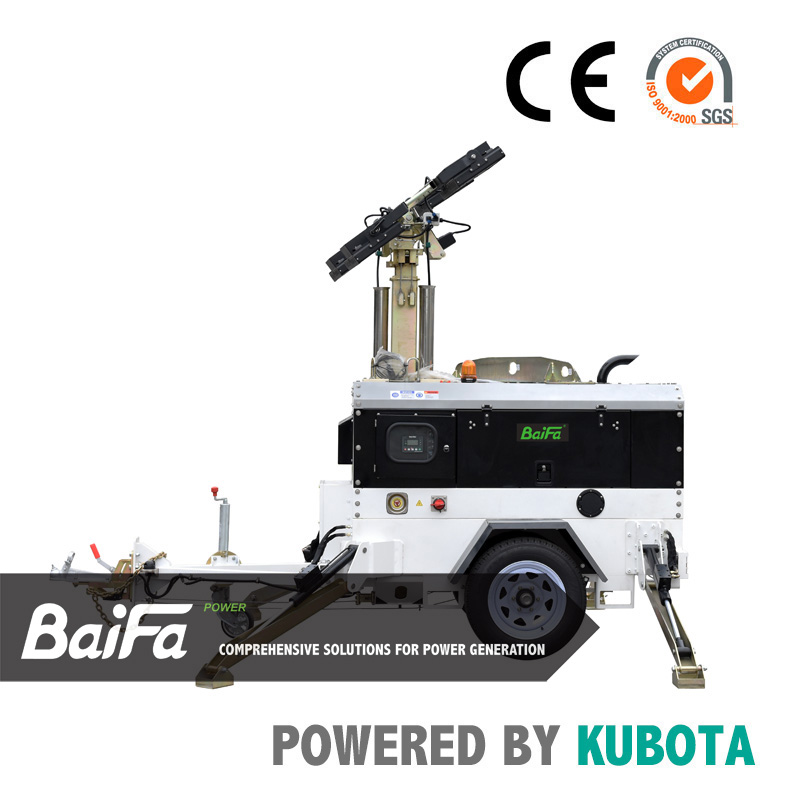

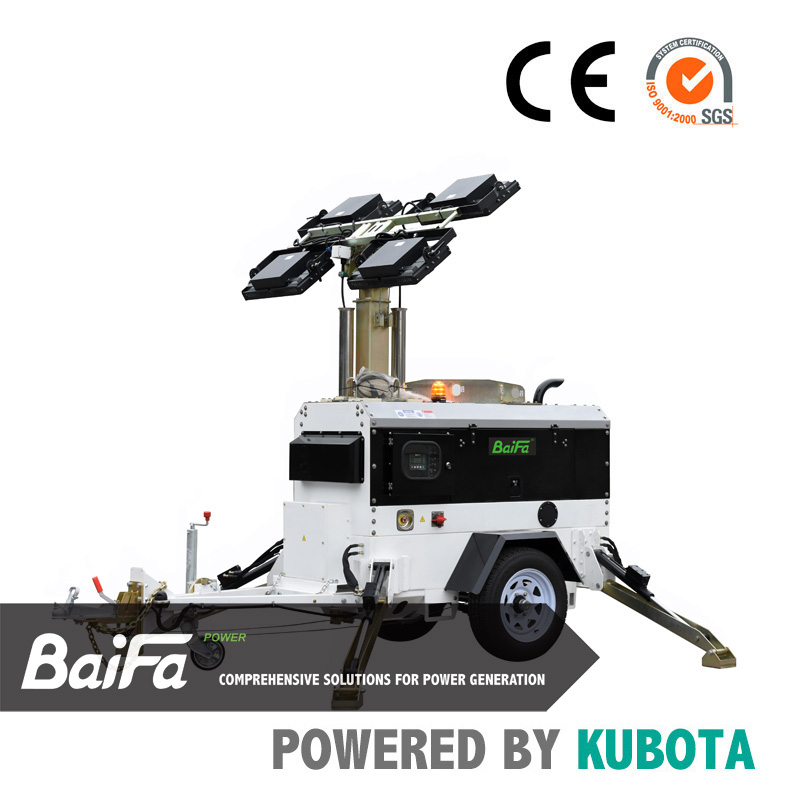

Mobile Lighting Tower with Kubota Engine
This mobile lighting tower is powered by a Kubota engine for reliable performance. It provides high-intensity illumination for construction sites, outdoor events, and emergency situations.
Technical Specifications
Overview
High-Performance Mobile Lighting Solution
This series of mobile lighting towers provides a comprehensive solution for high-intensity illumination and reliable power generation. Engineered for demanding environments like construction sites and emergency response, these units feature a telescopic mast and a robust trailer-mounted design for easy deployment. Powered by world-class engines, they ensure stable performance and extensive light coverage for any outdoor application.
Key Performance Metrics
Featured Metrics
8.7 m
Max Mast Height
1,800 rpm
Max Engine Speed
Engine Specifications
Engine Details
| Model Variant | Engine Model | Configuration |
|---|---|---|
| VTH9 G4000 / G6000 | D1105 | 3 cylinders, 4 cycles, Water cooling |
| VTH9 E1400 / E2000 | Z482 | 2 cylinders, 4 cycles, Water cooling |
Physical Dimensions
Unit Dimensions & Weight
| Parameter | Value (Metric) | Value (Imperial) |
|---|---|---|
| Total Length | 3400 mm | 11' 2" |
| Loading Length | 2285 mm | 7' 5.5" |
| Width | 1430 mm | 4' 9" |
| Transport Height | 2520 mm | 8' 3" |
| Max Extended Height | 8.7 m | 28' 7" |
- Gross Weight Range
- 1230 kg to 1450 kg
Compliance & Quality
Certifications
CEISO 9001:2000SGS
Operational Features
Mobility & Stability
- Trailer-mounted chassis
- Leveling jacks for stability
- Rugged design for industrial transport
- Integrated control panel
- Mast Type
- Telescopic with adjustable lighting heads
