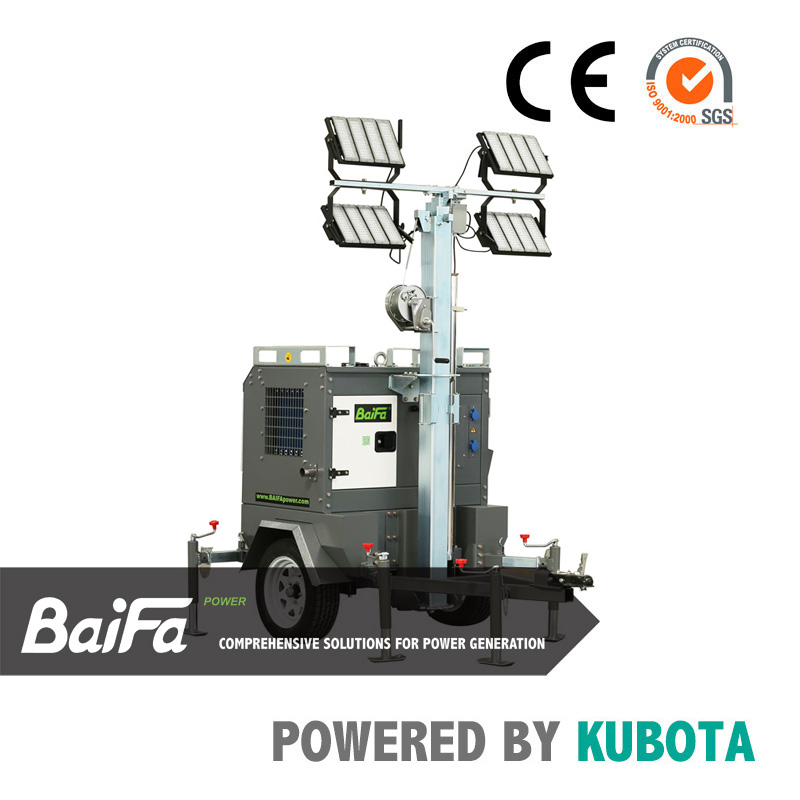

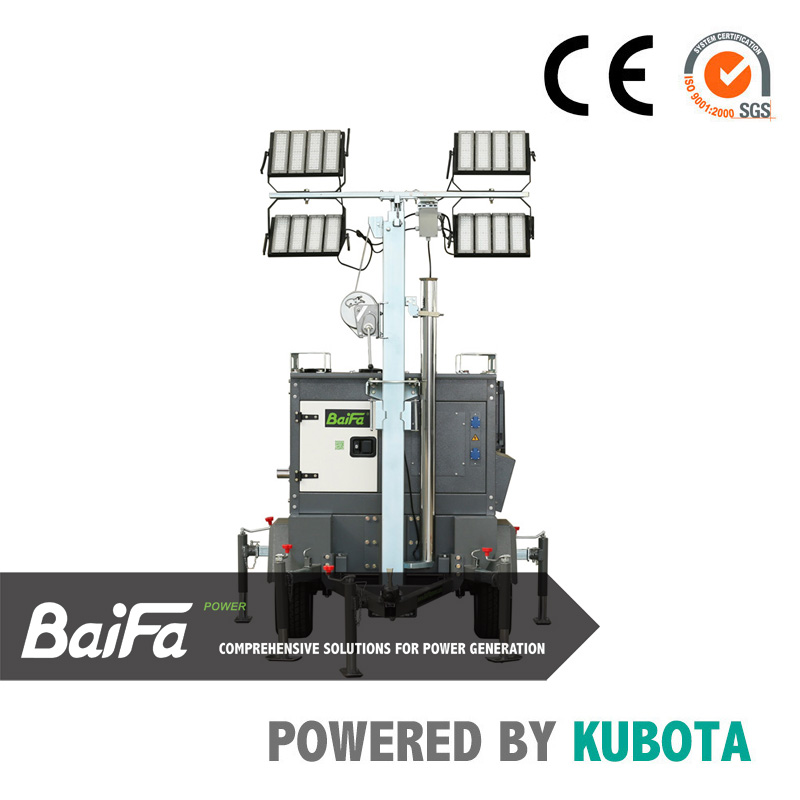

Mobile Lighting Tower
This mobile lighting tower provides a portable solution for power generation and illumination. It features high-intensity lamps on a telescopic mast, offering wide-area coverage.
Technical Specifications
Overview
Mobile Lighting Tower Series
This versatile mobile lighting tower series is engineered for high-performance illumination in demanding outdoor environments, including construction sites, emergency response zones, and large-scale outdoor events. Featuring a robust trailer-mounted design with extendable stabilizers, the unit ensures rapid deployment and stability on uneven terrain. Powered by a reliable water-cooled diesel engine, it delivers consistent power and extended operational hours to keep your site illuminated safely and efficiently.
Performance Comparison
Model Specifications Comparison
| Feature | VTM7 G2000 | VTM7 E800 | VTM7 E1400 |
|---|---|---|---|
| Light Type | 4x500W MH | 4x200W LED | 4x350W LED |
| Luminous Flux | 55,000 Lm | 30,000 Lm | 52,500 Lm |
| Gross Weight | 910 kg | 845 kg | 865 kg |
| Operating Hours | 68 hrs | 340 hrs | 196 hrs |
Engine & Power
Engine & Power
2
Cylinders
1,500 RPM
Speed
96 L
Fuel Tank Capacity
Mast & Lighting
Mast Configuration
- 4-section telescopic mast
- Manual mast extension
- 240° manual rotation with self-locking
- Manual light tilt adjustment
Trailer & Mobility
- Mobility & Transport
- Torsion axle14-inch rims100 km/h max towing speedExtendable stabilizer legs
Environmental & Safety
Safety & Environment
20 m/s
Max Wind Resistance
72 dB(A)
Acoustic Pressure (LED models)
23 IP
Protection Class
