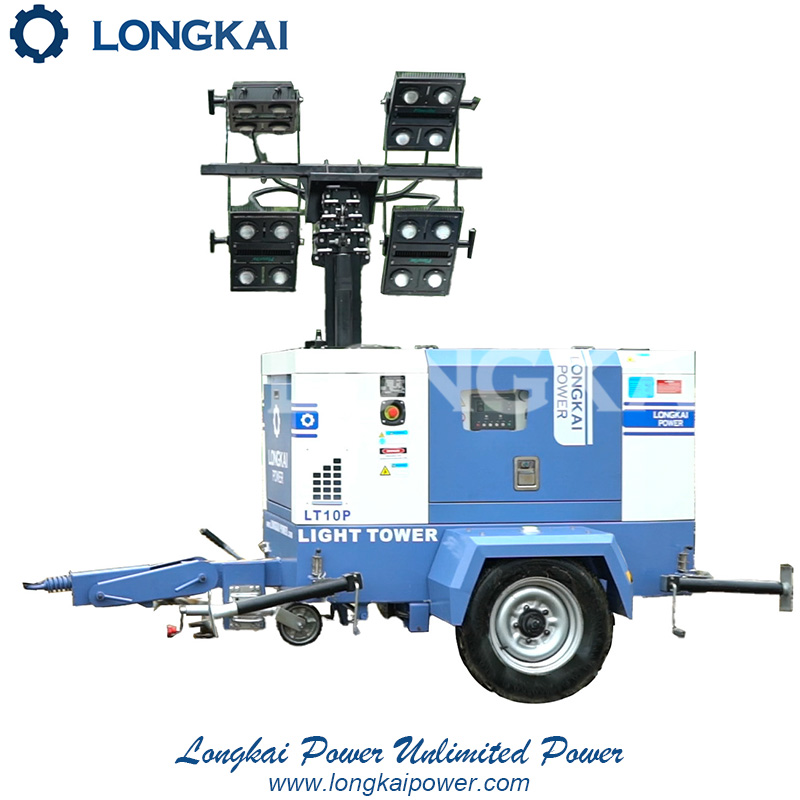

Mobile LED Lighting Tower
This mobile lighting tower provides illumination for various applications, including construction sites and events. It features high-intensity LED lights mounted on a telescopic mast for adjustable height and direction.
Technical Specifications
Overview
High-Performance Mobile Lighting Solution

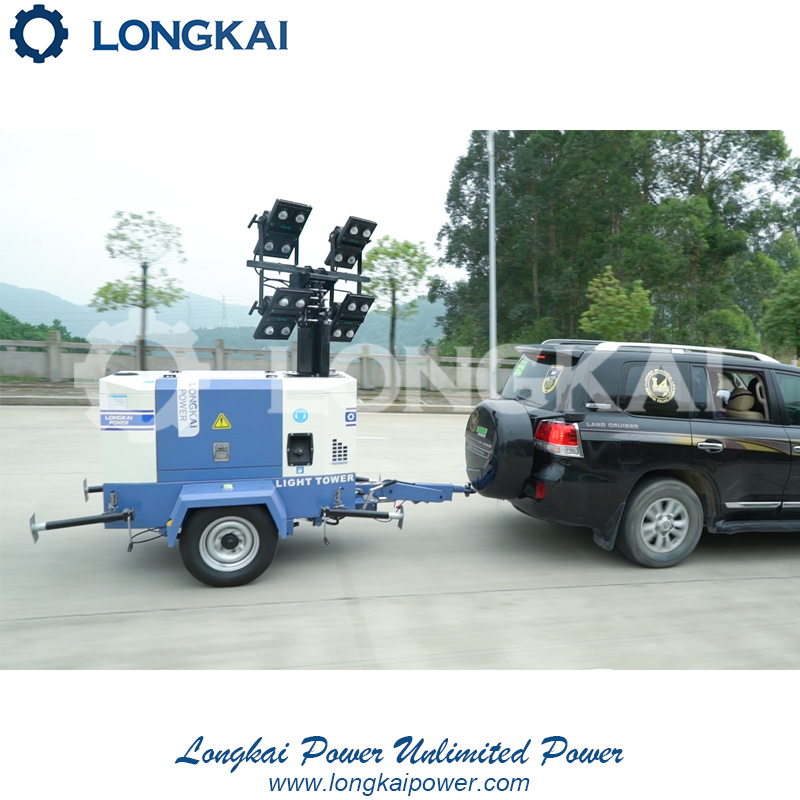

This robust mobile LED lighting tower is engineered for demanding environments, including construction sites, large-scale events, and emergency response operations. Featuring a 9-meter telescopic mast and 440,000 lumens of output, it provides extensive area coverage with 360-degree rotation capabilities. The unit is fully autonomous, powered by an integrated diesel engine, and designed for easy transport and rapid deployment.
Lighting Performance
Total Lumen Output
440,000 lm
Luminous Flux
- Efficiency
- 110 lm/W
- Number of Lights
- 4
- Total Power Output
- 4000 W
Mast & Deployment
- Mast Height
- 9 m
- Mast Extension
- Automatic or Manual
- Rotation
- 360 Degrees
- Wind Speed Resistance
- 100 km/h
Engine & Power
Alternator Details
| Feature | Specification |
|---|---|
| Type | Single Bearing |
| Protection | IP23 |
| Insulation Class | H/H |
- Engine Type
- Kubota
Safety & Control
- Control Module
- Deepsea DSE6120
- Safety Protections
- Low oil pressureHigh water tempHigh/low voltageOverspeedEmergency stopStart failure
Options & Accessories
Available Upgrades
- Battery charge
- Engine heater
- Alternator heater
- PMG
- Water oil separator
- Daily fuel tank
- Remote control panel
- Automatic transfer switch (ATS)
