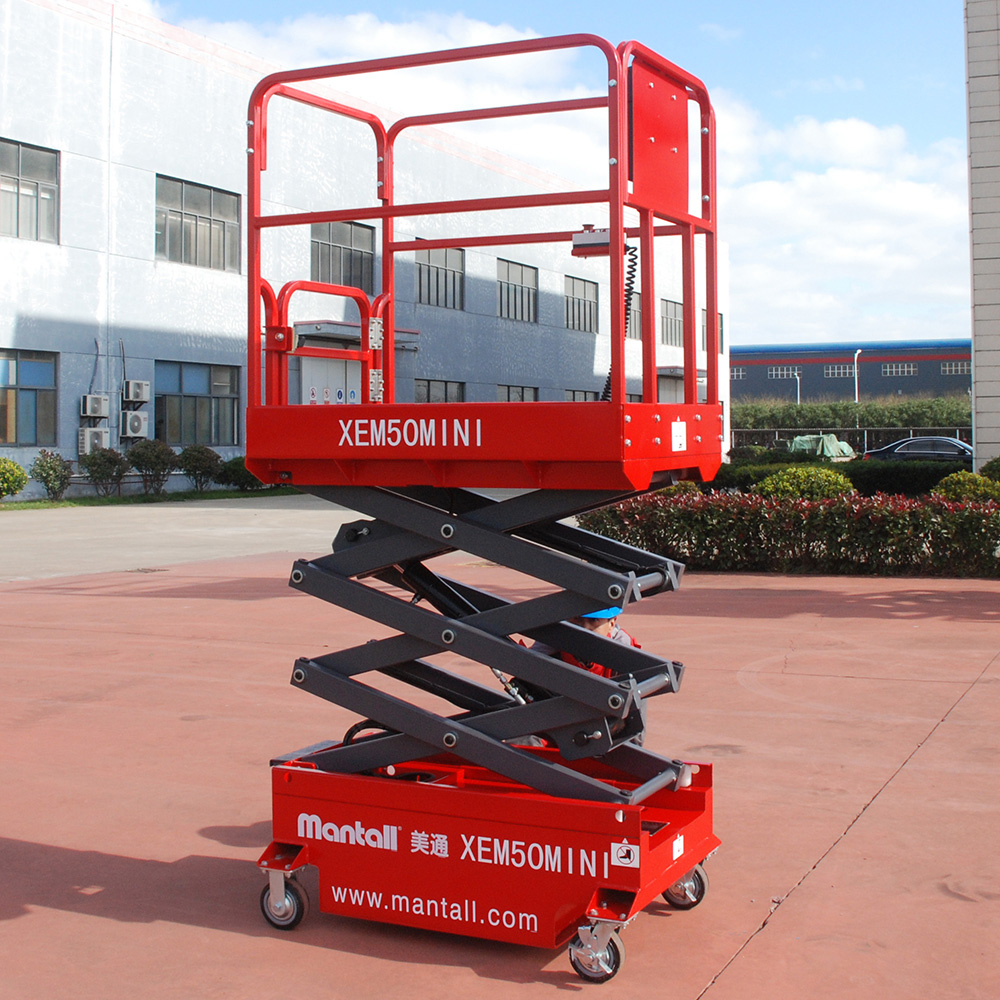

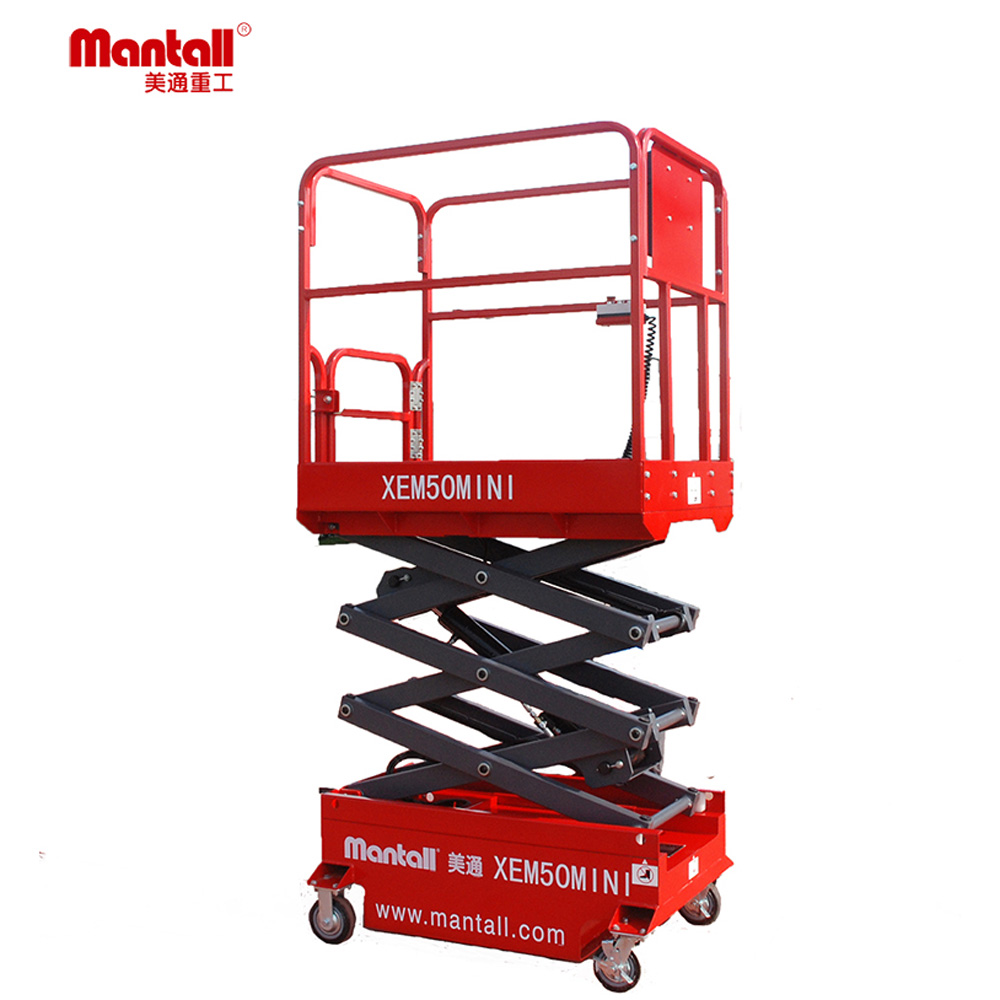

Mobile Electric Scissor Lift Platform
The mobile electric scissor lift is a versatile platform for safely elevating workers and materials. Its compact design allows easy maneuverability in tight spaces, while the robust scissor mechanism ensures stable vertical movement.
Technical Specifications
Overview
Versatile Aerial Work Platform
This Mobile Electric Scissor Lift is a self-propelled aerial work platform designed for efficient operation in both indoor and outdoor environments on flat surfaces. Its compact footprint and non-marking tires make it ideal for maintenance, installation, and construction tasks in tight spaces. Powered by rechargeable batteries, the unit offers a quiet, emission-free, and stable solution for accessing elevated work areas.
Performance Metrics
Key Performance Metrics
240 kg
Lifting Capacity
2 people
Max Load Occupancy
12 V
Power Source Voltage
Technical Specifications
Model Comparison
| Specification | XEM50MINI | XEM60MINI |
|---|---|---|
| Working Height (Max) | 5m | 6m |
| Platform Height (Max) | 3m | 4m |
| Weight | 480 kg | 565 kg |
| Stowed Height | 1.85m | 1.94m |
| Raised/Lowering Time | 28/24s | 35/18s |
Common Dimensions
- Platform Size: 1.15m x 0.76m x 1.1m
- Stowed Size: 1.15m x 0.76m
- Wheelbase: 1.07m
- Ground Clearance: 0.06m
- Skirting Board Height: 0.15m
Safety & Operation
Operational Tilt Limits
- Vertical Tilt: 2°
- Lateral Tilt: 1°
- Safety Features
- Emergency Stop ButtonTilt SensorsDescent AlarmsNon-marking TiresBattery Charge Indicator
