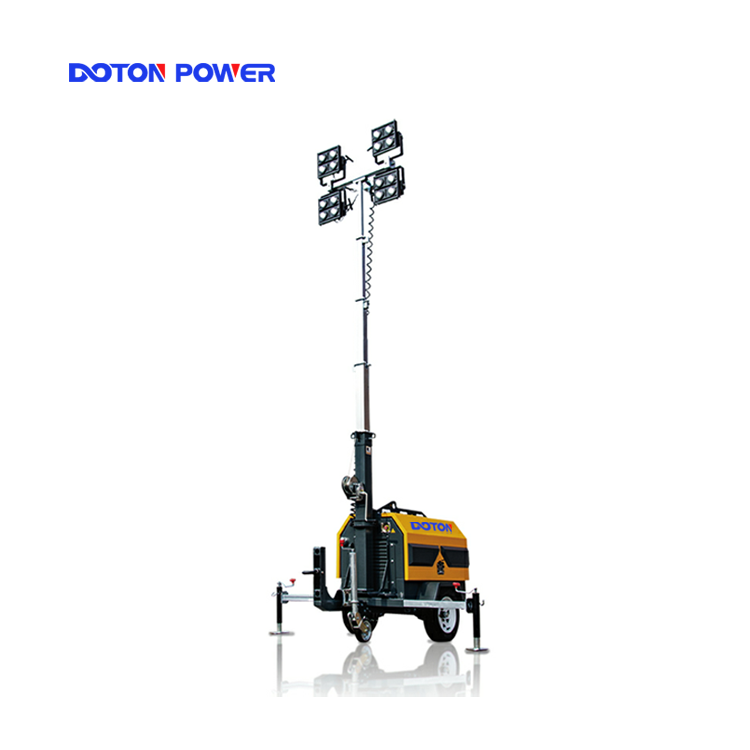

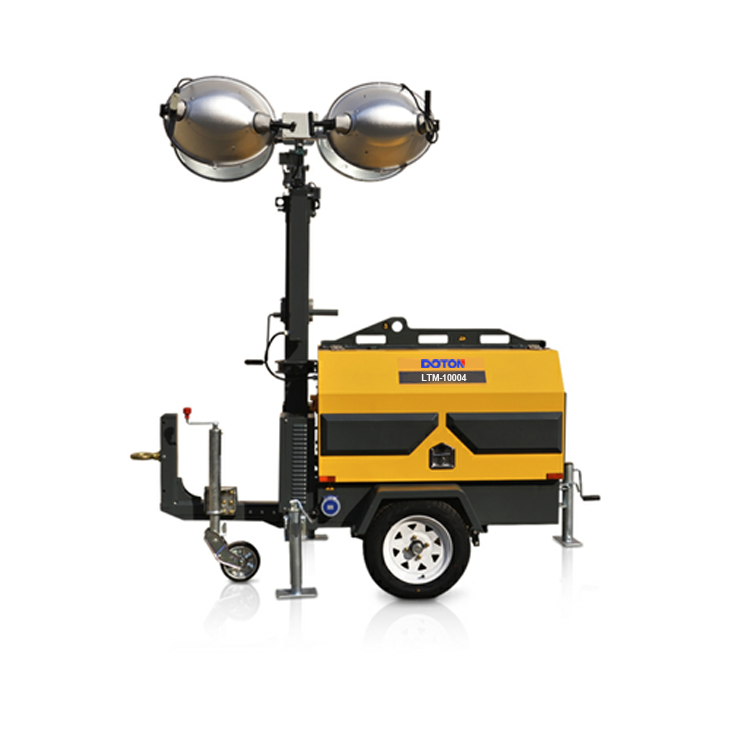

Mobile Construction Trailer Light Tower with Generator
This mobile light tower provides powerful illumination for construction sites and outdoor events. It features a 5.5-meter mast with four 1000W metal halide lamps, powered by a built-in generator.
Technical Specifications
Overview
High-Efficiency Mobile Lighting Solution
This mobile construction trailer light tower is a self-contained lighting solution designed for demanding environments like industrial construction sites, emergency response, and outdoor events. It features a robust telescopic mast reaching up to 5.5 meters, powered by an integrated generator for reliable operation in remote locations. With its durable weather-resistant enclosure and adjustable outriggers, this unit ensures stable and continuous illumination across wide areas.
Lighting Performance
Key Lighting Metrics
4,000 m2
Light Coverage
4,000 W
Total Wattage
6,000 hrs
Lamp Life
- Lamp Technology
- Metal Halide
- Lamp Configuration
- 4 x 1000W
Mast & Structure
- Maximum Mast Height
- 5.5 m
- Mast Operation
- Vertical Manual
- Winch Capacity
- 2500 lbs
Chassis & Mobility
- Tire Specification
- 145/70R12
- Mobility Features
- Inflatable WheelsAdjustable Tow-barEyelet Hitch4 Adjustable Standing Legs

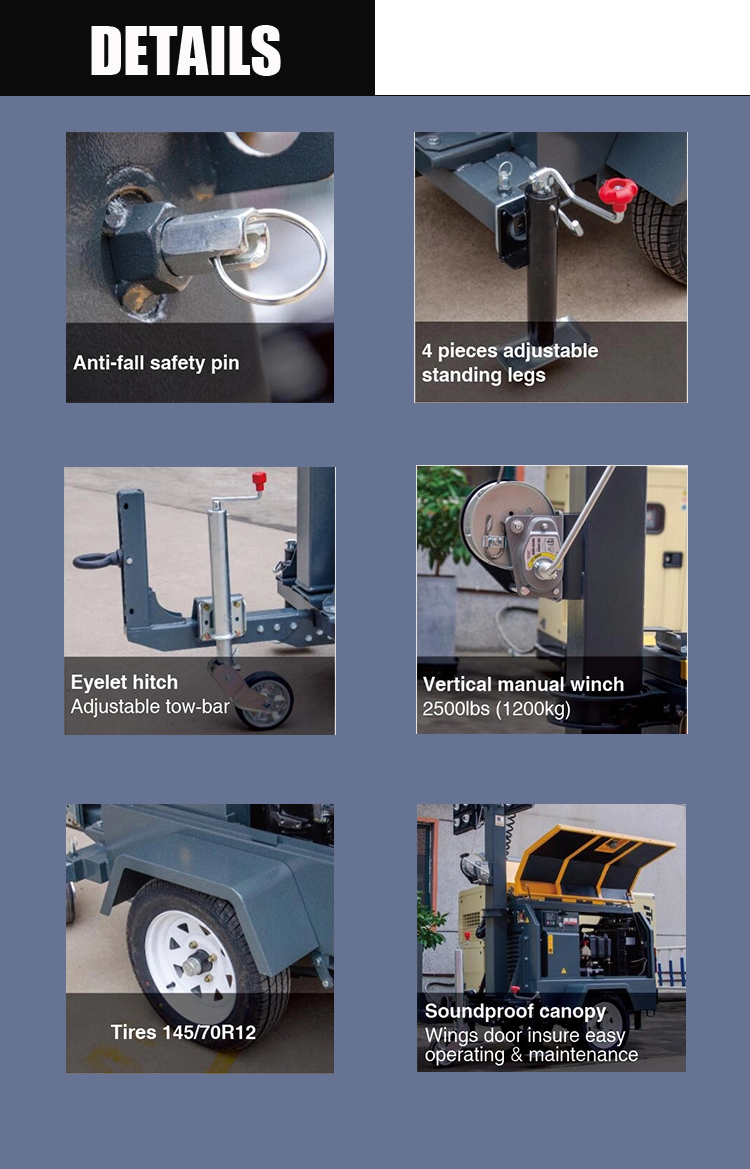

Protection & Durability
Enclosure Features
- Soundproof canopy
- Wing doors for easy maintenance
- Rain-proof circuit breaker box
- Rain-proof terminal box
- Anti-fall safety pin
Technical Specifications
Model Comparison Table
| Feature | LTM-1504 | LTM-4004 | LTM-10004 |
|---|---|---|---|
| Lamps | LED | Metal Halide | Metal Halide |
| Wattage | 4*150W | 4*400W | 4*1000W |
| Coverage (20 lux) | 2500m2 | 2000m2 | 4000m2 |
| Lamp Life | 30000 hrs | 6000 hrs | 6000 hrs |

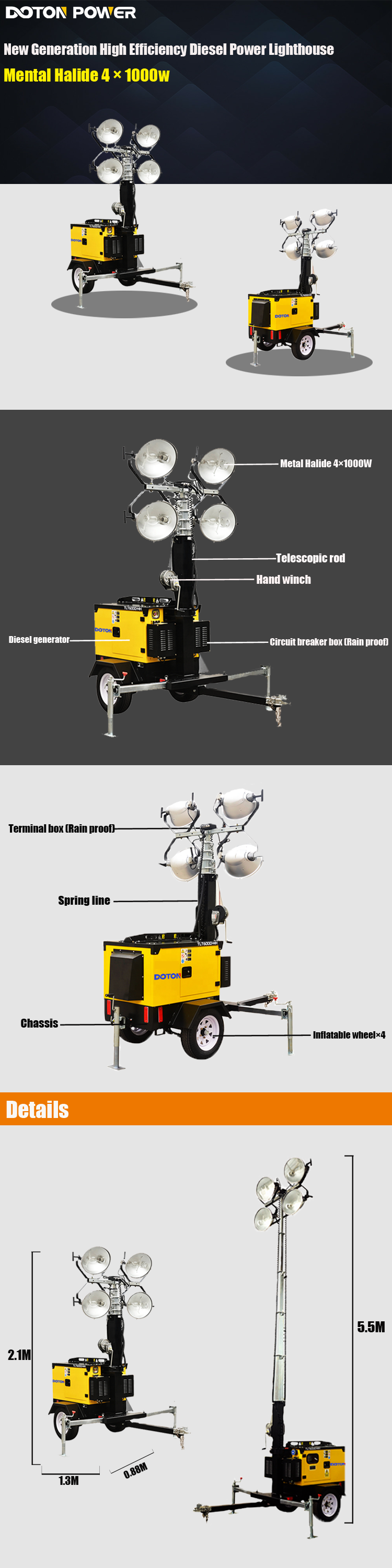

Dimensions
- Stowed Height
- 2.1 m
- Base Size (L x W)
- 1.3m x 0.88m
