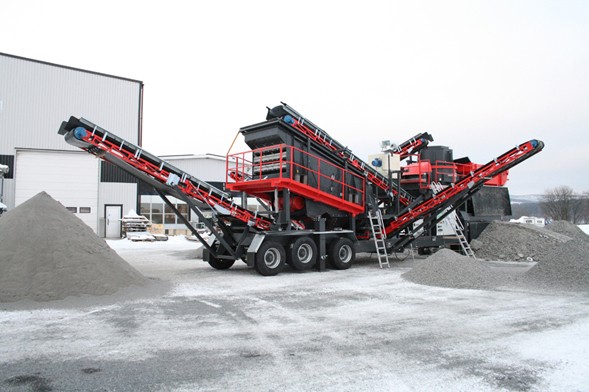

Mobile Cone Crusher and Screening Plant
This mobile plant combines cone crushing and screening functions for efficient material processing. Equipped with a cone crusher and conveyors, it quickly moves to handle materials and produce fine-grained sand and gravel products.
Technical Specifications
Overview
Mobile Cone Crusher and Screening Plant

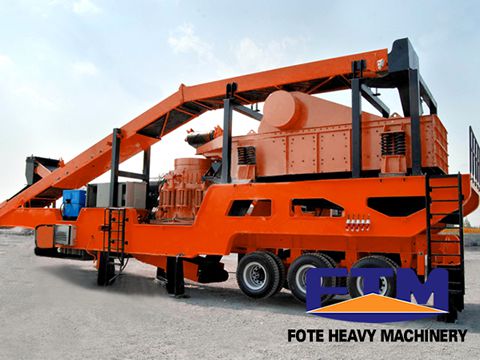

This tire-type mobile crushing and screening station offers a high-capacity solution for mining, construction, and infrastructure projects. It integrates a primary cone crusher with a circular vibrating screen in a closed-loop system, enabling the efficient production of fine-grained, high-hardness aggregates. The entire unit is mobile and designed for rapid deployment, providing significant operational flexibility and productivity for on-site material processing.
Key Features
- Applications
- MiningConstructionRailway ConstructionHighway ProjectsAggregate Production
Technical Specifications
Model Specifications
| Feature | FTM3S184PYF90 | FTM3S186PYF13 | FTM3S1860PYG11 |
|---|---|---|---|
| Weight (t) | 34.5 | 49.5 | 41 |
| Tyre Configuration | Dual-axial | Tri-axial | Tri-axial |
| Cone Crusher Model | PYF900 | PYF1300 | PYG1100 |
| Vibrating Screen | 3YZS1848 | 3YZS1860 | 3YZS1860 |
Transportation Dimensions
3,100 mm
Transportation Width
4,500 mm
Max Transportation Height
