Technical Specifications
Product Overview
Robust Mixed Flow Pumping Solution

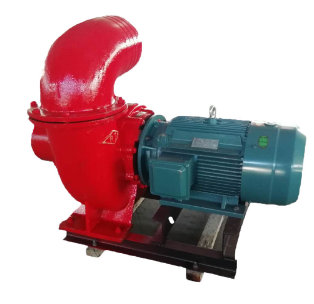

This mixed flow pump is engineered to bridge the gap between centrifugal and axial flow pumps, delivering high flow rates at moderate heads. Designed for reliability, the unit features a durable cast iron casing and impeller to withstand demanding industrial environments. It is powered by a high-efficiency electric motor, making it an ideal choice for water supply, irrigation, drainage, and large-scale industrial fluid transfer.
Application Details
- Primary Applications
- Water SupplyDrip IrrigationIndustrial DrainageFluid Transfer
Technical Specifications
Performance Models
| Model | Flow Rate (m³/h) | Head (m) | Power (kW) | Speed (r/min) |
|---|---|---|---|---|
| RT200-8Z | 460 | 8 | 11 | 1,450 |
| RT250-15Z | 720 | 15 | 22 | 1,450 |
| RT300-8Z | 910 | 8 | 22 | 970 |
| RT300-10Z | 800 | 10 | 22 | 970 |
| RT300-11Z | 910 | 11 | 30 | 970 |
| RT350-8Z | 1,220 | 8 | 30 | 970 |
Construction
- Material Composition
- Durable cast iron casing and impeller
