Technical Specifications
Product Overview
Compact Performance
The Miniature N20 Geared Motor is engineered for high-efficiency operation in space-constrained environments. It offers superior reliability, quiet performance, and precise control, making it an ideal component for portable electronics and battery-operated devices. With low current consumption and dynamic response, it provides a dependable solution for modern precision mechanisms.

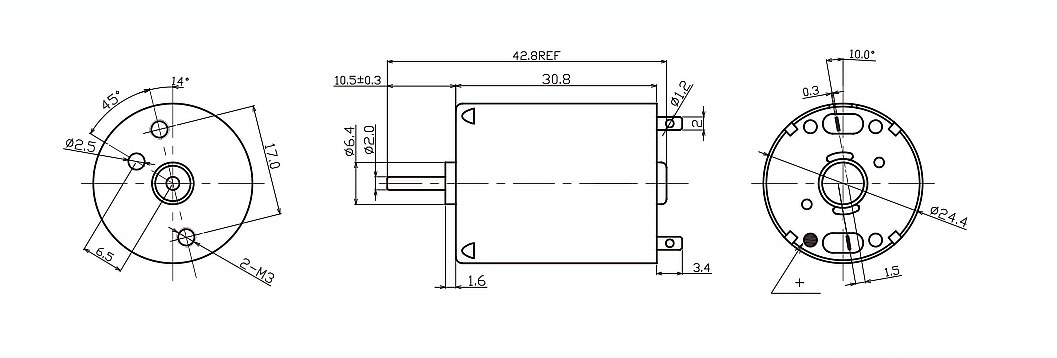

Physical Dimensions
Output Shaft
| Dimension | Value |
|---|---|
| Diameter | 2.0 mm |
| Length | 10.5 ± 0.3 mm |
Mounting Specifications
- Front faceplate diameter: 17.0 mm
- Mounting holes: 2-M3 screws
- Auxiliary mounting holes: 2.5 mm diameter, 45° angle, 6.5 mm spacing
- Rear faceplate: 24.4 mm diameter, 0.3 mm thickness
- Mounting tab diameter: 1.2 mm
- Motor Body Length
- 30.8 mm
- Reference Length
- 42.8 mm
Performance Features
Key Advantages
Quiet OperationLow InertiaEnergy EfficientLow CoggingBattery Compatible
- Typical Applications
- Portable MedicalSmart ElectronicsLED LightingHand ToolsWearablesPersonal HygieneCooling Modules
