Miniature DC Motor for Game Controllers
This miniature DC motor is commonly used in game controllers and small electronic devices. It provides rotational motion for haptic feedback and other functions.
Technical Specifications
Product Overview

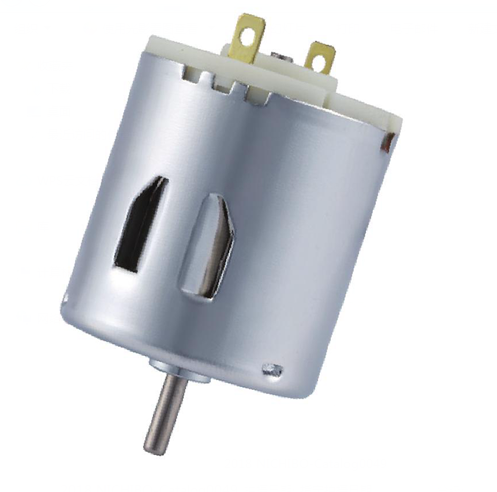

Precision Miniature DC Motor
This compact DC motor is specifically engineered for high-performance applications such as game controllers and precision electronic devices. Featuring a robust metal housing and efficient rotational capabilities, it provides reliable haptic feedback and mechanical motion. Its standardized design ensures compatibility with common mounting requirements, making it an ideal choice for compact electronic assemblies.
Physical Dimensions
- Diameter
- 27.6 mm
- Body Length
- 53 mm
- Shaft Diameter
- 3.17 mm
- Weight
- 120 g
Mounting & Installation
- Mounting Holes
- M3x0.5 (JIS)
Electrical Specifications
- Recommended Varistor Voltage
- 27.0 to 45.0 VDC
Performance Data
Performance Characteristics
| Model | Voltage | Max Speed (RPM) | Max Output (W) |
|---|---|---|---|
| RK-525B-15180S | 24.0V | 8,850 | 12 |
| RK-525B-2480 | 12.0V | 9,600 | 15 |
Design Features
- Key Features
- Metal HousingCompact DesignHaptic Feedback ReadyFront & Rear Mounting Holes
