Miniature DC Gear Motor
This miniature DC gear motor features a compact design with a metal gearbox. It is equipped with a 5-pin connector for easy integration into electronic circuits and is suitable for robotics and automation applications.
Technical Specifications
Overview
Precision Miniature Gear Motor
The VGSM3002 is a compact, high-precision DC gear motor designed for demanding applications in robotics, automation, and motion control. Featuring a durable metal gearbox and a 1:85 reduction ratio, it delivers reliable torque and consistent performance. This motor is engineered for easy integration into electronic circuits, complete with a standard 5-pin connector and clearly defined wiring specifications.
Electrical Specifications
- Rated Voltage
- 12 V
- Resistance
- 130 ±7% Ω
Performance Metrics
Key Performance Indicators
500 Hz
Pull-in Frequency (No-load)
700 Hz
Pull-out Frequency (No-load)
100 mN.m
Pull-in Torque (1:85)
150 mN.m
Cogging Torque
Mechanical Specifications
Mounting
- M2 screw holes
- Hole depth: 3.5mm
- Gearbox Ratio
- 1:85
- Step Angle
- 7.5°/85

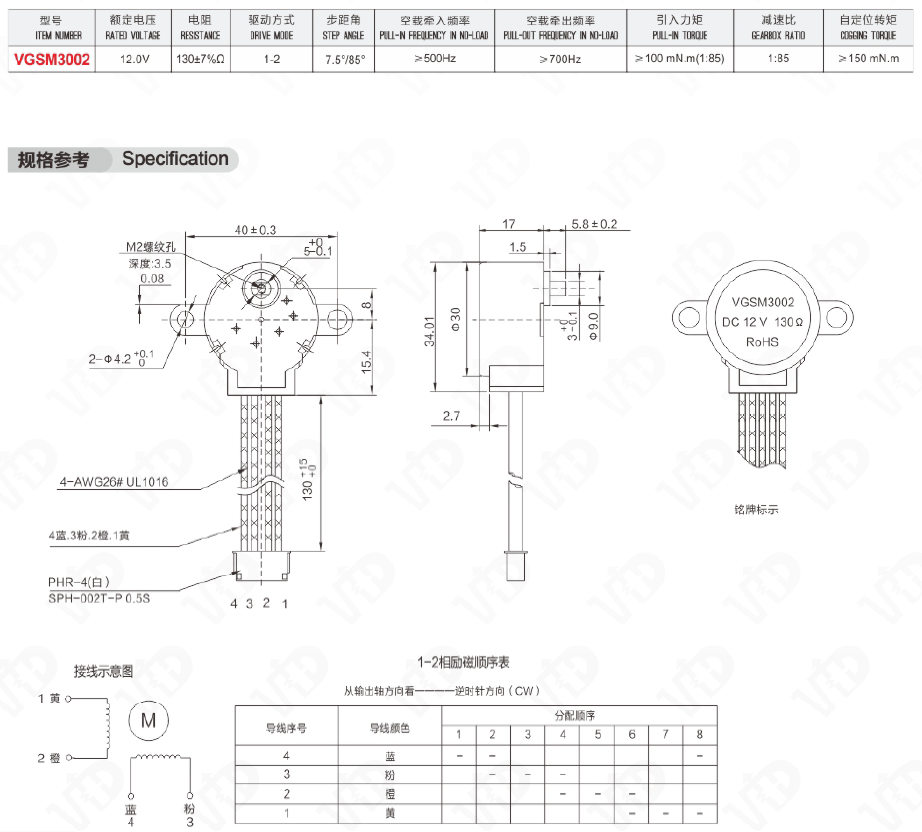

Wiring and Connectivity
Wiring Configuration
| Wire Color | Quantity |
|---|---|
| Blue | 4 |
| Pink | 3 |
| Orange | 2 |
| Yellow | 1 |
- Connector Type
- PHR-4 (white) SPH-002T-P 0.5S
Compliance and Standards
Certifications
RoHS
