Miniature DC Gear Motor
This miniature DC gear motor features a compact design with an integrated gearbox. It is suited for robotics, automation, and hobby projects requiring precise motion control.
Technical Specifications
Product Overview
Miniature DC Gear Motor VFM12 Series
The VFM12 series is a compact, high-efficiency DC gear motor designed for applications requiring precise motion control in limited spaces. Featuring an integrated gearbox, these motors provide increased torque and reduced speed, making them ideal for robotics, automation, and hobbyist engineering projects. The durable construction ensures minimal backlash and reliable long-term operation.
Technical Specifications
Model Performance Data
| Model | Voltage | No-Load Speed | No-Load Current | Sliding Torque |
|---|---|---|---|---|
| VFM1238 | 3.7 VDC | 25 RPM ±3% | 40mA Max. | 282 ± 56.4 gf.cm |
| VFM1232 | 6.0 VDC | 50 ±5 RPM | 40mA Max. | 500 gf.cm |
| VFM1235 | 3.7 VDC | 220 RPM ±10% | 45mA Max. | 300 gf.cm |

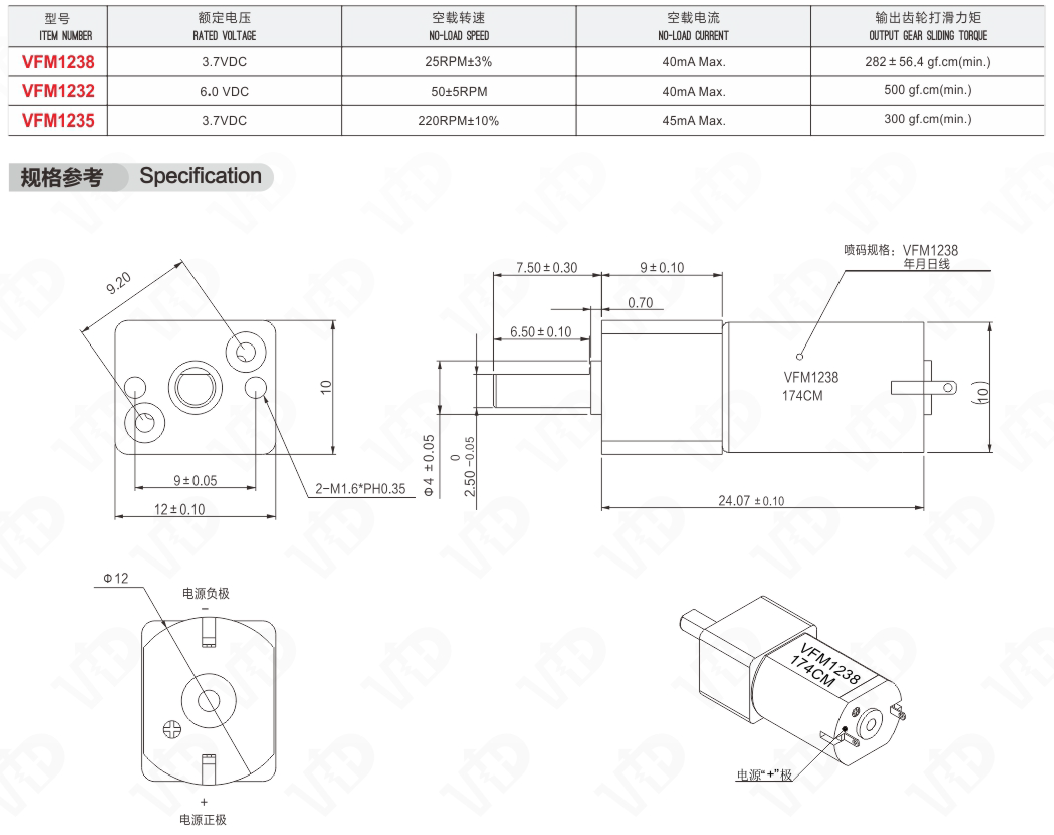

Physical Dimensions
Motor Body Dimensions
12 mm
Body Diameter
24.07 mm
Body Length
Shaft Specifications
4 mm
Shaft Diameter
2.5 mm
Shaft Length
Features
- Ideal Applications
- RoboticsAutomationHobby ProjectsMotion Control
