Miniature Current Transformer for Power Monitoring
Miniature current transformers are designed for precise current measurement. They are suitable for use in electronic devices and power monitoring systems.
Technical Specifications
Product Overview

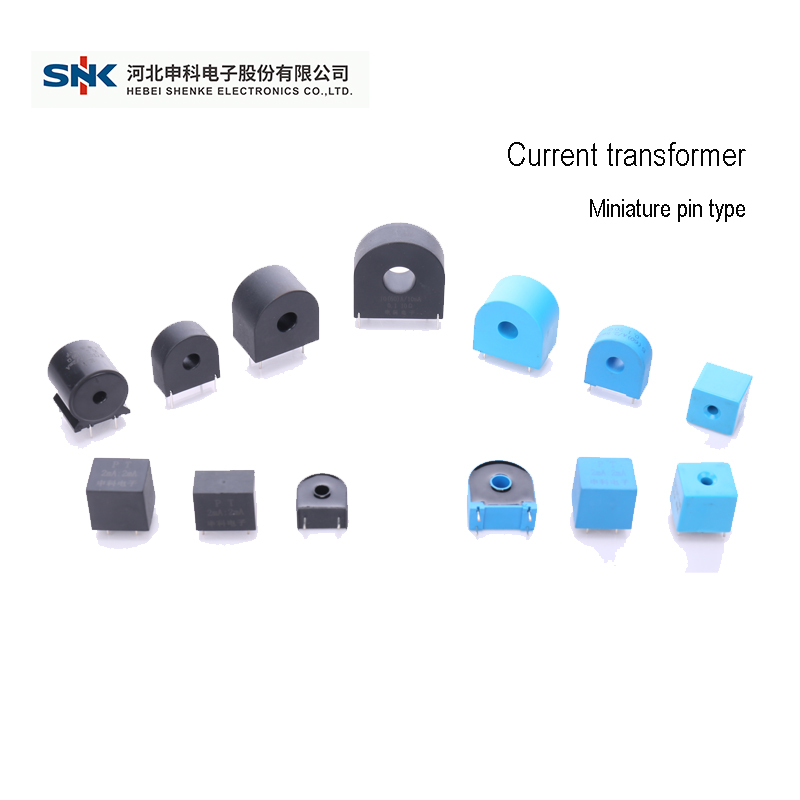

High-Precision Miniature Current Transformers
These miniature pin-type current transformers are engineered for precise current measurement across a wide range of electronic devices and power monitoring systems. Designed for versatility, they offer high accuracy, low phase shift, and excellent linearity to ensure reliable data in industrial automation and energy management. With multiple configurations and customization options available, these transformers provide a robust solution for both power transmission and distribution applications.
Key Performance Metrics
Performance Highlights
High
Accuracy Level
Low
Phase Shift
Technical Specifications
Customization Parameters
- Turns ratio
- Burden resistance
- Insulation voltage
- Size and configuration
- Available Types

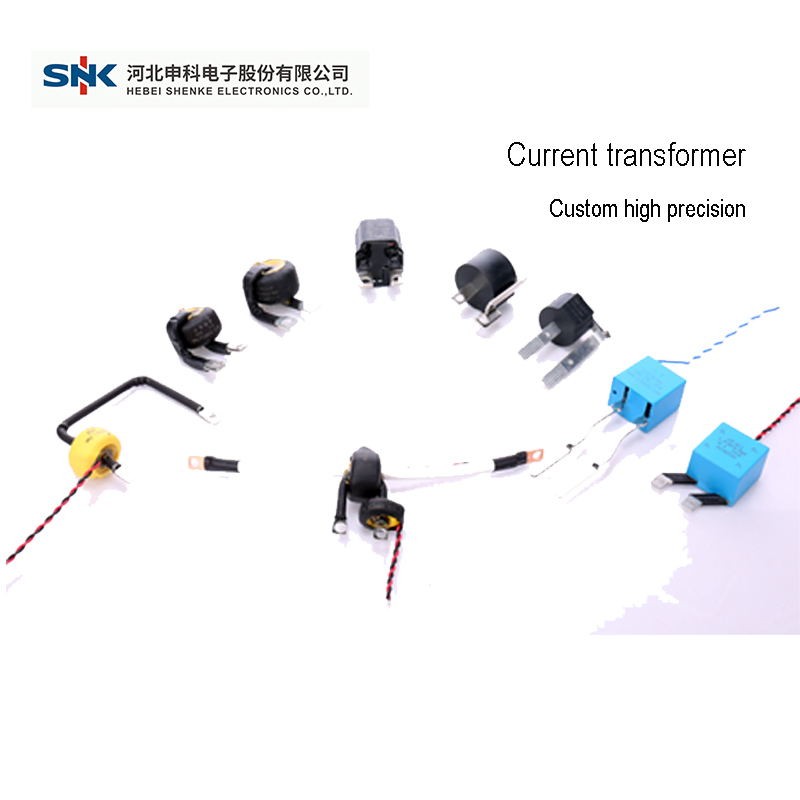

- Miniature Pin TypeCombined TypeHigh PrecisionCustomized
Applications
Primary Applications
- Power monitoring systems
- Industrial automation
- Energy management systems
- Electronic devices
- Electrical power transmission
- Distribution control systems
Physical Characteristics
Available Colors
BlackBlue
- Mounting Style
- Pin type for PCB or electronic integration
Performance Features
- Linearity
- Excellent linearity across measurement range
