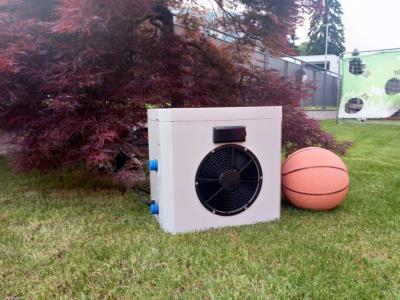

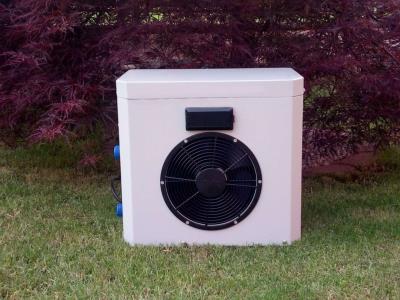

Mini Swimming Pool Heat Pump
This mini swimming pool heat pump features flow activation and an energy-saving mode. It is compact and easy to install for new or existing pools, with precise digital temperature control.
Technical Specifications
Overview
Compact Efficient Heating
This mini swimming pool heat pump is designed for small to medium-sized above-ground or in-ground pools and spas up to 20m³. It features a corrosion-resistant titanium heat exchanger and plug-and-play functionality for quick, easy installation. With digital temperature control and energy-saving modes, it ensures your pool water remains at your desired temperature throughout the swimming season.
Key Features
Compliance
CERoHS
- Core Features
- Flow ActivationEnergy Saving ModeDigital Temperature ControlPlug and PlayBuilt-in RCDHeating & Cooling
Performance Metrics
Heating Capacity & COP
2,950 W
Capacity (Air 26°C / Water 26°C)
5.3
COP (Air 26°C / Water 26°C)
2,240 W
Capacity (Air 15°C / Water 26°C)
4.31
COP (Air 15°C / Water 26°C)
Technical Specifications
Electrical Requirements
| Parameter | Value |
|---|---|
| Voltage | 220-240V~/1Ph/50Hz |
| Max Power | 900 W |
| Max Current | 4.02 A |
Physical Dimensions & Weight
- Unit Dimensions: 420 x 280 x 370 mm
- Packaging Dimensions: 450 x 320 x 430 mm
- Net Weight: 19 kg
- Gross Weight: 21 kg
Operational Range
- Heating Temperature Range: 15°C - 40°C
- Ambient Operating Range: -5°C - 43°C
- Flow Rate: 1.2 m³/h
- Waterproof Rating: IPX4
Noise Levels
53 dB(A)
Noise at 1m
33 dB(A)
Noise at 10m
