Mini-Split Air Conditioner Wall Mounting Brackets with Vibration Dampers

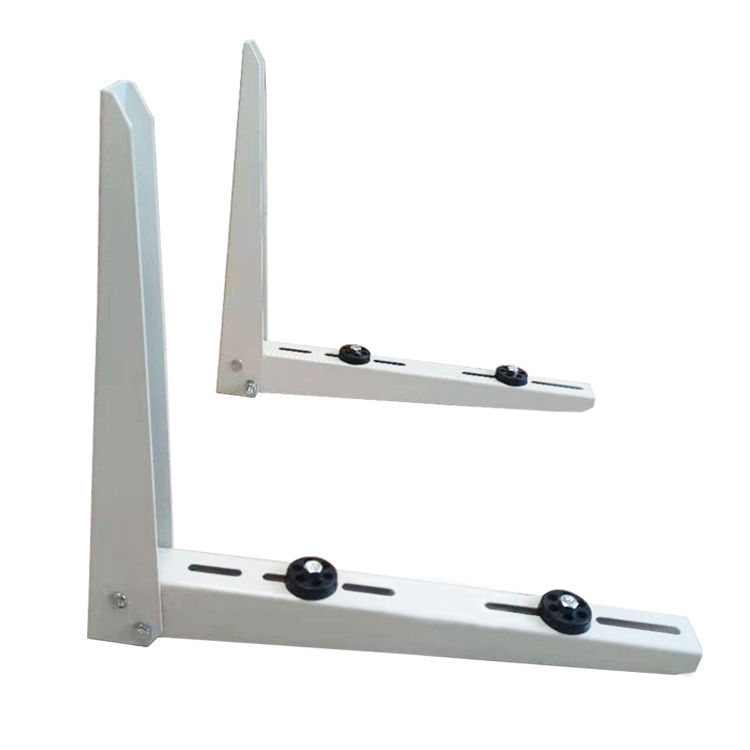

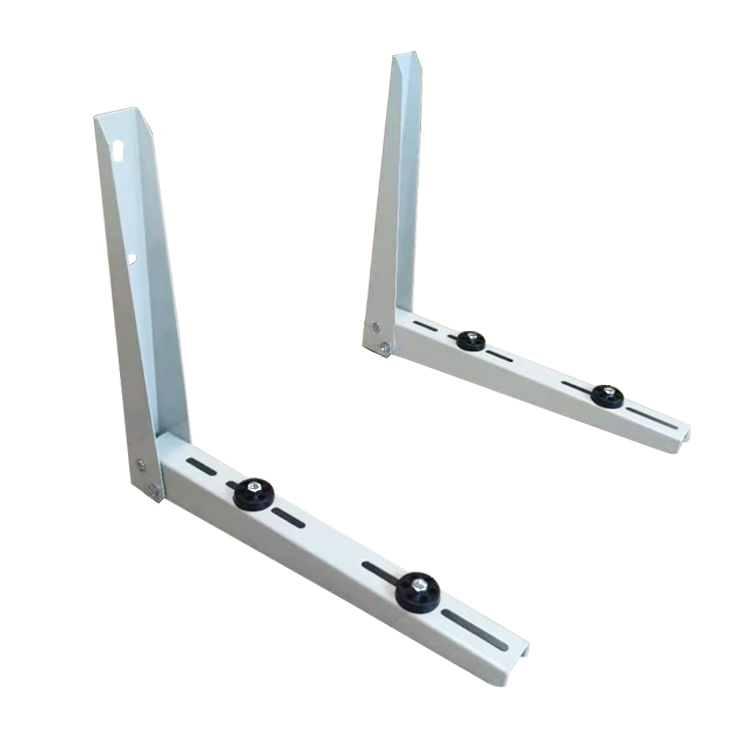

These L-shaped brackets provide a stable platform for mounting mini-split air conditioner outdoor units to exterior walls. The brackets include rubber vibration dampers to minimize noise and prevent damage.
Technical Specifications
Product Overview
Heavy-Duty Mini-Split Mounting System
These L-shaped wall mounting brackets provide a secure, stable, and durable platform for mini-split air conditioner outdoor units. Engineered for versatility and performance, the system includes integrated rubber vibration dampers to minimize noise transfer and protect exterior walls. The thoughtful design features a rivet-connected folding mechanism for convenient transport and bolt-fixed assembly for reliable, long-term installation.
Technical Specifications
Model Specifications
| Model | Bottom Bar (mm) | Vertical Bar (mm) | Thickness (mm) | Net Weight (kg) | Loading (kg) |
|---|---|---|---|---|---|
| F450 | 450 | 400 | 1.5 | 2.4 | 100 |
| F500 | 500 | 400 | 1.5 | 2.6 | 100 |
| F550 | 550 | 400 | 2 | 3.6 | 200 |
| F650 | 650 | 450 | 2 | 4.2 | 200 |
Material & Construction
- Material Composition
- Cold-rolled steelZinc-coated steelEpoxy resin coating
- Finish Color
- RAL 9003
Features
Installation Features

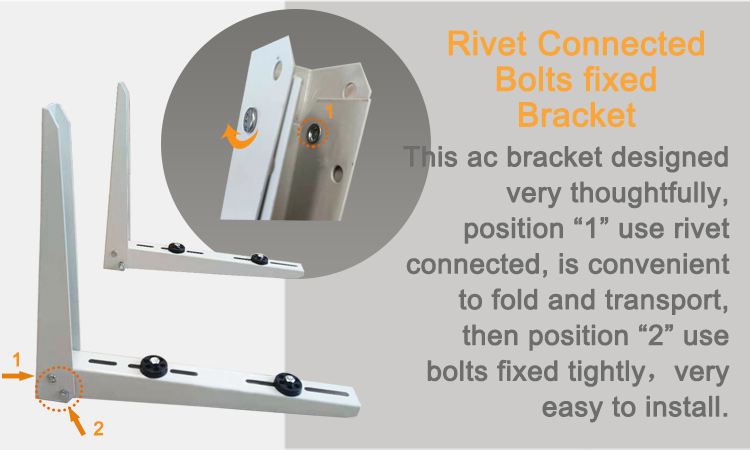

- Rivet-connected folding design for transport
- Bolt-fixed assembly for secure mounting

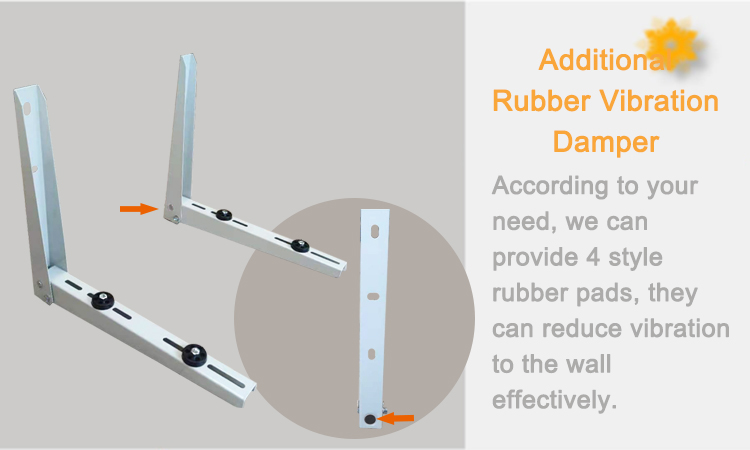

- Rubber vibration dampers included
- Adjustable support arms
Packaging & Logistics
Packaging Details
- Individual carton: 500 x 80 x 60 mm
- Outer carton: 540 x 270 x 140 mm (6 sets per carton)
- Pallet dimensions: 1200 x 1000 x 800 mm
- Quantity per pallet: 720 sets
