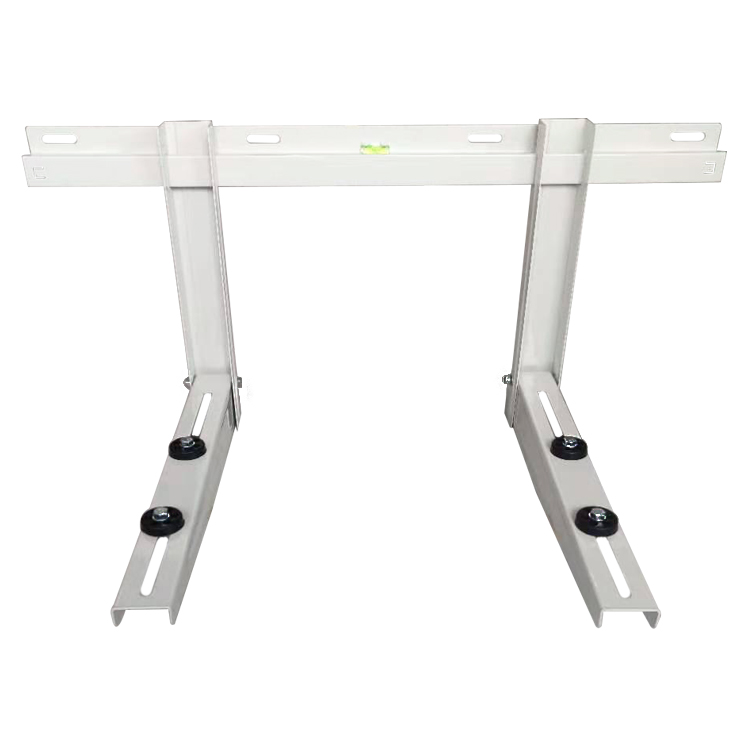

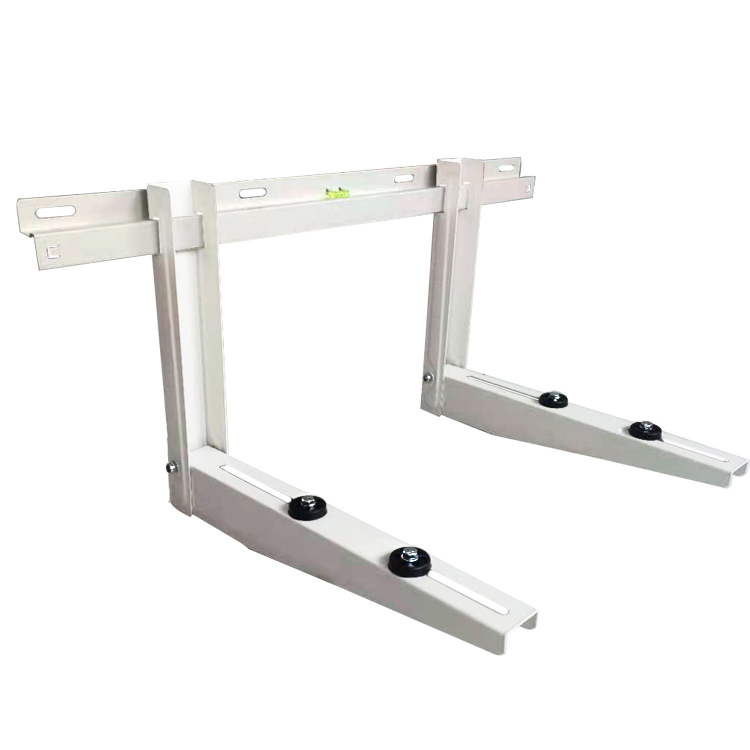

Mini-Split Air Conditioner Wall Mounting Bracket
This heavy-duty metal bracket provides secure wall mounting for mini-split air conditioner outdoor units. It features vibration-dampening rubber pads and an adjustable design for optimal positioning and leveling.
Technical Specifications
Overview

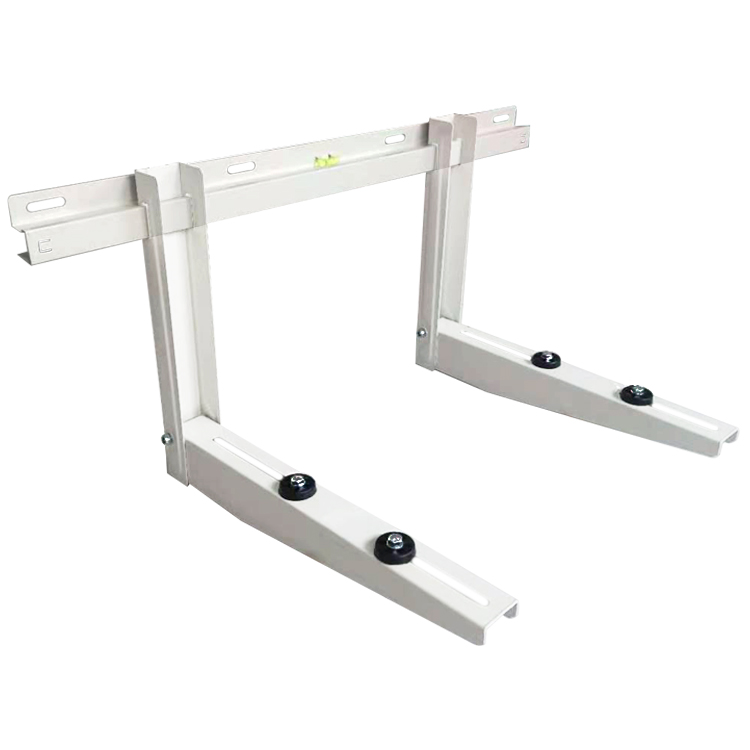

Heavy-Duty Mini-Split Support

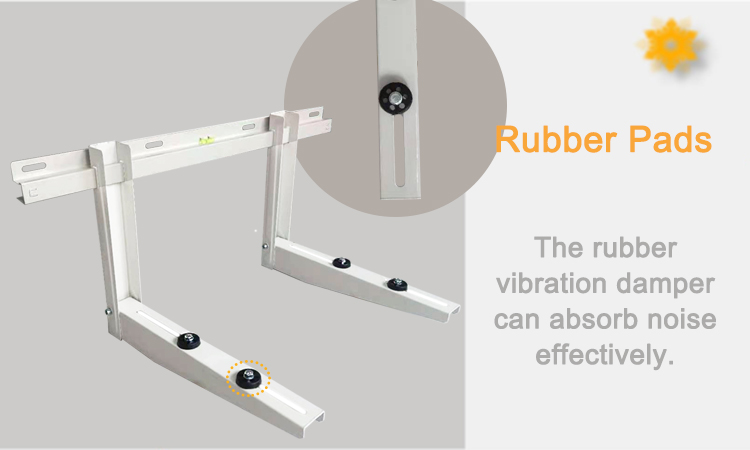

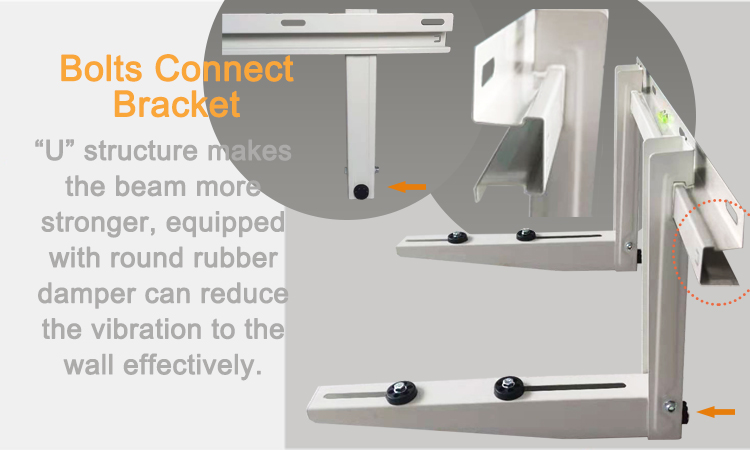

This heavy-duty wall mounting bracket is engineered for secure and reliable installation of mini-split air conditioner outdoor units. Featuring a reinforced "U" structure, the bracket provides superior strength and stability for your equipment. Integrated rubber dampers effectively minimize vibration and noise transmission to the wall, ensuring quieter operation. With adjustable leveling features and a corrosion-resistant finish, it offers a durable and professional solution for both residential and commercial HVAC installations.
Technical Specifications
Installation Features

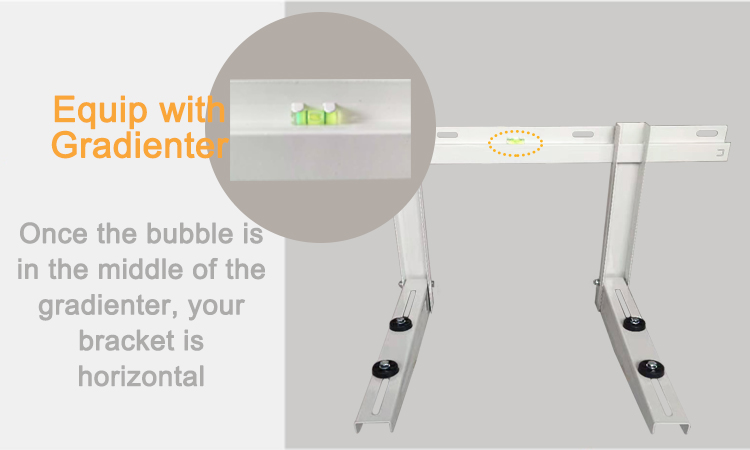

Integrated gradienterAdjustable M8*42 boltsVibration-dampening rubber padsPre-drilled holes
Model Specifications
| Model | Bottom Bar (mm) | Cross Bar (mm) | Load Capacity (kg) | Net Weight (kg) |
|---|---|---|---|---|
| HBF-400 | 400 | 800 | 100 | 3.7 |
| HBF-450 | 450 | 800 | 100 | 4 |
| HBF-550 | 550 | 800 | 200 | 5.5 |
| HBF-600 | 600 | 1,000 | 200 | 6 |
Packaging and Logistics
- Individual carton: 840*70*60mm
- Outer carton: 870*270*160mm (4 sets)
- Pallet: 1150*1150*2100mm (260 sets)
- Pallet Total Weight: 1040kg
- Material and Treatment
- Zinc-coated steelEpoxy resin polyester treatmentCorrosion-resistant
Key Performance Metrics
Performance Highlights
200 kg
Max Load Capacity
2 pcs
Adjustable Bolts
9,001 RAL
Color Standard
