Technical Specifications
Overview
Precision Micro Molding Solution

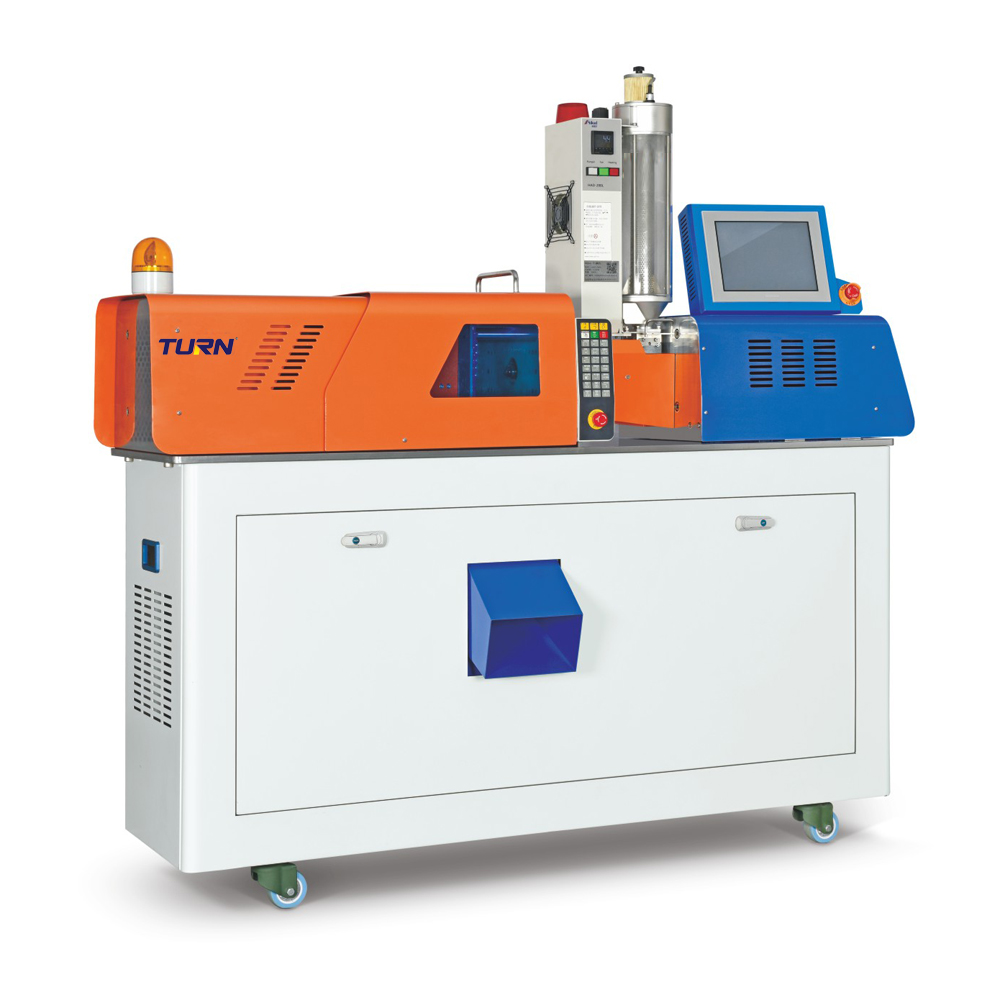

This all-electric micro plastic injection molding machine is engineered for high-precision prototyping and small-scale manufacturing. Designed by polymer molding experts, it utilizes servo motors instead of hydraulic systems to achieve exceptional accuracy, energy efficiency, and a compact footprint. It is ideal for industries requiring tight tolerances, such as medical device manufacturing and electronics, offering intelligent connectivity and rapid cycle times.
Key Features
- Key Advantages
- All-Electric Servo DriveCompact DesignEnergy-SavingHigh PrecisionIntelligent Online ControlLow Noise Operation
Performance Metrics
Precision Capabilities
0.005 mm
Clamping Accuracy
0.005 mm
Ejection Accuracy
0.01 g
Injection Weight Tolerance
Speed Performance
62.5 μs
Min. Control Period
400 mm/s
Max. Injection Speed
Technical Specifications
Model Comparison

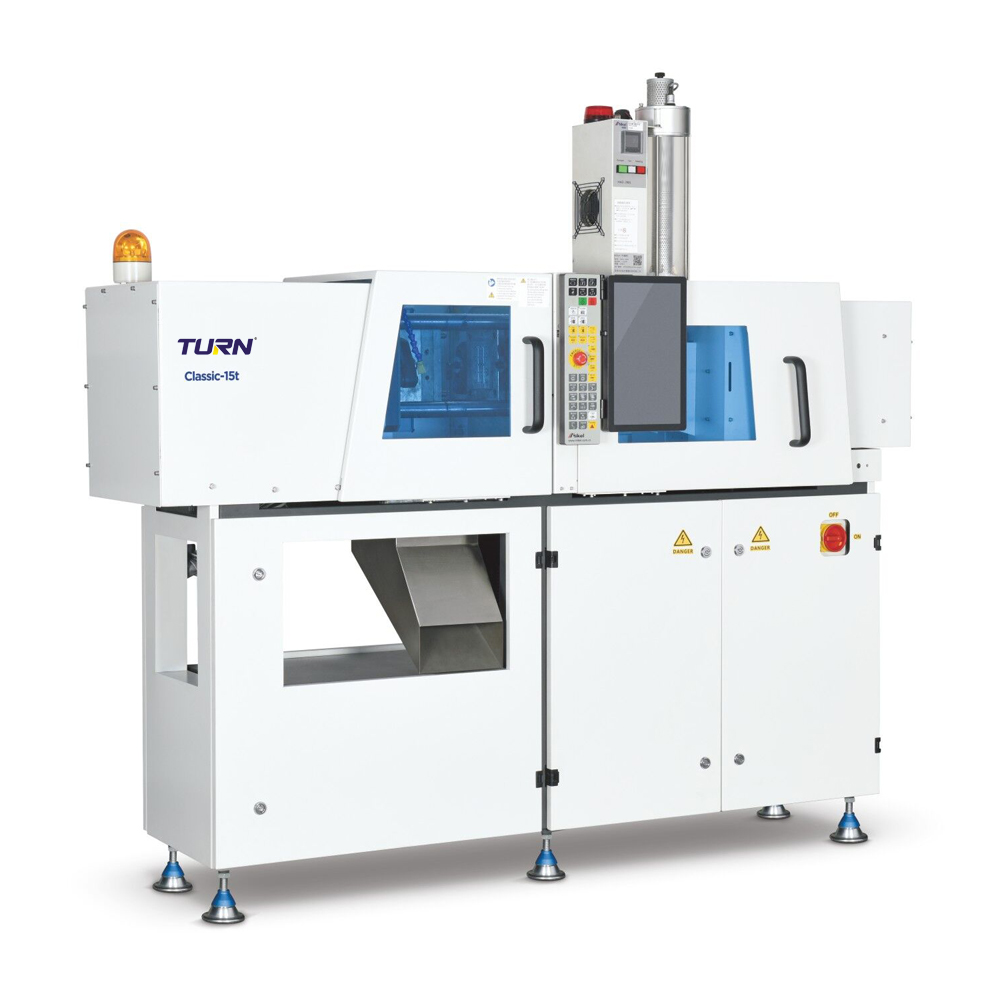

| Specification | XBOS 8.5T | Classic 15T |
|---|---|---|
| Clamp Tonnage (Kn) | 86 | 163 |
| Shot Volume (cm³) | 12 | 18 |
| Injection Pressure (Mpa) | 174 | 216 |
| Total Power (kw) | 3.5 | 5.5 |
| Energy Consumption (kw/h) | 0.7 | 0.9 |
| Weight (Kg) | 380 | 660 |
- Power Supply
- 220V 50/60Hz
Connectivity

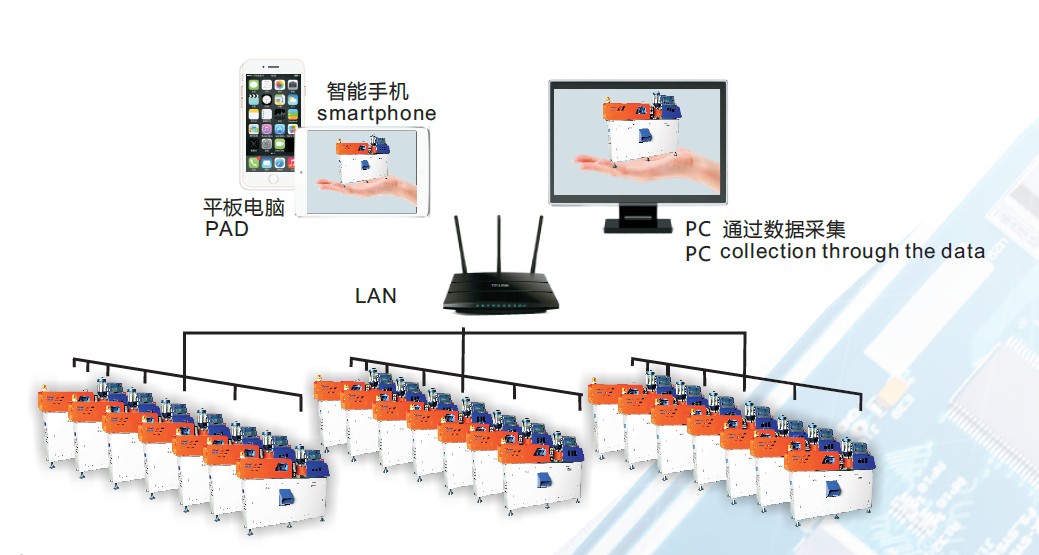

Intelligent Connectivity
- Online remote control capability
- Data collection via LAN
- Compatible with Smartphone, Tablet (PAD), and PC
