Technical Specifications
Overview
Precision Metalworking Lathe

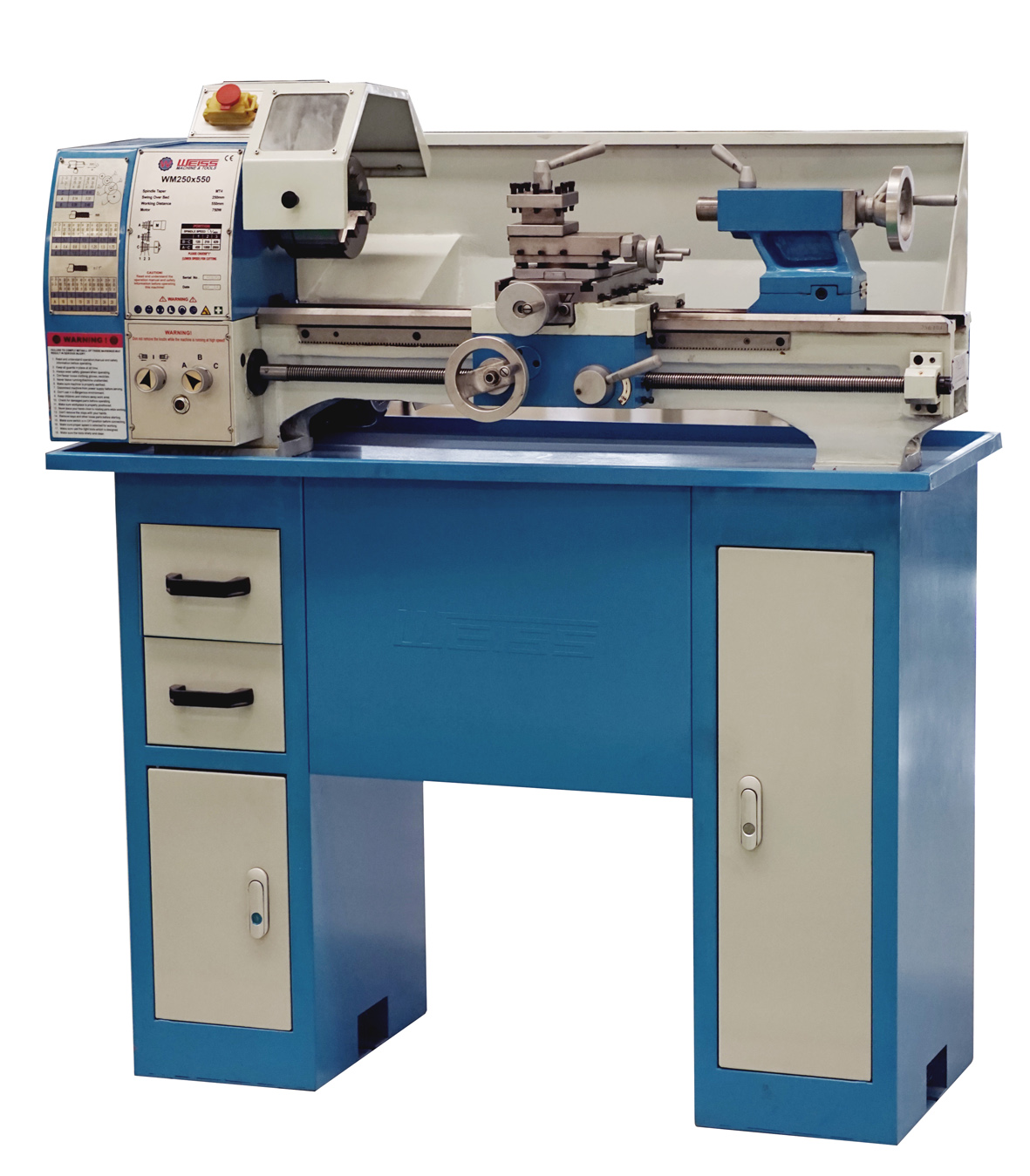

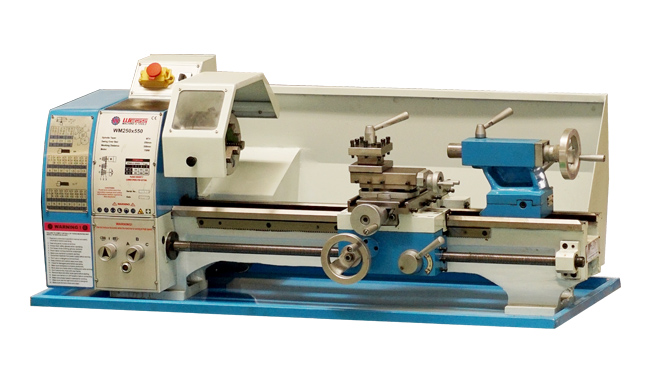

The WM250 is a precision-engineered metalworking lathe designed for professional turning, facing, and threading operations. Featuring a V-way hardened and ground bed, this machine ensures exceptional stability and accuracy for high-quality machining. With versatile capabilities like taper turning and comprehensive threading options, it is an ideal solution for small-to-medium workshop tasks.
Key Features
Machine Highlights
- Super-audio induction hardened and precision-ground bed
- MT4 spindle for higher capacity
- Adjustable gibs on all slideways
- T-slotted cross slide for versatile tooling
- Offset tailstock functionality for taper cutting
- Left and right-hand thread cutting capability
Technical Specifications
Capacity Metrics
250 mm
Swing Over Bed
550 mm
Distance Between Centers
750 W
Motor Power
Taper Specifications
| Component | Taper Size |
|---|---|
| Spindle | MT4 |
| Tailstock | MT3 |
Certifications & Safety
- Safety Equipment
- Chuck GuardEmergency Stop Button
