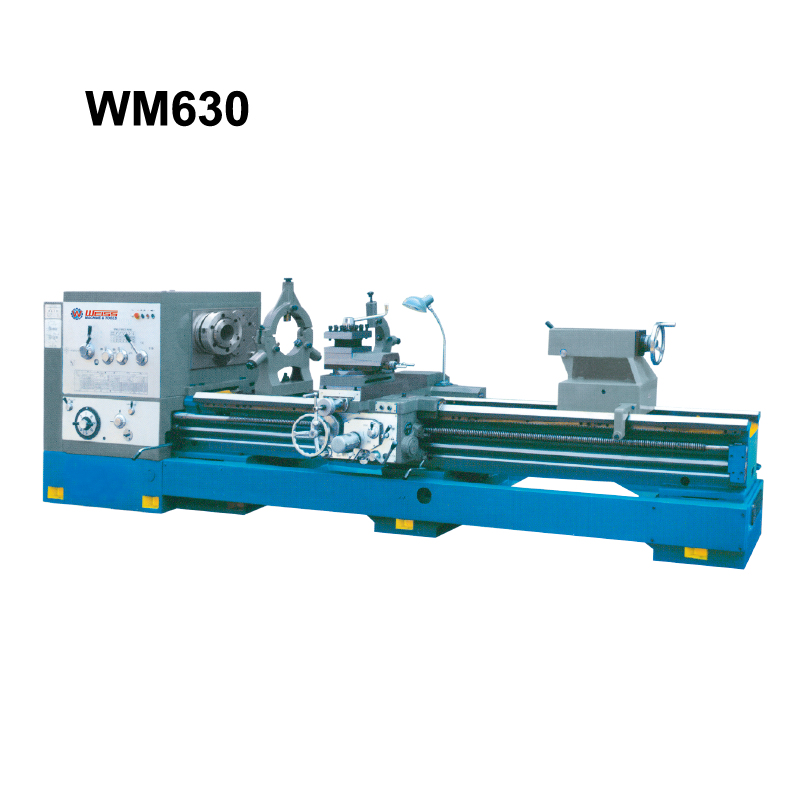

Metalworking Lathe
This precision metalworking lathe is designed for turning, facing, threading, and drilling operations. It is constructed with a rigid cast iron bed for stability and vibration dampening.
Technical Specifications
Overview
Precision Metalworking Lathe
This precision metalworking lathe is engineered for a wide range of turning, facing, threading, and drilling operations. Built with a rigid cast iron bed to ensure stability and vibration dampening, it features a geared headstock for precise variable speed control. Equipped with a quick-change tool post and a robust tailstock, this machine provides the versatility and accuracy required for professional machining tasks.
Performance & Capacity
- Swing Over Bed
- 630 mm
- Swing Over Gap
- 800 mm
- Width of Bed
- 550 mm
Spindle & Drive
Main Motor Power
11 kW
Main Motor
0.09 kW
Coolant Pump
- Spindle Bore
- 105 mm
- Spindle Speed Range
- 14-750 rpm (18 steps)
Threading & Feeding
- Supported Thread Types
- MetricInchModuleDiametrical
- Rapid Feed Rate
- 4 m/min
Tailstock & Travel
Slide Travel Specifications
| Component | Travel |
|---|---|
| Top Slide | 240 mm |
| Cross Slide | 420 mm |
- Tailstock Quill Travel
- 205 mm
- Tailstock Quill Taper
- MT6
