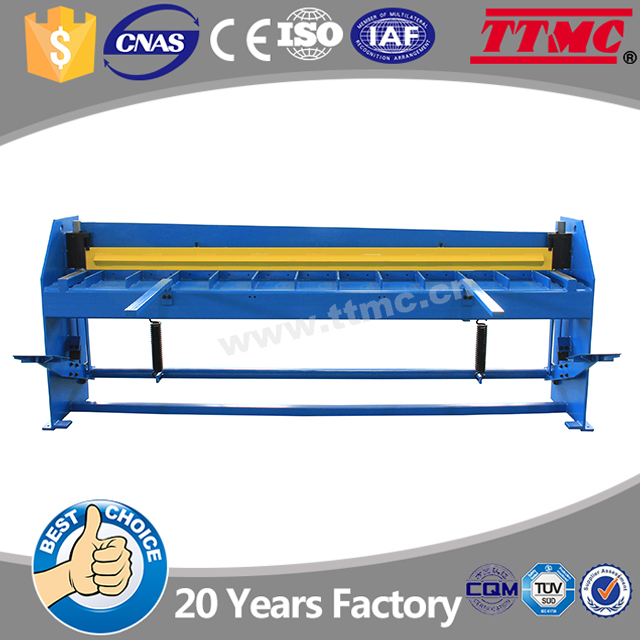

Metal Sheet Shearing Machine
This heavy-duty shearing machine is designed for precise and efficient metal cutting. It features a robust frame for stability and durability, ensuring consistent performance.
Technical Specifications
Overview
Industrial Metal Shearing Solution
This high-capacity metal sheet shearing machine is engineered with robust steel-fabrication construction to ensure durability in demanding industrial environments. It features an adjustable blade gap for precise cutting across thin materials and includes a spring-loaded clamp beam for secure handling. The unit comes equipped with front sheet supports and an integrated backgauge for increased operational efficiency.
Technical Specifications
Cutting Performance
2,500 mm
Cutting Width
1.2 mm
Cutting Thickness
800 mm
Back Gauge Range
Model Details
- Item No: 372016
- Model: Q01-1.2x2500B
- Features: Spring-loaded material clamp beam
- Maintenance: Greasing and oiling points on bearing surfaces
- Accessories: Front sheet supports and backgauge
Logistics
Dimensions & Weight
| Metric | Value |
|---|---|
| Packing Size | 300x60x120 cm |
| Net Weight | 740 kg |
| Gross Weight | 940 kg |
Certifications
- Standards & Compliance
- CEISO
