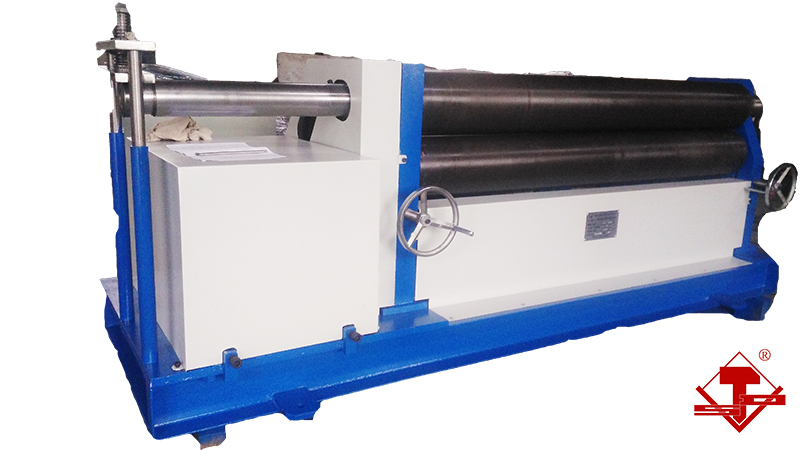

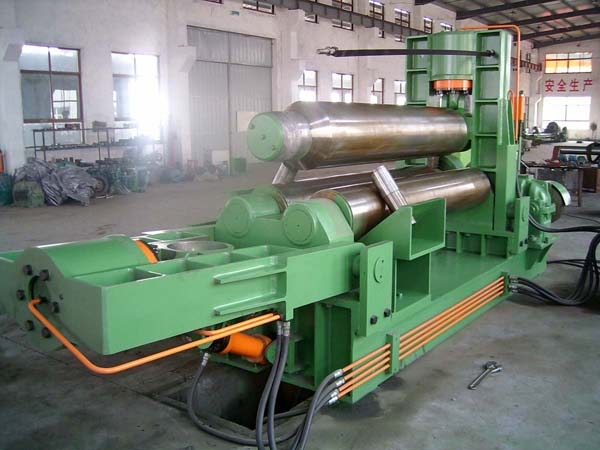

Metal Plate Bending Roller
This plate rolling machine is designed for forming metal plates into cylindrical or conical shapes. It features three heavy-duty rollers arranged in a pyramid or linear configuration, allowing for precise control over the bending process.
Technical Specifications
Overview
High-Performance Plate Rolling Solution
This industrial-grade plate rolling machine is designed for efficient, high-precision metal forming. It features advanced hydraulic transmission for both vertical and horizontal roller movement, allowing for pre-bending and roll forming in a single pass without the need to turn the plate. With PLC control and automatic leveling, it offers exceptional accuracy and reliability for heavy-duty fabrication tasks.
Technical Specifications
Key Performance Metrics
50 mm
Max Rolling Thickness
40 mm
Max Prebending Thickness
3,000 mm
Max Rolling Length
4 m/min
Rolling Speed
Roller Dimensions
| Component | Dimension |
|---|---|
| Top Roll Diameter | 600 mm |
| Bottom Roll Diameter | 340 mm |
| Center Distance (Bottom Rollers) | 610 mm |
Power Specifications
- Main Motor: 55 kW
- Hydraulic Motor: 22 kW
- Movable Motor: 11 kW
Features
Material Construction
- 42CrMo hardened upper roll
- ASTM 1045 hardened lower roll
Optional Add-ons
Conical Bending Device
- Core Capabilities
- Pre-bending FunctionHydraulic TransmissionPLC ControlAutomatic LevelingHydraulic Drop-endSafety Interlock
