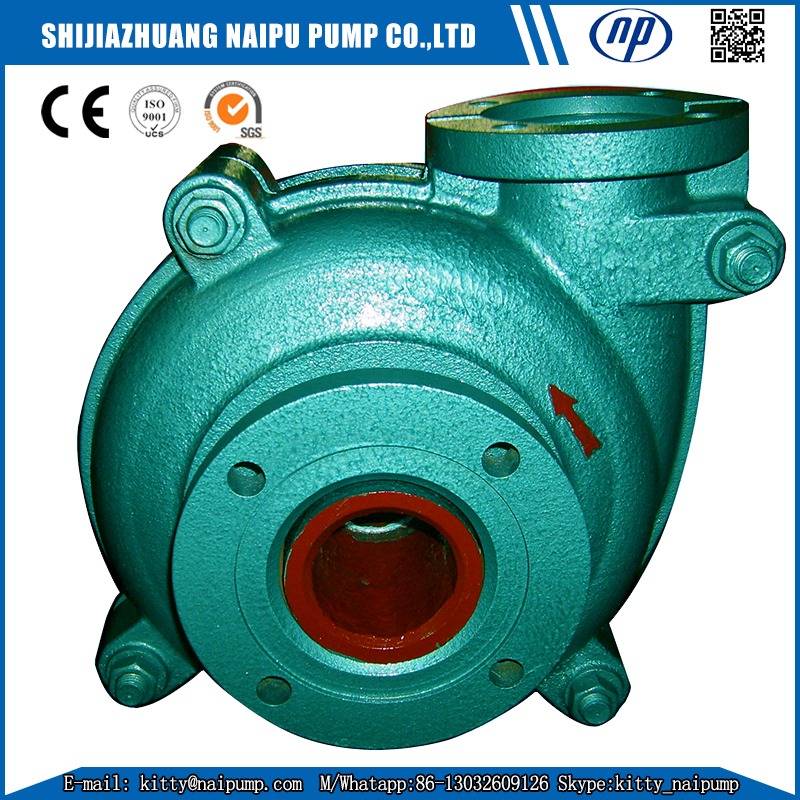

Metal-Lined Slurry Pump with High Chrome Liner
This slurry pump features a metal liner and high chrome A05 wet end parts for enhanced durability. It is designed to handle abrasive and corrosive slurries in various industrial applications.
Technical Specifications
Overview
Heavy-Duty Slurry Pumping Solution
These centrifugal slurry pumps are engineered for continuous, heavy-duty operation in environments handling highly abrasive and corrosive slurries. Featuring a robust, interchangeable design, they utilize replaceable abrasion-resistant metal or moulded elastomer casting liners and impellers. This modular construction ensures long service life and simplifies maintenance across various demanding industrial processes.
Applications
- Typical Applications
- Minerals Flotation ProcessingElectric Factory Coal PreparationCoal WashingChemical Medium ProcessingEffluent HandlingSand And Gravel Handling
Certifications
Quality Standards
CEISO 9001SGS
Performance Data
Technical Performance Parameters
| Pump Type | Max Power (kW) | Max Efficiency (%) | Impeller Diameter (mm) |
|---|---|---|---|
| 1.5X1-NP-AH | 15 | 40 | 152 |
| 2X1.5-NP-AH | 15 | 45 | 184 |
| 3X2-NP-AH | 30 | 55 | 214 |
| 4X3-NP-AH | 30 | 71 | 245 |
| 6X4-NP-AH | 60 | 65 | 365 |
| 8X6-NP-AH | 300 | 72 | 510 |
| 10X8-NP-AH | 560 | 71 | 686 |
| 12X10-NP-AH | 560 | 82 | 762 |
| 14X12-NP-AH | 560 | 77 | 965 |
| 16X14-NP-AH | 1,200 | 79 | 1,067 |
| 18X16-NP-AH | 1,200 | 85 | 1,370 |
Design Features
- Number of Impeller Vanes
- 5
