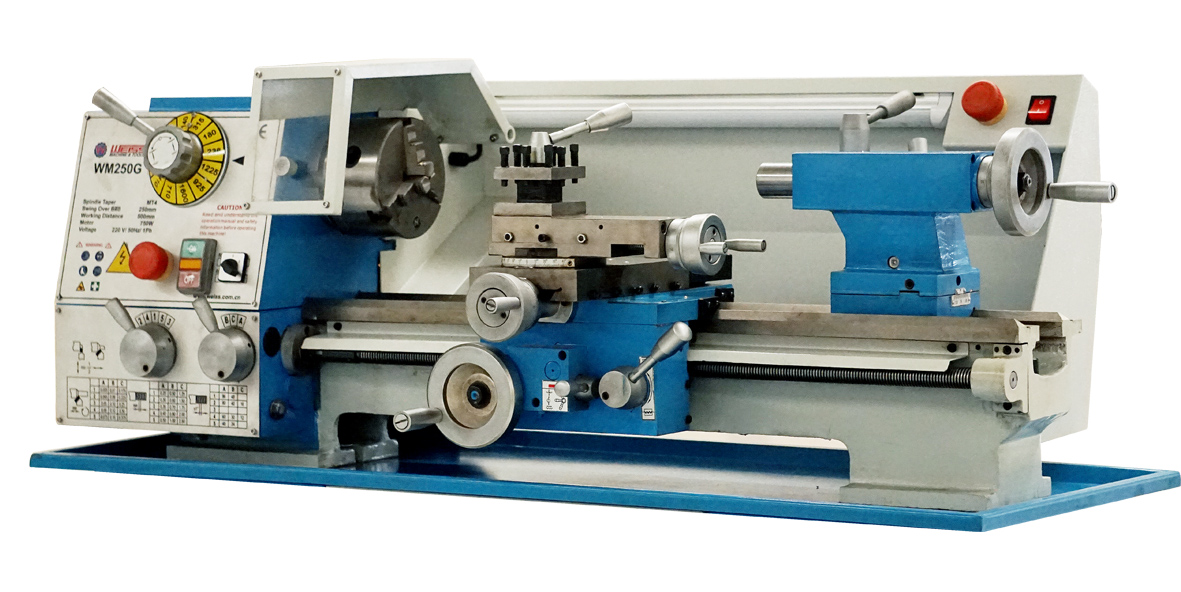

Metal Lathe 250mm Swing Over Bed
This metal lathe is designed for economical and versatile metalworking. It features an induction-hardened bedway, a geared headstock for quick speed changes, and a tailstock that can be offset for taper turning.
Technical Specifications
Product Overview
Precision Metalworking Performance
This metal lathe features a 250mm swing over bed and a 500mm working distance, making it an ideal choice for a variety of metalworking applications. Engineered with a rigid frame and induction-hardened bedways, it minimizes vibration to ensure high machining accuracy for turning, facing, and threading operations. The inclusion of a geared headstock and a quick-change gearbox provides users with the versatility and control required for professional-grade results in compact spaces.
Technical Specifications
Performance Metrics
250 mm
Swing Over Bed
500 mm
Working Distance
38 mm
Spindle Bore
- Power Requirements
- 750W Motor, 220V 50Hz 1Ph
- Spindle Taper
- MT4
Features
Core Features
- Induction hardened and ground bedway
- Geared headstock for quick speed changes
- Power longitudinal feed for threading
- Enclosed quick-change gear box
- Adjustable gibs on all slides
- Tailstock offset capability for taper turning
Compliance
Certification Marks
CE
