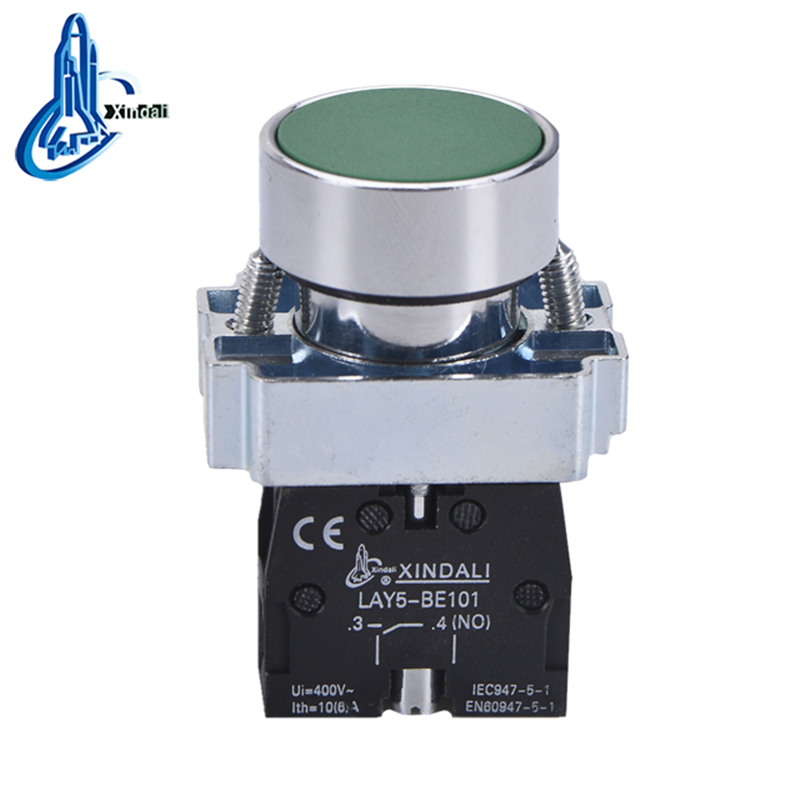

Metal Flush Green Spring Return Push Button for Elevators
This metal push button is designed for elevator control panels. It features a flush green button with a spring return mechanism.
Technical Specifications
Product Overview
Professional Elevator Control Button
This flush-mounted green push button is engineered for reliable performance in elevator control panels and industrial circuit applications. Featuring a durable metal construction and a responsive spring-return mechanism, it provides momentary contact operation suitable for demanding environments. The unit is fully compliant with international safety standards, ensuring long-term reliability for signaling and interlocking tasks.
Technical Specifications
Mechanical Life
1,000,000 cycles
Push Button
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Push Button
250,000 cycles
Selector Switch
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min

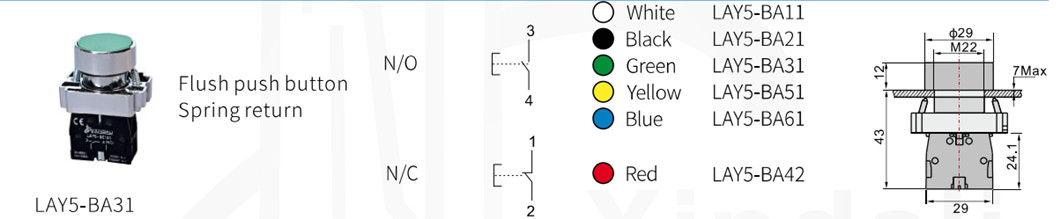

Design & Dimensions
Mounting Dimensions
| Feature | Measurement |
|---|---|
| Mounting Hole Diameter | φ22mm |
| Overall Diameter | φ29mm |
| Total Height | 43mm |
| Max Panel Thickness | 7mm |
| Contact Block Height | 24.1mm |
Available Colors
- White (LAY5-BA11)
- Black (LAY5-BA21)
- Green (LAY5-BA31)
- Yellow (LAY5-BA51)
- Blue (LAY5-BA61)
- Red (LAY5-BA42)
Compliance
Certifications
CEISO 9001RoHSUL
- Standards
- GB/T14048.1IEC60947-5-1
