Elevator Position Indicator Push Button Switch
This 2-position pushbutton switch is designed for elevator position indication. It is used for controlling signal and interlocking purposes in AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.
Technical Specifications
Product Overview
Professional Elevator Control Solutions
This 2-position pushbutton switch is engineered for high-performance elevator control and industrial signaling applications. Featuring durable zinc alloy and anti-flame plastic construction, it offers exceptional reliability for circuits up to 660V AC or 400V DC. Designed to meet stringent international electrical standards, this switch ensures safe and responsive operation in demanding environments.
Electrical Specifications
- Rated Operating Voltage
- Up to 660V AC / 400V DC
- Rated Insulation Voltage
- 600 V
- Short-Circuit Protection
- 10A fuse type (IEC269-1 compliant)
Environment & Durability
Protection Rating
IP40IP54IP65IP66IP67IP68
Mechanical Life Cycles
3,000,000 Cycles
Standard Button
300,000 Cycles

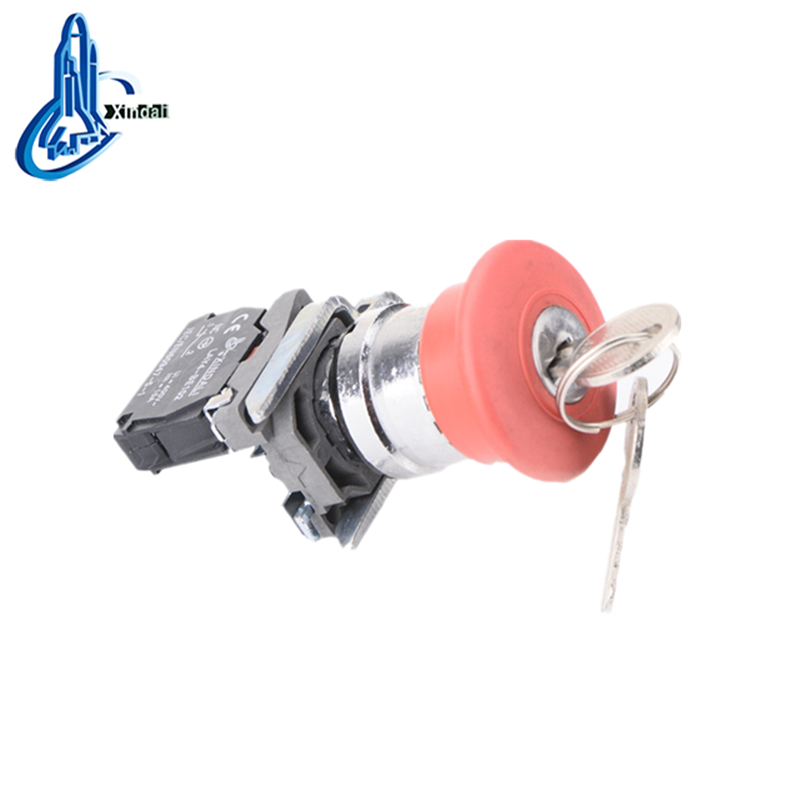

Emergency Button
- Operating Temperature
- -5°C to +55°C
Standards & Certification
Standards Compliance
- IEC 60947-5-1
- GB/T 14048.1
- GB 14048.5
- Certifications
- CEISO 9001RoHSUL
